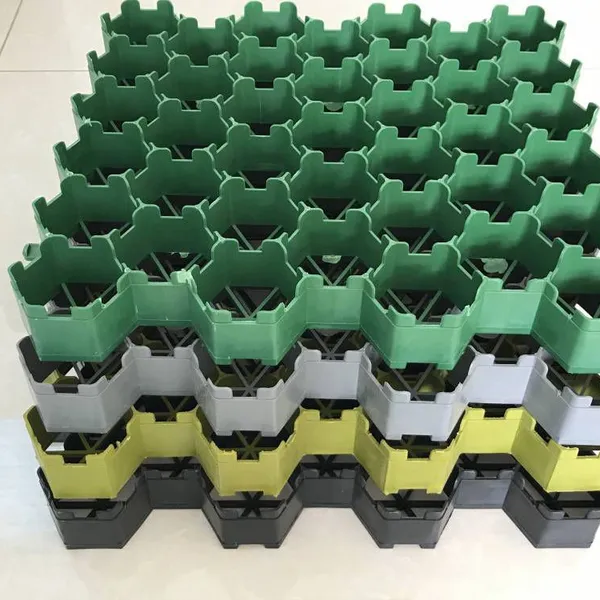

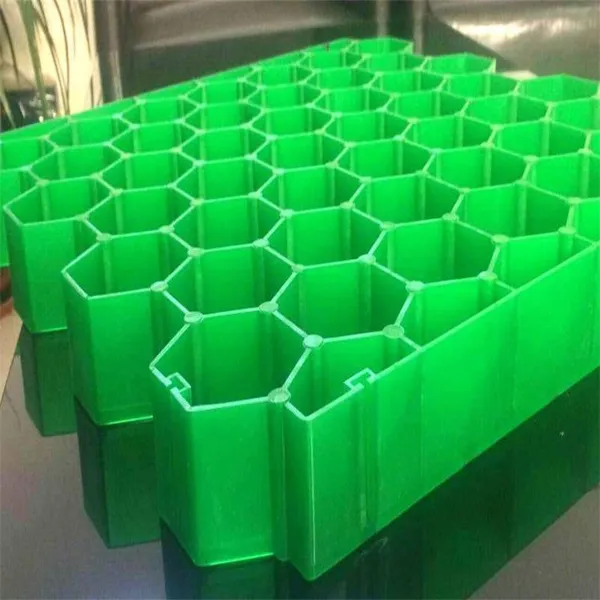

In the process of urbanization, the contradiction between the greening and load-bearing requirements in fire lanes and parking lot areas has become increasingly prominent. Traditional hardened ground leads to an increase in rainwater runoff and an intensification of the heat island effect, while ordinary lawns are difficult to withstand vehicle rolling. Jiamei New Materials Co., Ltd., as a professional manufacturer with more than a decade of experience in the drainage system (registered capital of 50 million, with 25 production lines), has innovatively developed a 7 - centimeter parking lot grass planting grid to address this pain point. It achieves a balance between ecology and function through the "blockchain" intelligent drainage technology.
This product uses a coordinated design of polymer composite materials and a siphon drainage system. While meeting the load - bearing requirements of fire lanes, it achieves:
- Zero - slope drainage: The unique honeycomb structure accelerates rainwater infiltration
- Compression protection: The 7cm rib design disperses the wheel load
- Ecological restoration: A greening rate of over 60% meets the standards of a sponge city
| Technical parameters | Indicator value | Test standard | Application scenario |
| Single grid size | 40×40cm | GB/T 1040 | Standard parking space |
| Vertical bearing capacity | ≥35 tons/m² | GB/T 5352 | Fire lane |
| Water permeability | 1.5×10⁻²cm/s | JTGE20 | Rainstorm area |
| Grass planting thickness | 7cm±0.5 | CJ/T 340 | Root development |
The advantages of the flat - mouth design are reflected in three aspects:
- Using a modular snap - fit structure, the installation efficiency is increased by 40%.
- The edge shear strength reaches 12MPa, which avoids misalignment caused by vehicle rolling.
- It supports mechanical paving, and a 2000㎡ site can be completed within 1 day.
The reliability of the product is guaranteed by 22 utility model patents (patent number ZL2020210***** etc.), and it forms a complete system with the HXC siphon drainage channel. Verified by the project, in a commercial complex project in Zhengzhou, this grass planting grid system reduces the leakage rate of the underground garage roof by 92% and the greening maintenance cost by 65%.
Jiamei New Materials Co., Ltd. holds a second - level construction qualification for waterproofing, anti - corrosion and thermal insulation (certificate number: *****), and an annual production capacity of 50 million square meters ensures stable supply. It is recommended to adopt a layered construction plan for the fire - fighting access project: lay the siphon drainage channel on the lower layer → backfill lightweight soil in the middle layer → install the grass planting grid on the upper layer. The specific selection needs to consider the local rainfall intensity and the frequency of fire trucks entering and exiting. Our technical team can provide:
- Free load calculation service
- Three - dimensional drainage simulation demonstration
- Customized installation guidance
FAQ:
Q: Can it withstand the frequent rolling of heavy fire trucks?
A: By adding glass fiber reinforcement materials, the product has been tested under a dynamic load of 50 tons/m² for 2000 times (refer to EN12633 standard), with a deformation rate of
Q: Is it applicable in the frost - heave areas in the north?
A: It is made of cold - resistant modified polypropylene (PP) material, and the impact strength reaches 45kJ/m² at - 30℃. In the winter field test in Harbin, the structural integrity still reaches 98% after 50 freeze - thaw cycles, but it is necessary to ensure smooth drainage of the base layer to prevent icing.
Q: How to prevent slipping when the slope is greater than 5%?
A: It can be solved through two solutions: 1) Add anti - slip patterns on the surface of the grid body (friction coefficient ≥0.6); 2) Fill in ceramsite with a diameter of 3 - 5mm to enhance grip. When the slope exceeds 8%, it is necessary to use retaining soil modules.
Q: Are there any restrictions on grass planting varieties?
A: It is recommended to use creeping grass species such as Cynodon dactylon and Zoysia japonica. The root depth should be controlled at 5 - 6cm. Avoid using upright rhizome grass species such as Festuca arundinacea to prevent them from penetrating the drainage layer.
Q: How to arrange the cleaning and maintenance cycle?
A: It is recommended to carry out the following every quarter: 1) Flush the pores with a high-pressure water gun (pressure ≤5MPa); 2) Vacuum the accumulated dust; 3) Supplement nutrient soil with an organic matter content of 30%. Just clean up the fallen leaves in time in daily life.
Q: What are the advantages compared with traditional concrete grass planting bricks?
A: The weight is reduced by 62% (2.1kg per piece), the water permeability is increased by 8 times, and the turf coverage area is increased by 35%. According to LCA analysis, the carbon footprint is reduced by 42 tons per 10,000 square meters (ISO14040 standard).
