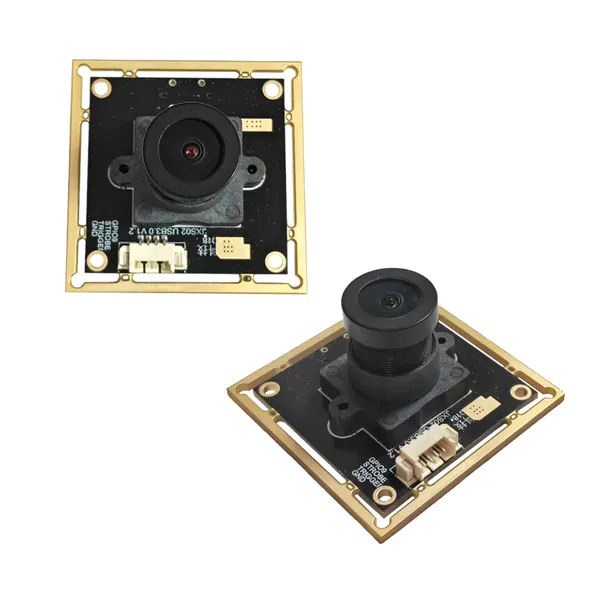

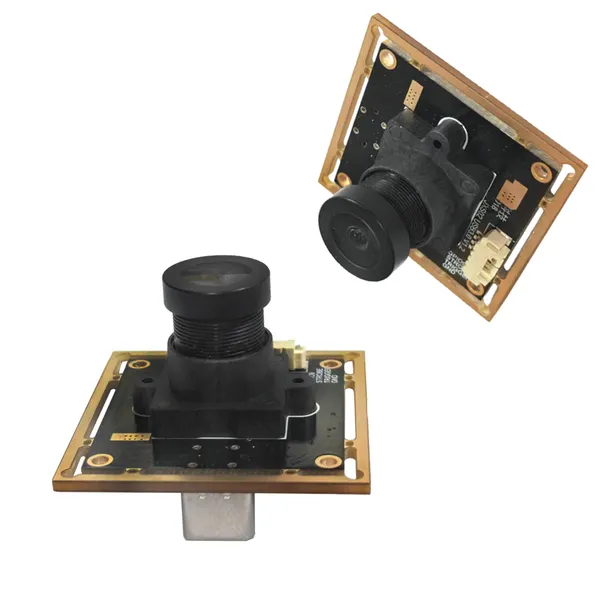

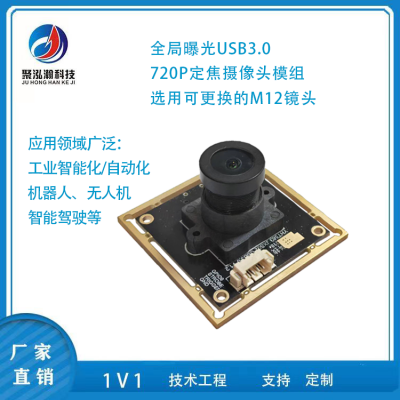

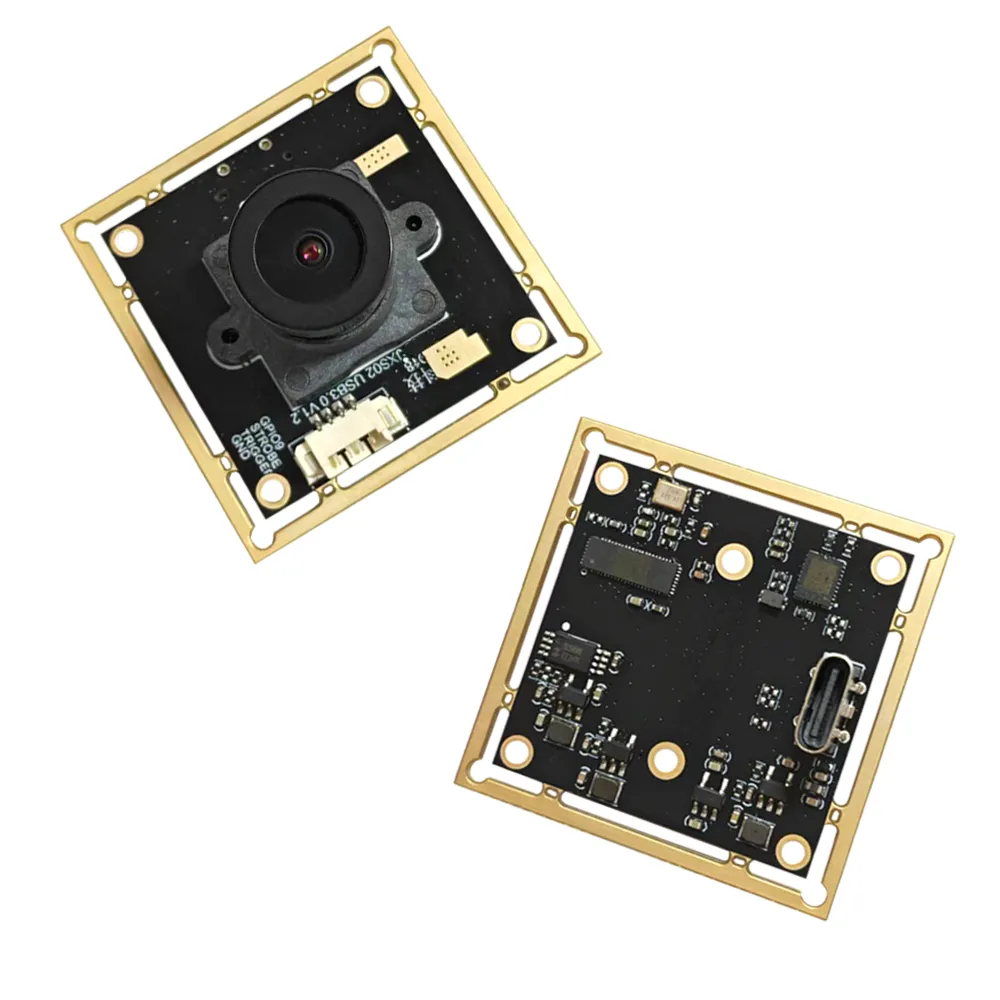

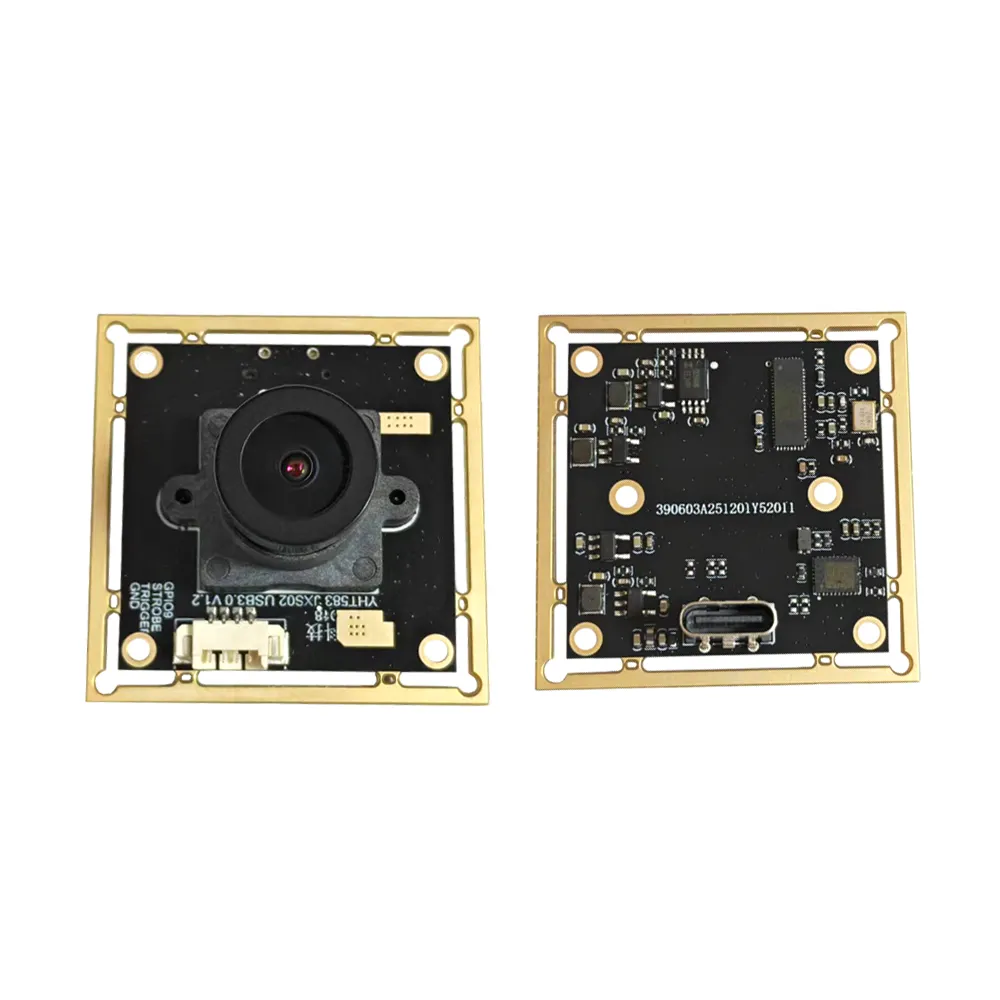

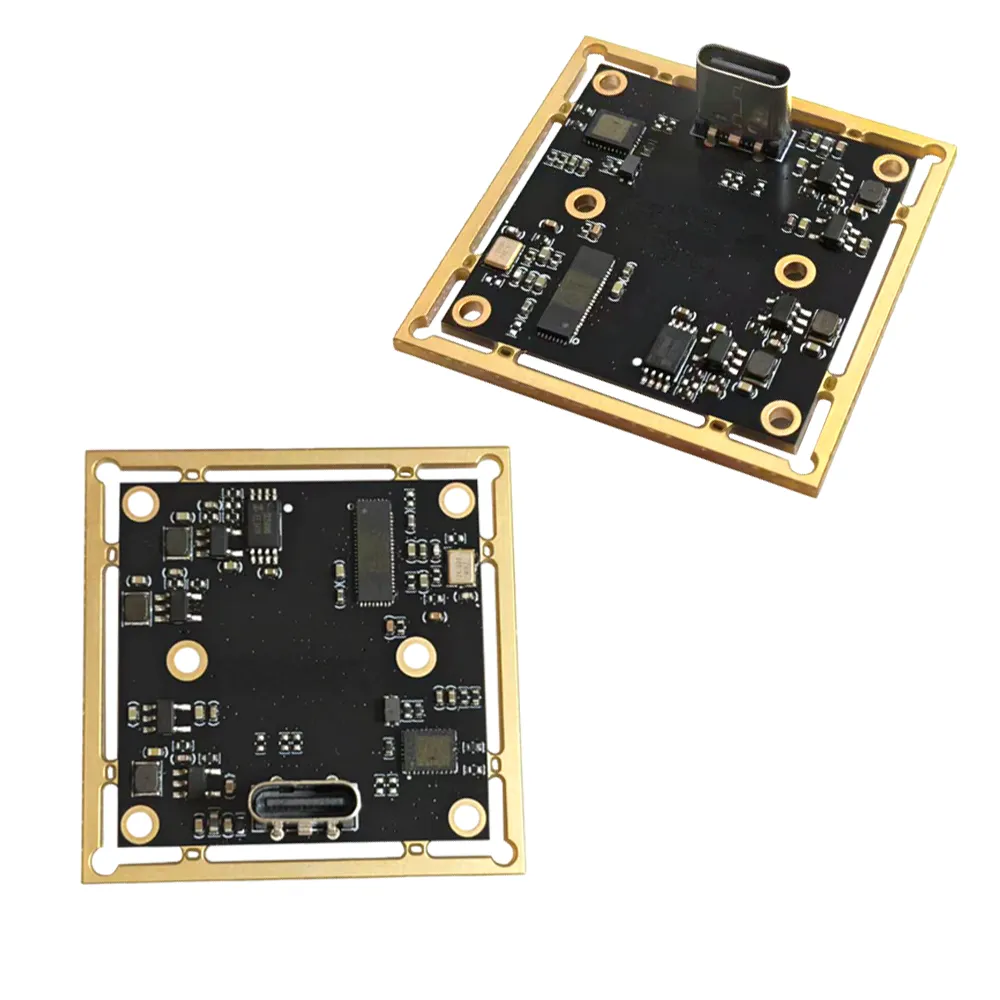

USB 3.0 Camera JX-S02 Global Shutter 720P MJPEG 200 FPS YUV 100 FPS Camera Module Supports External Trigger Photography.
Product Spotlights
USB 3.0 Camera
JX-S02 Global Shutter
720P MJPEG 200 FPS
YUV 100 FPS
Camera Module Supports External Trigger Photography.
JX-S02 Global Shutter
720P MJPEG 200 FPS
YUV 100 FPS
Camera Module Supports External Trigger Photography.
US$ 72
10 - 99 Pieces
US$ 68
100 - 499 Pieces
US$ 65
≥500 Pieces
Key Specifications
Get Latest Price
Type:
HD
Color:
Other
Optical Zoom:
Without Optical Zoom
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW
Delivery Detail:
20 days
Related Products
-
FPGA 1080P 3D Stereo Camera VR Camera Dual Lens Synchronization USB3.0 Camera High Speed Frame SynchronizationUS$ 158 - 168MOQ: 10 Pieces -
1m USB2.0 High Speed Camera ModuleUS$ 33 - 35MOQ: 500 Pieces
-
1m 720p High Frame Rate USB Camera ModuleUS$ 35 - 37MOQ: 500 Pieces
-
1m 720p 120fps USB2.0 Camera ModuleUS$ 35 - 37MOQ: 500 Pieces
-
1080P USB2.0 High Speed Camera ModuleUS$ 23 - 25MOQ: 500 Pieces
Type
HD
Color
Other
Optical Zoom
Without Optical Zoom
WiFi
Not Support WiFi
Maximum Pixels
1-2 Million
Spectral Rrange
Color Camera
Product Positioning
Other
Image Sensor
CMOS
Production Method
Other
Origin
China Guangdong
| Model Number | J1JU784Y |
| Interface Support | USB3.0 |
| Sensor | JX-S02 |
| Sensor Size | 1/2" |
| Pixel size | 4.8 µm x 4.8µm |
| Pixel Array | 1280(H) x1024(V) |

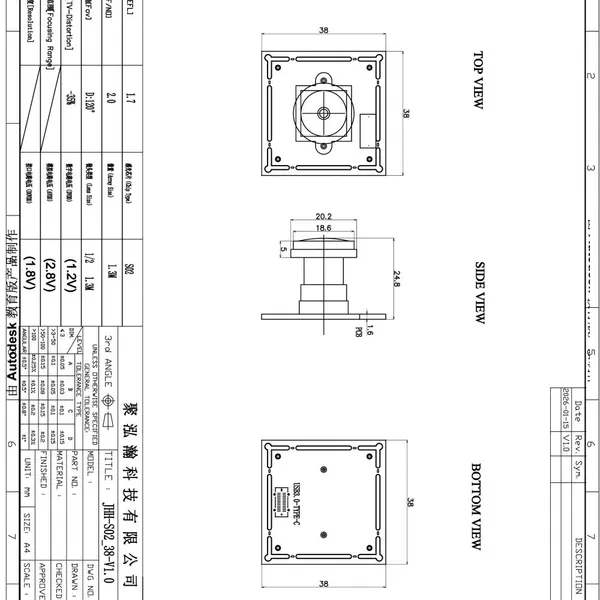

| PCB size: | 38mm*38mm |
| Focus Distance | 60 CM |
| FOV: | 76° |
| Microphone | NO Support |
| IMU | NO Support |
| Lens | Optional according to customer demand |
| Power Consumption | 5V |
| Output format | USB3.0 |
| Maximum resolution/rate | 1280(H) x1024(V) 200FPS |
| Automatic exposure control | SUPPORT |
| Automatic white balance | SUPPORT |
| Automatic white balance | SUPPORT |
| Automatic gain control | SUPPORT |
| Operating temperature | -25~75℃ |
