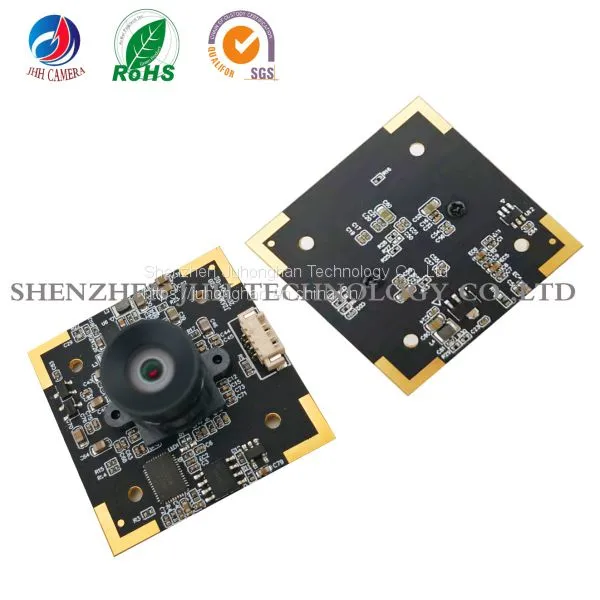

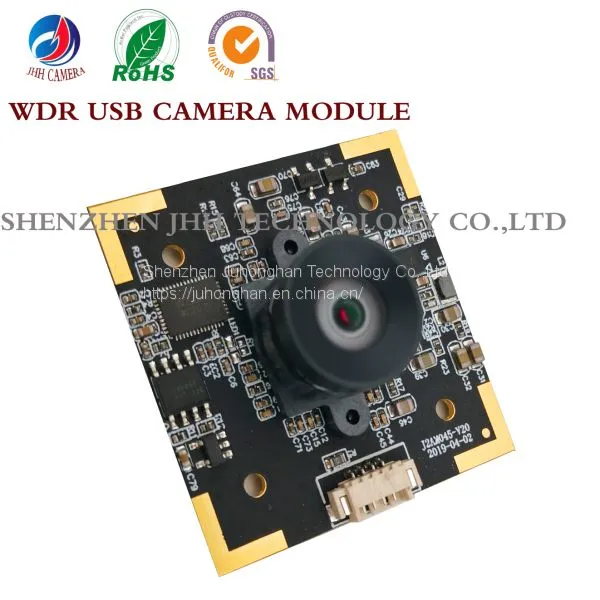

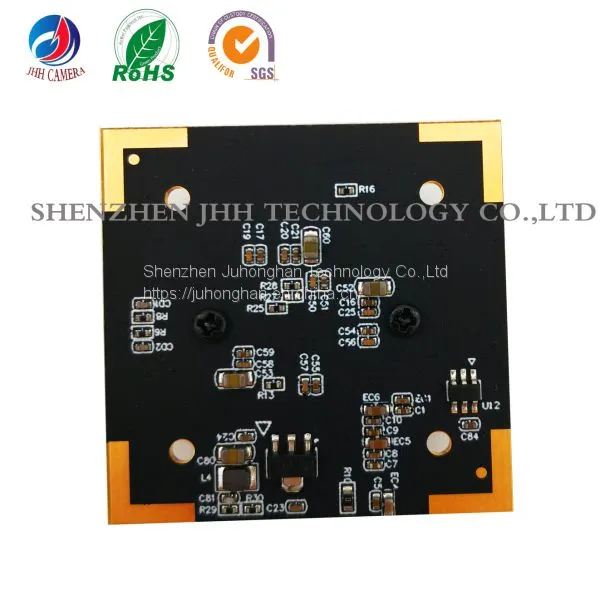

WDR 1080P DISTORTIONLESS USB 2.0 CAMERA MODULE
| Production Specification | |||
| Items | Parameters | ||
| SENSOR | ar0230 (Aptina) | ||
| Lens Size | 1/2.7 inch Cmos | ||
| Maximum Pixels | 2M | ||
| Maximum Effective Resolution | 1920V*1080H | ||
| Data Format | MJPG/YUV2 | ||
| Pixel Size | 1/2.7', | ||
| Dynamic Range | 105dB | ||
| Lens | F/NO:2.0 | ||
| FOV :D= 98°,H= 78°,V= 66° | |||
| Optical length :2.9MM | |||
| Lens construction:4G+2P | |||
| Focusing | 40Cm -∞ | ||
| Supported Resolution and Frame Rate | 1920*1080/30FPS | ||
| 1280*720/60fps | |||
| YUV2:1920*1080/15fps;1280*720/30fps;640*480/30FPS;320*240/30fps | |||
| Voltage | DC5V | ||
| Working Current | |||
| Automatic exposure control AEC | Support | ||
| Automatic white balance AWB | Support | ||
| Automatic gain control AGC | Support | ||
| Microphone | Optional | ||
| USB Connector | USB2.0 | ||
| Storage Temperature | 0~60°C | ||
| Working Temperature | -25°C~75°C | ||
| System Compatibility | Windows7/Windows 8.1/Windows 10 | ||
Camera Customization Process
1:According to the actual application scene and functional target, the camera needs to comprehensively consider the product structure size, image definition, frame rate, lens angle, lighting scene and other factors to choose the appropriate DSP chip, SENSER and lens. Need to be customized.This product is only for customer testing DEMO, please contact our customer service to inform you which product you want the camera to be used on? What functions are implemented? Any special requirements? According to the cost target and other comprehensive Factors, we help you choose the appropriate DPS+SENSER+ lens scheme, and then design the product PCBA according to the structural requirements.
2:Example: a customer prepared to do a person identify comparison machine. If it is used in the indoor with good light , we suggest the customer to use ordinary lens and SENSOR. If there is bad light or backlight, we suggest the customer to use WDR wide dynamic SENSOR+ disto If the customer has very high security requirements, we recommend that the customer use WDR and the black and white infrared binocular recognition camera. When the client determines the SENSOR and lens scheme, the parameters such as color, white balance and Saturation should be adjusted according to the actual environment to achieve the target effect.
