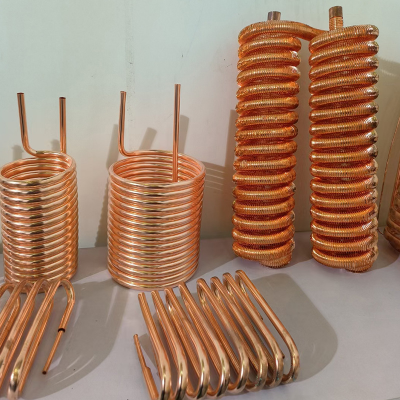

Help CenterC12200 Copper Pancake Coil 1/4" 3/8" 1/2" 5/8" ASTM B280 50ft 100ft Pre-Charged Grade
Product Spotlights
Related Products
-
ACR Copper Tube Insulated 1/4" 3/8" 1/2" 5/8" 3/4" Split AC Refrigerant Line Set GradeUS$ 8 - 25MOQ: 100 Kilograms -
C12200 Level Wound Coil LWC Copper Tube 7mm 7.94mm 9.52mm OD Auto Fin Tube Mill GradeUS$ 8 - 25MOQ: 100 Kilograms
-
Grooved Inner Fin Copper Tube 7mm 9.52mm 3/8" OD Heat Transfer Enhanced ACR HVAC GradeUS$ 8 - 25MOQ: 100 Kilograms
-
C12200 Copper Tube 1/4" to 4-1/8" OD Full Size ASTM B280 ACR Grade Stock Ready ShipUS$ 8 - 25MOQ: 100 Kilograms
-
C70600 90/10 CuNi Seamless Tube 19mm 25mm 38mm ASTM B111 Condenser Seawater ResistantUS$ 8 - 25MOQ: 100 Kilograms
Product Description:
This C12200 copper pancake coil is available in diameters 1/4", 3/8", 1/2", and 5/8" in 50-foot and 100-foot lengths, manufactured to ASTM B280 pre-charged grade standards. The flat pancake design allows easy transport, storage, and handling on job sites. Soft annealed temper provides flexibility for bending around obstacles. Typical applications include pre-charged mini-split line sets, residential AC installations, contractor replacement coils, refrigeration service work, and any HVAC application requiring conveniently packaged, flexible copper coil with pre-charged system compatibility.
Key Specifications (Copper Tube)
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM B280, B88, B68, EN 1057, JIS H3300, GB/T 17791 |
Others on request |
Material / Grade |
C11000 (ETP), C12200 (DHP), Cu-DHP, Cu-ETP |
Purity: Cu ≥99.9% |
Outer Diameter (OD) |
3 mm – 219 mm |
Custom on request |
Wall Thickness |
0.3 mm – 10 mm |
– |
Length |
Straight: 3m / 6m / custom; Coil: 15–50m per coil |
Level wound up to 500m |
Temper |
Soft (annealed), half-hard, hard |
– |
Surface |
Bright annealed, clean, oilfree |
Tinning available |
Density |
8.94 g/cm³ |
– |
Testing |
Eddy current, hydrostatic, tensile, hardness |
Mill cert provided |
Packaging |
End capped, bundled, wooden case / pallet |
Seaworthy, ISPM 15 |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.
Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
