Conveyor Equipment Detailed Description
1. General Introduction
Our industrial conveyors are high-performance material handling equipment, designed for efficient, stable and safe transportation in industrial production, logistics, food processing and other fields. With customized design, durable structure and energy-saving features, they improve production efficiency, reduce labor intensity and realize automatic production line connection, complying with international standards.
2. Main Product Models & Detailed Specifications

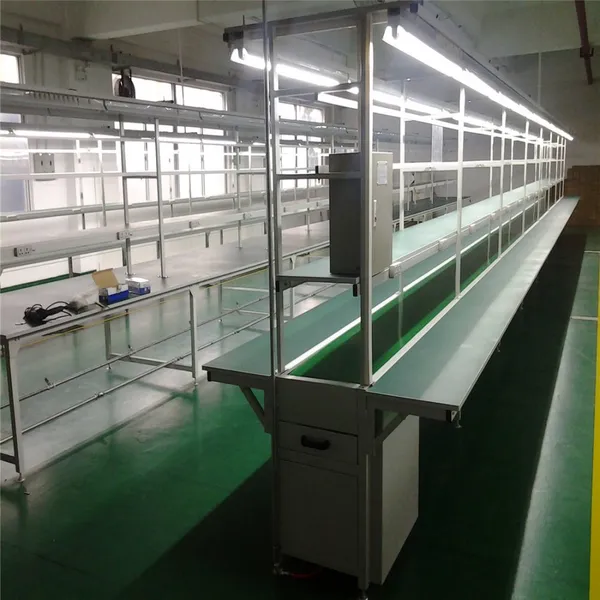

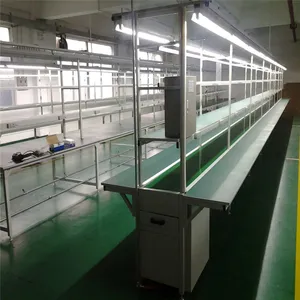

2.1 Belt Conveyor (Most Commonly Used)
A continuous conveyor with simple structure, large capacity and wide application, suitable for bulk materials, cartons, bags and other items.
Structure: Conveyor belt, driving roller, tensioning device, supporting roller, frame (high-quality steel), motor and control system.
Key Parameters: Conveying speed 0.5-3m/s (adjustable); capacity 10-500t/h; length 2-100m (customizable); belt width 500-2000mm (customizable); belt material (PVC/PU/rubber/food-grade mesh); motor power 0.75-55KW.
Advantages: Smooth conveying, low noise (≤65dB), adjustable speed, easy installation/maintenance, flexible layout (horizontal/inclined/climbing).
Application: Food processing, logistics warehousing, mining, assembly lines.

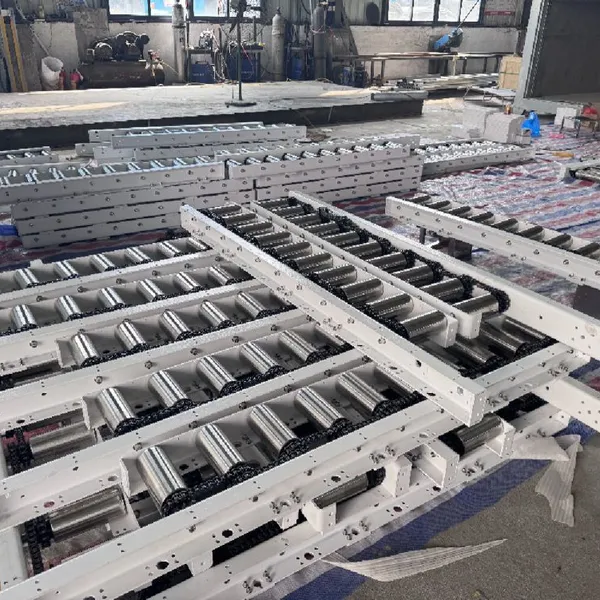

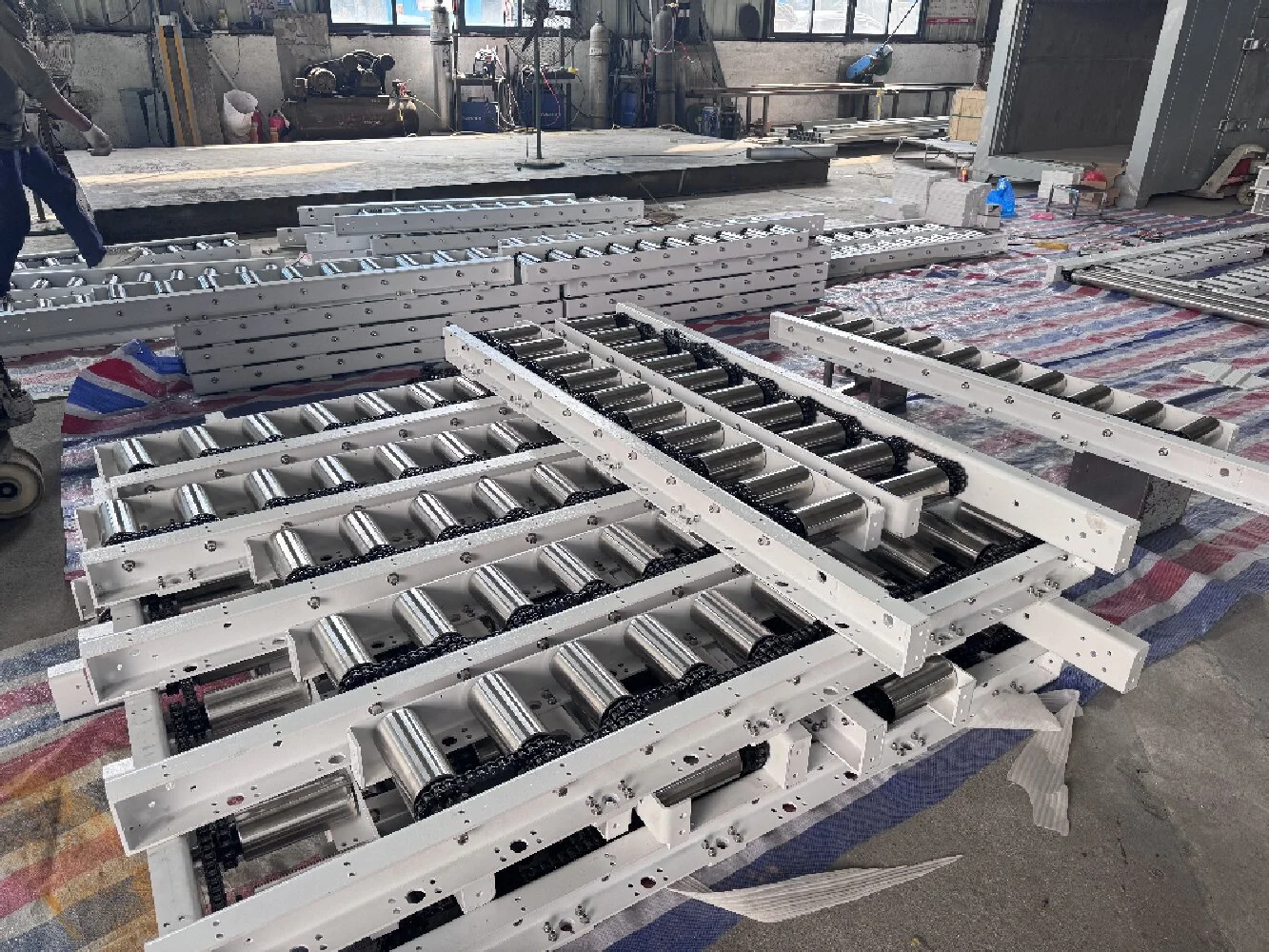

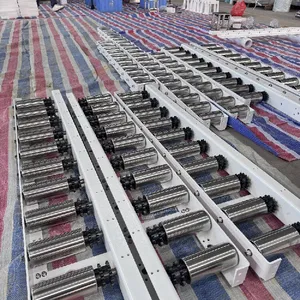

2.2 Roller Conveyor
Divided into powered and gravity types, suitable for rigid items (cartons, pallets), with simple structure and high efficiency.
Structure: Rollers (stainless/carbon steel), frame, bearing, driving device (powered), baffle.
Key Parameters: Roller diameter 50-150mm; speed 0.3-2m/s (powered, adjustable); length 1-50m (customizable); load 50-5000kg/m; frame material (304/201 stainless steel/carbon steel).
Advantages: Low friction, easy assembly, energy-saving (gravity type), synchronous conveying (powered type).
Application: Warehouse sorting, packaging lines, logistics loading/unloading, assembly lines.
2.3 Chain Conveyor
Heavy-duty conveyor using chains, with strong load capacity, suitable for harsh working environments.
Structure: Chain (high-strength alloy steel), sprocket, frame, motor, reducer, tensioning device.
Key Parameters: Speed 0.1-1.5m/s (adjustable); capacity 50-1000t/h; length 3-80m (customizable); load 100-10000kg/m; chain type (roller/plate).
Advantages: Strong load-bearing, stable operation (high temperature/dust/corrosion resistant), long service life, multi-angle conveying.
Application: Mining, metallurgy, building materials, heavy machinery, large goods logistics.
2.4 Screw Conveyor
Closed conveyor for powder, granular and small block materials, compact and no material leakage.
Structure: Screw shaft, cylinder (stainless/carbon steel), motor, reducer, feeding/discharging port.
Key Parameters: Screw diameter 100-600mm; speed 10-60r/min (adjustable); capacity 5-200t/h; length 1-20m (customizable).
Advantages: Closed conveying (no dust), space-saving, easy to clean, no material residue.
Application: Food processing, chemical industry, building materials, feed processing.
3. Overall Product Advantages
Customizable: Tailored to on-site space, conveying requirements and material characteristics.
Durable: High-quality materials, precision processing, wear/corrosion/impact resistant, service life ≥5 years.
Energy-Saving: High-efficiency motor, 15%-30% energy saving, low noise, eco-friendly.
Easy Operation: Simple control, modular design for easy maintenance and part replacement.
Safe: Equipped with emergency stop, anti-deviation and overload protection, low failure rate.
4. Installation & After-Sales Service
We provide professional installation guidance and technical training. Our after-sales team offers 24-hour online consultation, 1-year free warranty and lifelong maintenance to ensure smooth production.
5. Application Fields
Widely used in food processing, logistics warehousing, mining, building materials, automobile manufacturing, electronic assembly, pharmacy and feed processing.
