Help Center2205 Duplex Stainless Steel Plate 6mm 8mm 10mm ASTM A240 Pitting Corrosion Resistant
Product Spotlights
Related Products
-
2507 Super Duplex SS Plate 5mm-50mm UNS S32750 Offshore Seawater Chloride ResistantUS$ 2.95 - 4.75MOQ: 100 Kilograms -
310S Stainless Steel Heat Resistant Plate 3mm 5mm 8mm 1050°C Furnace Kiln EquipmentUS$ 6.75 - 8.65MOQ: 100 Kilograms
-
321 Titanium Stabilized SS Sheet 1mm 2mm 3mm ASTM A240 High Temp Welded StructureUS$ 2.75 - 4.25MOQ: 100 Kilograms
-
904L Super Austenitic Stainless Steel Plate 5mm 10mm Sulfuric Acid Phosphoric ResistantUS$ 11.75 - 12.95MOQ: 100 Kilograms
-
317L Stainless Steel Plate 6mm 10mm 15mm High Molybdenum Chloride Corrosion ResistantUS$ 5.05 - 6.75MOQ: 100 Kilograms

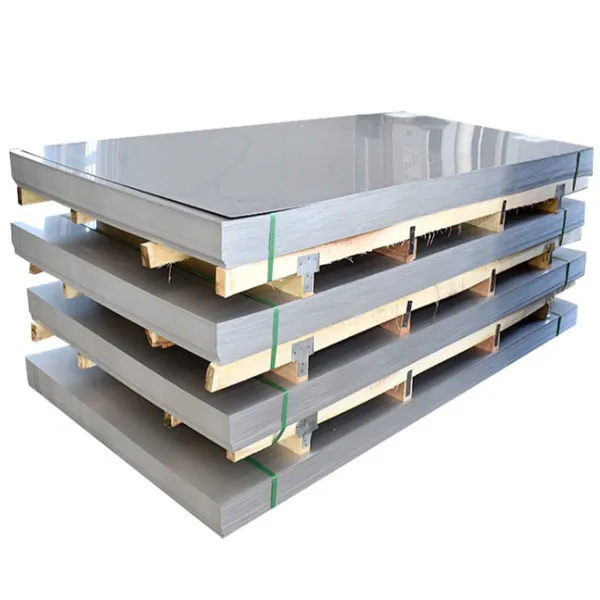

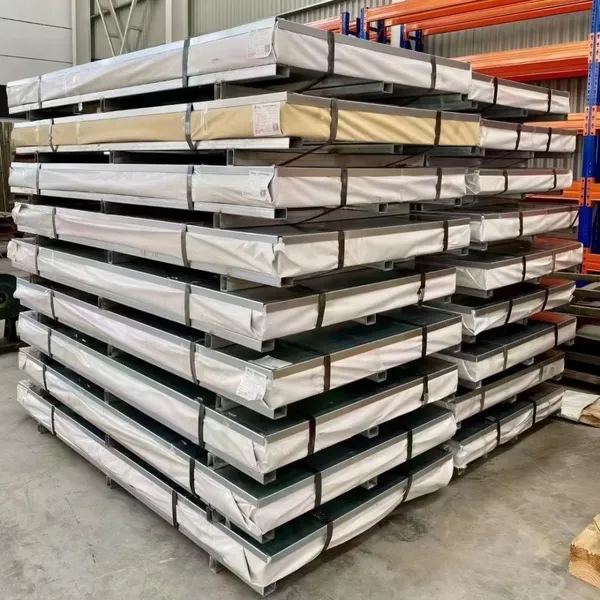

2205 duplex stainless steel sheet features premium polished surface, available in thickness 1mm to 20mm. It combines the advantages of austenitic and ferritic steel, with stable metallographic structure, high mechanical strength and excellent pitting & crevice corrosion resistance.The polished surface is smooth, aesthetic and easy to clean. It is easy for laser cutting, bending and welding, performing much better than ordinary 304/316 in salty, acidic and harsh corrosive environments, with long service life.
Application & Function
Chemical Industry: Reaction vessels, acid-base storage tanks, chemical pipeline accessories;
Marine & Coastal Engineering: Offshore platform parts, seawater desalination equipment, salt fog resistant components;
Environmental Protection: Wastewater treatment equipment, desulfurization and denitrification system plates;
Industrial Fabrication: High-pressure heat exchangers, heavy-duty corrosion-resistant structural panels.
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM A240, A480, EN 100882, JIS G4304/4305, GB/T 3280 |
Others (e.g. DIN, BS) on request |
Common Grades |
304, 304L, 316, 316L, 321, 309S, 310S, 430, 201, 202, 904L, 2205, 2507 |
Duplex & super austenitic available |
Thickness range |
Cold rolled: 0.3mm – 6.0mm; Hot rolled: 3.0mm – 120mm |
Custom on request |
Width range |
Cold rolled: 1000 / 1219 / 1500 mm (max 2000mm); Hot rolled: 1500 – 3000 mm |
Slitting / trimming available |
Length range |
Cold rolled: 2000 – 6000 mm; Hot rolled: 3000 – 12000 mm |
Custom cut to length |
Surface finish |
2B, BA, No.1, HL (hairline), No.4, mirror (8K), embossed, colored |
Pickled & annealed for hot rolled |
Tolerances – thickness |
Cold rolled: ±0.03mm to ±0.08mm (depending on thickness) |
Per ASTM A480 |
Tolerances – width/length |
±2mm (sheared), ±1mm (slit) |
Laser/plasma ±0.5mm |
Flatness |
≤3mm/m for cold rolled; ≤5mm/m for hot rolled (standard) |
Leveling service available |
Mechanical properties (typical – 304) |
Tensile strength ≥515 MPa; Yield ≥205 MPa; Elongation ≥40% |
Varies by grade & temper |
Hardness (304/316) |
≤200 HB; ≤92 HRB |
Annealed condition |
Density |
7.93 g/cm³ (304/316); 7.70 g/cm³ (430) |
– |
Surface protection |
Interleaving paper + PE film on one or both sides |
Optional |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.
Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
