Patterned Steel Plate Product Detailed Description
1. Product Overview

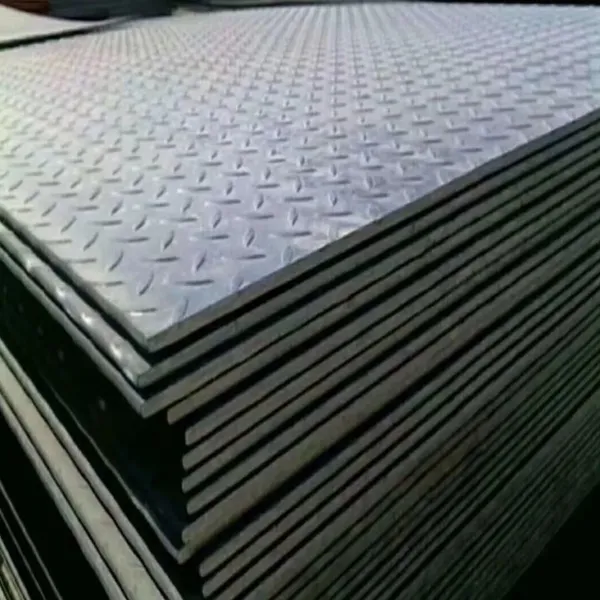

Patterned steel plate, also known as anti-slip patterned steel sheet, is a special steel plate with regular raised patterns on the surface. It is hot-rolled from high-quality carbon structural steel.It features anti-slip, pressure-resistant, wear-resistant, easy cutting & welding, good corrosion resistance and high bearing capacity. With neat appearance and stable mechanical performance, it is a widely used anti-slip load-bearing plate for industry, construction, transportation and mechanical equipment fields. Custom cutting, flattening, bending and processing are available.
2. Executive Standard
National Standard: GB/T 3277-2015 Checkered Steel PlateCommon material standard: Q235B, Q355B Carbon Structural Steel
3. Common Pattern Types
Lenticular Pattern: Most widely used in the market. With lenticular raised patterns, it has excellent anti-slip and water/oil drainage performance with high cost performance.
Diamond Pattern: Interlaced diamond protrusions with higher friction coefficient, superior anti-slip and load-bearing performance, suitable for heavy-duty industrial platforms and wharves.
Round Bean Pattern: Dot raised design with elegant appearance and comfortable foot feel, widely used in municipal projects and indoor decoration walkways.
Mixed Pattern: Combined pattern design balancing anti-slip performance and aesthetics, applied to high-end equipment pedals and decoration projects.
4. Material & Specification Parameters
Common Materials
Q235B: Ordinary carbon steel, good toughness, easy welding, high cost performance, first choice for general industrial and civil use.
Q355B: Low-alloy high-strength steel plate, higher bearing capacity, suitable for heavy-duty platforms, equipment bases and vehicle chassis.
Custom available: Galvanized patterned plate, weather-resistant steel plate (excluding stainless steel).
Thickness
Regular thickness: 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm
Size
Standard width: 1000mm, 1250mm, 1500mm
Standard fixed length: 6000mm
Custom length, flattening and special cutting are acceptable.
5. Theoretical Weight (GB Reference)
Unit: kg/㎡
2.5mm: approx 21.3kg/㎡
3.0mm: approx 24.4kg/㎡
4.0mm: approx 32.4kg/㎡
5.0mm: approx 40.5kg/㎡
6.0mm: approx 48.4kg/㎡
6. Product Features
Excellent Anti-slip Performance: Raised patterns increase friction force, effective anti-slip under wet, oily and rainy & snowy conditions.
High Load-bearing & Compression Resistance: Stable base material, good bending, compression and impact resistance, suitable for pedestrian and heavy-duty long-term load-bearing.
Good Processability: Support cutting, bending, punching, welding, painting and hot galvanizing, convenient for on-site construction.
Long Service Life: Original rolling process, flat surface without cracks or peeling. Carbon steel can be treated for rust prevention, suitable for indoor and outdoor long-term use.
Neat & Elegant Appearance: Even pattern arrangement and high flatness, applicable for both engineering and decoration purposes.
7. Application Scope
Construction Engineering: Stair tread plate, fire passage, roof maintenance platform, corridor walkway
Industrial Workshop: Operation platform, equipment pedal, trench cover plate, warehouse anti-slip floor
Transportation & Logistics: Truck floor, container base plate, ramp anti-slip plate, wharf trestle
Mechanical Equipment: Construction machinery pedal, machine tool base, maintenance platform
Municipal Engineering: Pedestrian anti-slip road, ditch cover, landscape project, factory walkway
8. Supply & Processing Service
Full sizes in stock, delivery time: 5-7 days
Support flattening, shearing, bending, punching and special-shaped cutting
Material certificate and quality guarantee document provided
