Angle Steel Product Detailed Description
1. Basic Definition

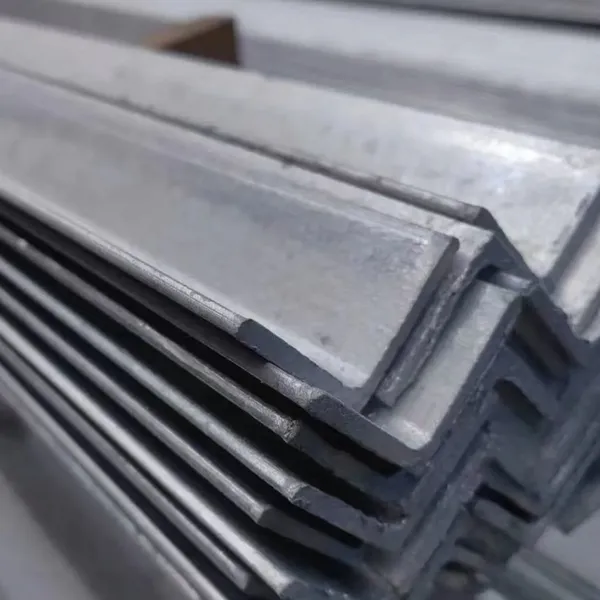

Commonly known as angle iron, Angle Steel is a long steel product with an L-shaped right-angle cross-section of 90°. It belongs to simple section steel with two perpendicular sides, widely used for structural support and connection.
2. Product Classification
By Cross-section Type
Equal Angle Steel: Two sides with the same width, marked as ∠Side Width × Thickness (e.g. ∠50×5), model range from 2# to 20#.
Unequal Angle Steel: Two sides with different widths, marked as ∠Long Side × Short Side × Thickness (e.g. ∠63×40×5), model range from 3.2/2# to 20/12.5#.
By Production Process
Hot Rolled Angle Steel: Dense structure and high strength with oxide surface, widely used in construction and heavy-duty structures.
Cold Formed Angle Steel: Formed at normal temperature with uniform wall thickness and high precision, mainly used for light structures such as shelves and brackets.
3. Specifications & Dimensions (GB/T 706-2016)
Equal Angle Steel: Side width 20–200mm, thickness 3–24mm; standard length 6–12m, custom fixed length available.
Unequal Angle Steel: Long side 30–200mm, short side 20–125mm, thickness 3–18mm; standard length 6–12m.
Theoretical Weight Formula: W(kg/m)=0.00785 × Thickness × (2 × Side Width − Thickness).
4. Common Material & Mechanical Properties
| Material Grade | Yield Strength | Features & Application |
|---|---|---|
| Q235B Carbon Steel | ≥235MPa | Most widely used, good plasticity and weldability, cost-effective, for general structures |
| Q355B Low Alloy Steel | ≥355MPa | High strength and impact resistance, used for bridges and heavy machinery |
| Q355NH Weathering Steel | ≥355MPa | Excellent anti-corrosion performance, suitable for outdoor and humid environments |
5. Surface Treatment
Black Hot Rolled Finish: Original mill finish, low cost, can be painted or galvanized for anti-rust treatment.
Hot Dip Galvanized: Superior anti-corrosion, long service life, ideal for outdoor and chemical industry projects.
Spray Paint & Anti-corrosion Coating: Custom color and anti-corrosion grade, for indoor and outdoor decoration & structures.
6. Product Features
Stable structure with high bending and compression resistance, not easy to deform.
Easy installation, available for welding, bolt connection and riveting.
High cost performance, more economical than H-beam and I-beam.
Complete specifications, support custom fixed length and surface treatment.
7. Main Applications
Construction: Factory frame, support column, stair handrail, curtain wall keel.
Engineering Facilities: Bridge support, transmission tower, street light bracket, cable tray frame.
Machinery Manufacturing: Equipment base, machine frame, reinforcing rib, conveyor bracket.
Storage & Logistics: Shelf column, pallet support, warehouse partition frame.
Shipbuilding & Chemical Industry: Deck bracket, industrial furnace frame, reaction tower support.
8. Execution Standard & Inspection
Hot Rolled Angle Steel: GB/T 706-2016
Cold Formed Section Steel: GB/T 6723-2017
Carbon Steel Standard: GB/T 700
Low Alloy Steel Standard: GB/T 1591
Inspection Items: Dimension tolerance, surface quality (no crack, no heavy rust), mechanical property and material certificate.
9. Packaging & Delivery

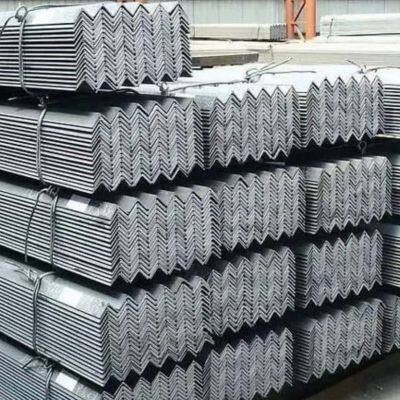

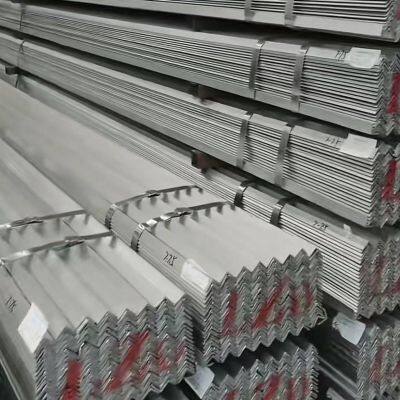

Packing: Bundled in 50–100 pieces per bundle, labeled with specification, material and batch number.
Delivery: Shipment from Tianjin port, delivery time 5-7 days, support full container and LCL export.
