1. Product Overview
This Chain Feed Flexo Printer Slotter Die Cutter is an all-in-one processing device for corrugated carton production, ideal for small and medium carton factories and customized packaging lines. It integrates flexographic printing, creasing, slotting, trimming, corner cutting, punching and die-cutting to finish cardboard forming in one process.
Featuring a classic chain feeding system, the machine delivers stable operation, strong material compatibility and low failure rates. It supports 3/5/7-layer corrugated boards and 1-4 color flexo printing, covering standard, printed and special-shaped carton production, serving as core equipment for automated carton post-processing lines.
Compared with servo feeding models, the chain feed structure boasts lower maintenance costs, better tolerance to raw material defects and higher operational stability, perfect for both mass production and small-batch customized carton orders.
2. Core Advantages
All-in-One Integrated Processing, High EfficiencyCompletes printing, slotting, creasing, trimming, punching and die-cutting in one pass. It eliminates repeated cardboard handling, boosts production efficiency and reduces manual errors, solving low-efficiency problems of traditional separate processing equipment.
Stable Chain Feeding & Wide AdaptabilityPrecision anti-deviation, anti-slip chain feeding system stably conveys various cardboard sizes and thicknesses. It adapts to A/B/C/E/F flute corrugated boards and works well with slightly warped or uneven cardboard for strong production compatibility.
High-Precision Printing & Die-CuttingEquipped with planetary gear structure and 360° non-stop electric phase adjustment. It ensures precise color overprinting, accurate slotting and die-cutting with smooth, burr-free edges, meeting high-standard carton packaging requirements.
Intelligent & Easy OperationTouch screen PLC control system supports automatic zero reset, order parameter storage and one-key recall. It enables fast order switching and shortens debugging time with simple operation.
Durable Structure & Low MaintenanceMain drive adopts precision 45# steel helical gears with automatic closed spray lubrication to reduce wear and noise. Chrome-plated hardened working rollers ensure long-term wear resistance and stable performance.
Safe & Stable OperationEach unit features electric movement and pneumatic locking, plus overload protection. It prevents equipment damage from overload operation and meets industrial safety standards.
High Cost PerformanceWith affordable pricing, low energy consumption and minimal upkeep costs, it fits both mass production and small-batch customized carton processing with outstanding market value.
3. Detailed Structural & Functional Introduction

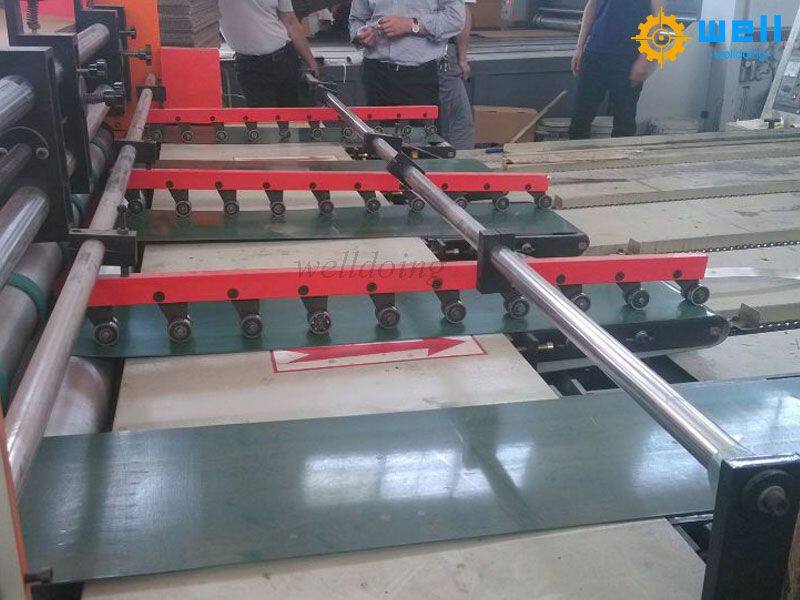

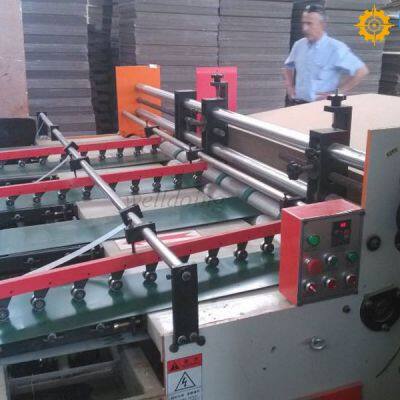

3.1 Chain Paper Feeding Unit
The heavy-duty chain feeding unit features optimized tension adjustment and matched patterned upper feeding wheels and precision steel lower rollers, ensuring non-slip, scratch-free cardboard clamping. Stepless speed adjustment adapts diverse production speeds, and the anti-interference chain design guarantees low failure feeding even for slightly defective cardboard.
3.2 Flexo Printing Unit
This unit supports customizable 1-4 color flexo printing with high-precision printing and anilox rollers for fast plate replacement. 360° electric phase adjustment ensures accurate overprinting, clear patterns and uniform ink color. The stable ink supply reduces consumption, and electric separation & pneumatic locking facilitate easy maintenance.
3.3 Slotting & Creasing Unit
The slotting unit adopts 360° phase adjustment and four synchronous cutter heads for free size adjustment and fast cutter replacement. Double-sided creasing delivers clear, crack-free crease lines, while an independent kicker knife ensures smooth cardboard discharge. Accurate slotting guarantees neat carton folding.
3.4 Die-Cutting Unit
Equipped with high-strength die-cutting rollers and precision templates, the unit supports electric horizontal adjustment and automatic zero reset. It completes full-board die-cutting, partial punching and special-shaped cutting with smooth, burr-free edges. Built-in overload protection effectively avoids tool damage.
3.5 Transmission & Lubrication System
Precision heat-treated helical gears ensure stable, low-noise transmission. The automatic closed spray lubrication system provides quantitative lubrication for core transmission parts, reducing friction wear and greatly extending equipment service life.
3.6 Electric Control System
The industrial PLC touch screen control system features full digital parameter display, order storage, parameter recall, one-key operation and fault self-detection. It is easy to operate, requiring minimal worker training to reduce labor costs.
4. Technical Parameters
Item |
Technical Specification |
|---|---|
Machine Model |
Chain Feed Flexo Printer Slotter Die Cutter |
Printing Color |
1/2/3/4 Colors (Customizable) |
Applicable Cardboard |
3/5/7 Layer Corrugated Board (A/B/C/E/F Flute) |
Max. Processing Size |
Customizable (1600/1800/2000/2200mm) |
Printing Accuracy |
±0.5mm |
Slotting & Die-Cutting Accuracy |
±1mm |
Production Speed |
60-180pcs/min (Adjustable) |
Phase Adjustment |
360° Electric Numerical Control Adjustment, Non-Stop Adjustment |
Transmission Mode |
Chain Feeding + Helical Gear Transmission |
Lubrication Mode |
Automatic Closed Spray Lubrication |
Control System |
PLC + Touch Screen Intelligent Control |
Power Supply |
380V/50Hz (Customizable) |
Warranty |
1 Year Warranty, Lifetime Maintenance |
Certification |
ISO9001, CE Certified |
5. Application Scope
Widely applied in food, beverage, electronics, daily necessities, logistics, furniture and hardware packaging industries, the machine produces standard shipping cartons, color printed cartons and special-shaped die-cut cartons. It meets diversified production demands for professional packaging factories and supporting enterprise packaging workshops.
Suitable for both standardized mass production and multi-style small-batch customized orders, the machine features strong market adaptability and is an ideal upgrade solution for corrugated carton production lines.
6. Product Features & After-Sales Service
6.1 Product Features
Built with thickened welded steel plates, the machine features a compact, sturdy structure, low noise and low energy consumption. Premium precision-processed core parts ensure low failure rates and long service life, with simple installation, flexible operation and low long-term maintenance costs.
6.2 After-Sales Service
Quality Guarantee: Strict factory inspection, 1-year full machine warranty and lifetime maintenance for core components.
Technical Support: Free installation, commissioning and operator training, plus 24/7 online technical support.
Custom Service: Customizable machine size, printing colors and functional configurations to meet diverse production needs.
Spare Parts Supply: Long-term supply of original factory spare parts at competitive prices for stable equipment operation.
7. Why Choose Our Machine?
With years of professional R&D and manufacturing experience in carton machinery, we deliver equipment with stable performance, precise processing and high efficiency. Our chain feed carton machines have obvious cost and reliability advantages over peer products.
Adopting mature, low-fault structural design, our equipment minimizes maintenance costs and downtime losses. We provide one-stop solutions including customization, production, commissioning and after-sales service to help customers improve productivity and economic benefits.
