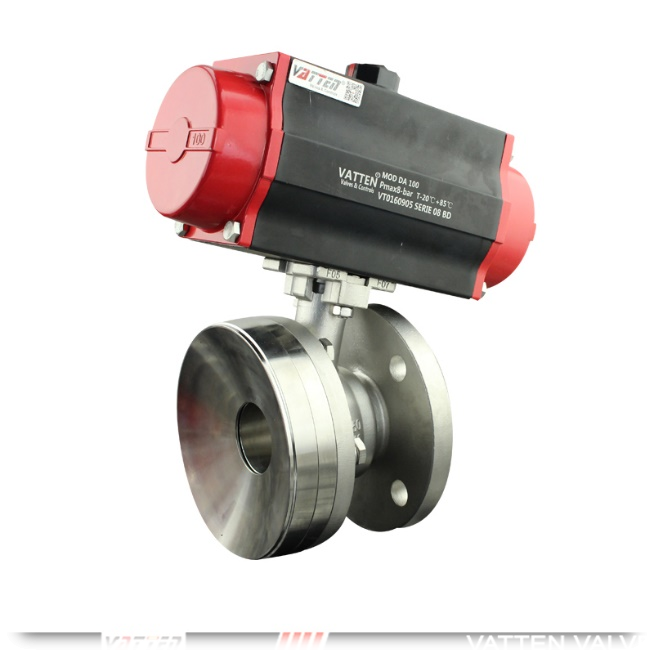

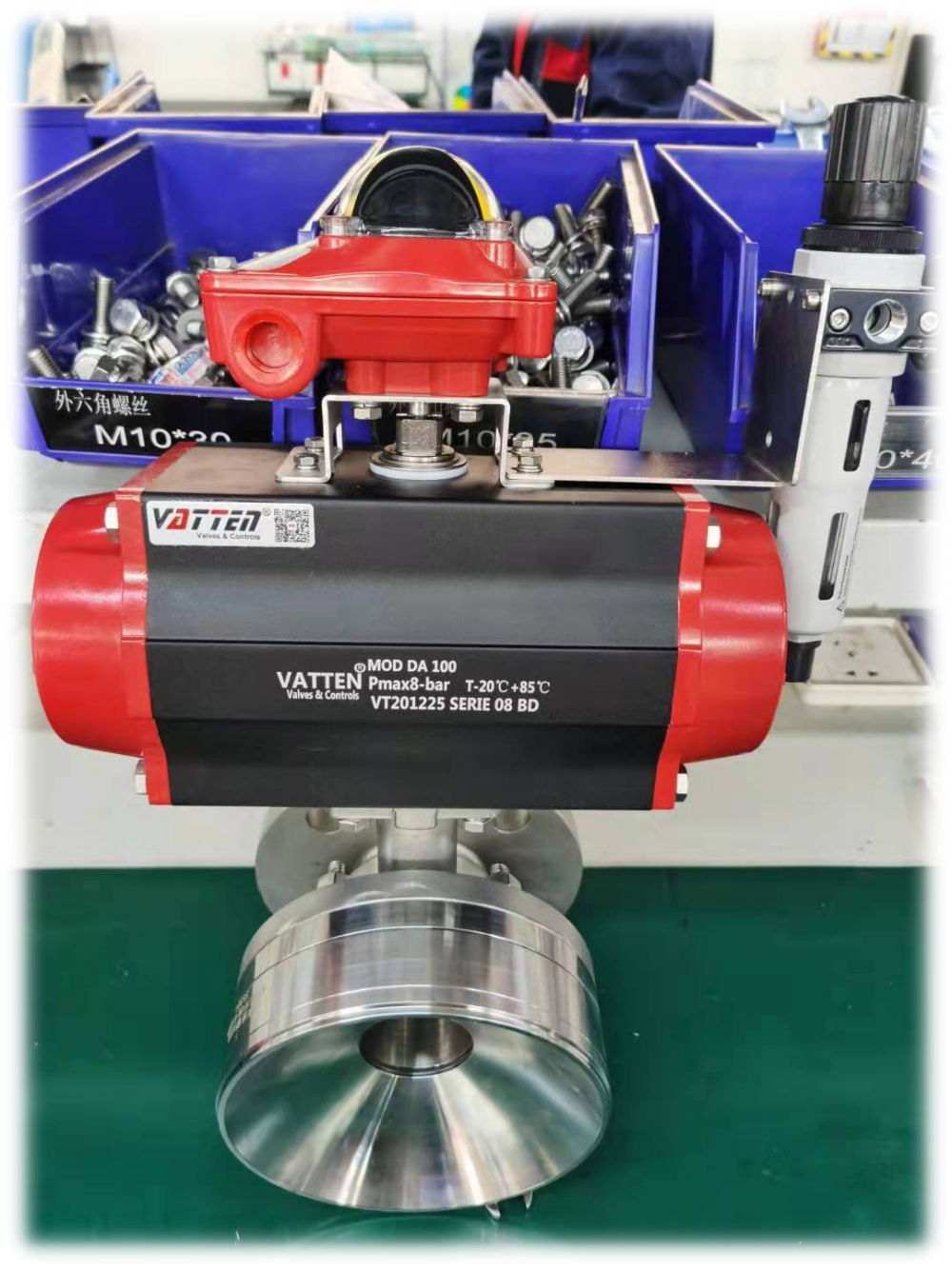

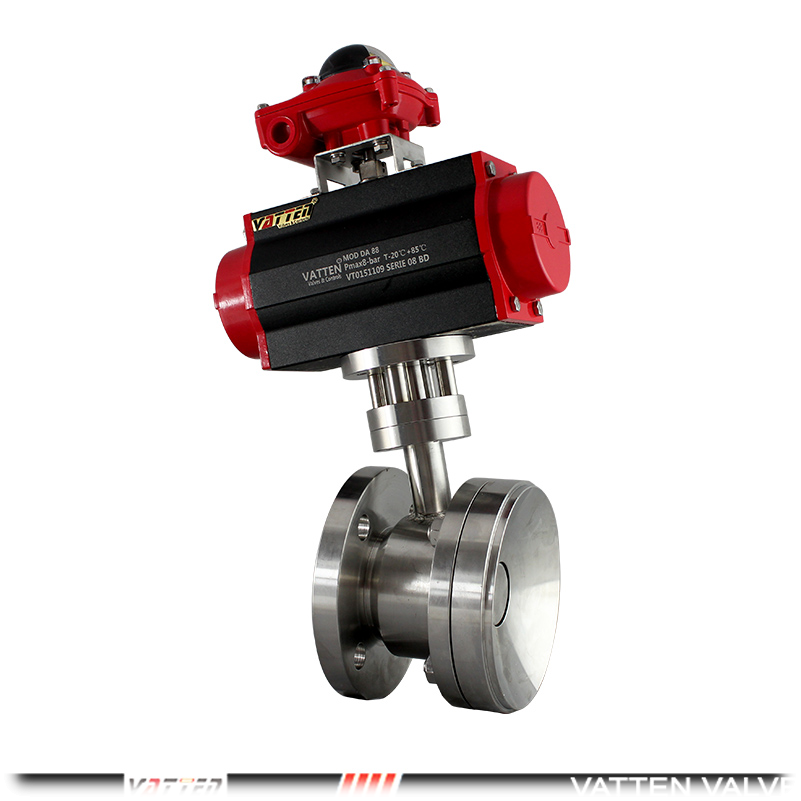

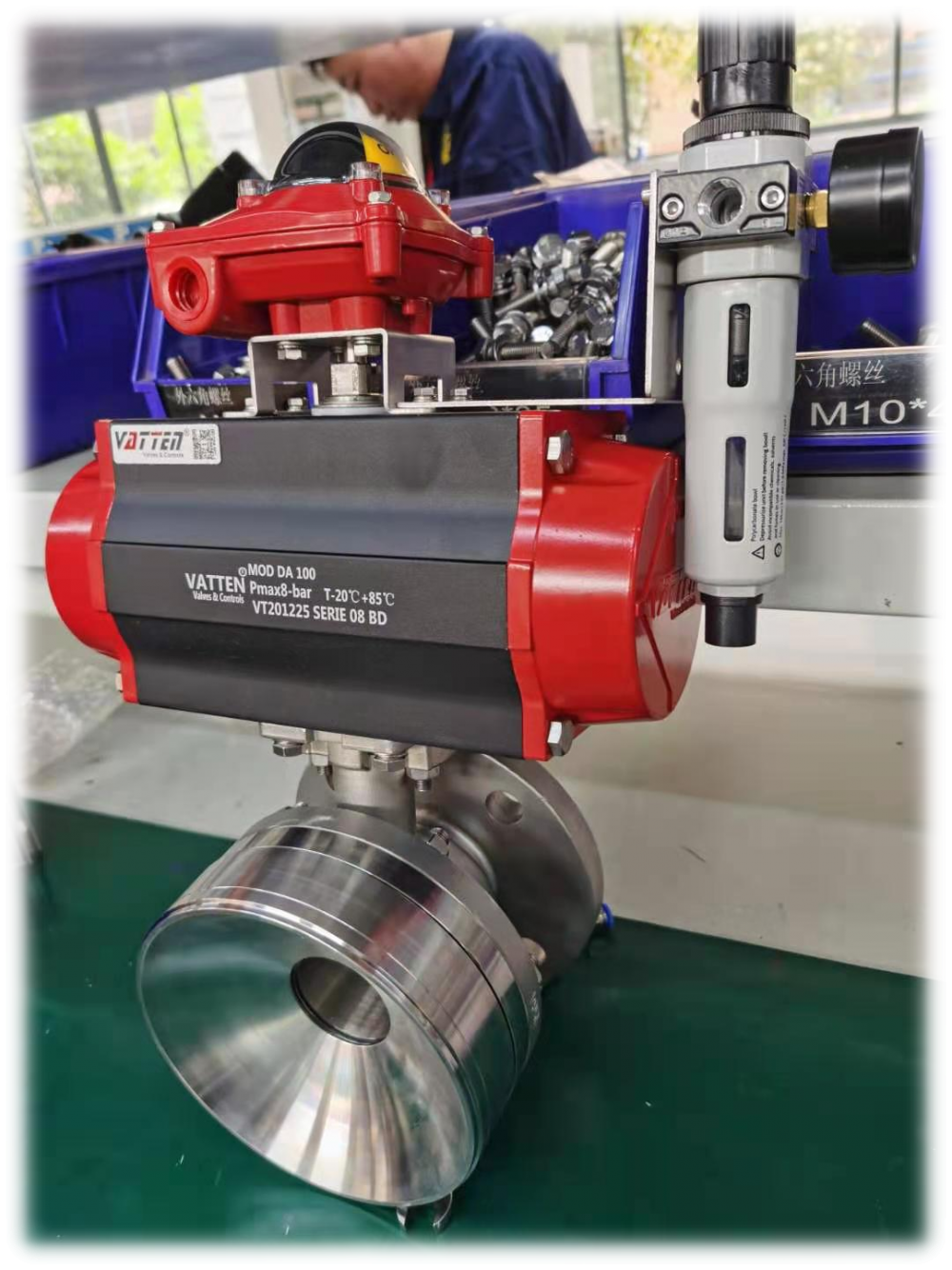

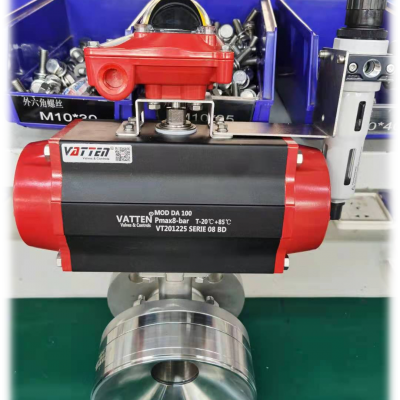

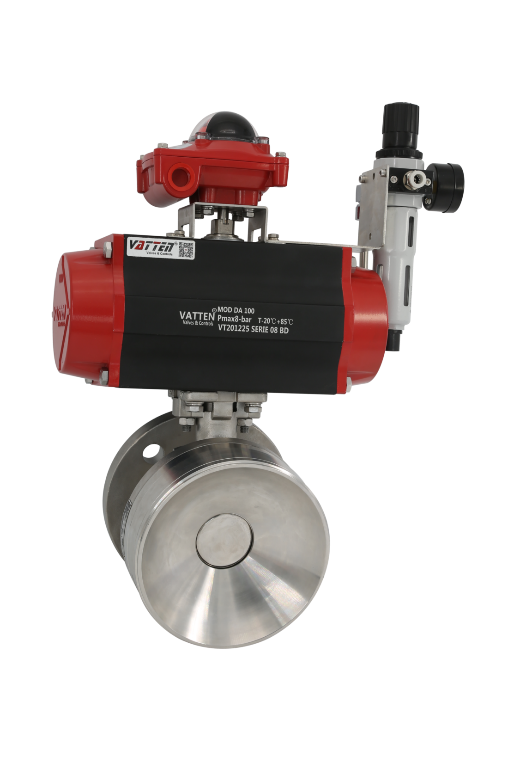

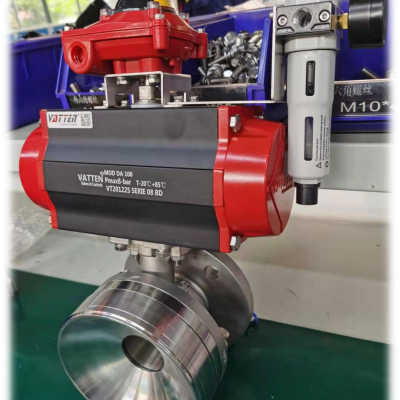

Shanghai CAMP Environmental Protection Technology Co., Ltd., established in 2015, brings you an innovative solution for challenging industrial environments: our Compact Pneumatic Tank Bottom Valve with 105° Angled Valve Stem. Designed specifically for installations where space is at a premium, this valve ensures reliable flow control without compromising performance. As a trusted supplier serving diverse markets across North America, South America, Europe, Asia, Africa, and Oceania, we understand the critical need for space-efficient, dependable valve solutions in sectors ranging from chemical processing to food production.
Core Technical Specifications:
| Feature | Specification |
| Valve Operation | Pneumatic Actuation (Air-to-Close/Open) |
| Body Material | Stainless Steel 304/316 (Standard) |
| Pressure Rating | PN16 / 16 bar |
| Temperature Range | -20°C to +150°C |
| Stem Design | 105° Angled for Space Optimization |
Key Benefits for Your Operation:
Space-Saving Design: The unique 105° stem angle allows installation in areas where traditional straight-stem valves cannot fit, maximizing your layout flexibility.
Reliable Sealing: Precision-engineered seat and seal ensure bubble-tight shut-off, critical for process integrity and safety.
Reduced Maintenance: Robust construction and quality materials minimize wear, extending service intervals and lowering TCO.
Enhanced Safety: Pneumatic operation eliminates the need for manual handling in hazardous areas.
Material Compatibility: Suitable for a wide range of fluids including water, chemicals, oils, and food-grade substances (with appropriate seal selection).
Applications:
Chemical processing tanks
Food & beverage storage vessels
Pharmaceutical bulk containers
Industrial reactor drainage
Mobile tanker systems
With a presence in over 15 major global markets since 2015, Shanghai CAMP Environmental Protection Technology has delivered robust fluid handling solutions to thousands of satisfied clients. Our compact pneumatic tank bottom valve exemplifies our commitment to solving real-world industrial challenges. Experience the difference that precision engineering and thoughtful design can make in your confined-space applications. Contact us today for a customized quotation or technical consultation.
FAQ:
Q: What minimum clearance is needed for installation?
A: The 105° stem design significantly reduces the frontal clearance required. Specific dimensions depend on valve size, but it typically requires 30-40% less space than standard valves.Q: Can this valve handle viscous fluids?
A: Yes, the valve is suitable for medium-viscosity fluids. For highly viscous materials, special trim options are available.Q: What air pressure is required for operation?
A: Standard models operate effectively at 4-7 bar (60-100 psi) air supply pressure.Q: Are different end connections available?
A: Yes, we offer flanged, threaded (NPT, BSP), and tri-clamp connections to suit your piping system.Q: Is the valve suitable for sanitary applications?
A: While standard models are for industrial use, we can provide valves with polished surfaces and sanitary fittings upon request.Q: What maintenance is required?
A: Routine inspection of seals and stem packing is recommended. Seal kits are available as spare parts.
