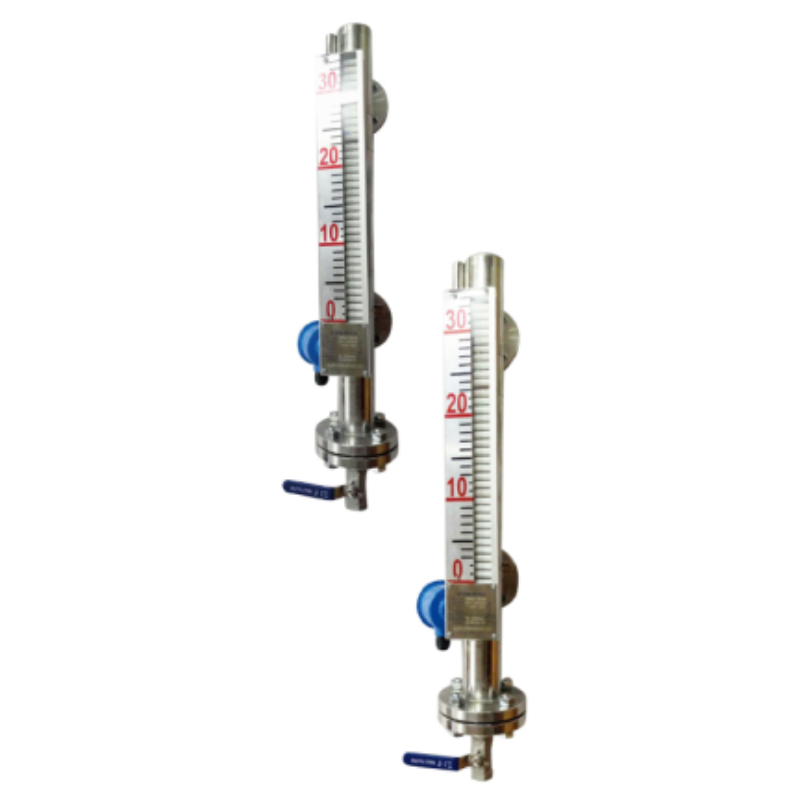

Help CenterDigital Magnetic Flap Level Gauge for Precise Tank Monitoring and Measurement
Product Spotlights
Related Products
-
Liquid Water Fuel Tank Sight Glass With Magnetic Flap Float and Transparent Tubular DesignNegotiableMOQ: 50 Pieces -
Customizable Float-Type Magnetic Flap Level Gauge With Anti-Freeze and Explosion-Proof FeaturesNegotiableMOQ: 50 Pieces
-
High-Temperature Magnetic Flap Level Gauge With Remote Transmission for Oil TanksNegotiableMOQ: 50 Pieces
-
Magnetic Flap Level Gauge for Fuel, Oil, and Water Tanks With Competitive PricingNegotiableMOQ: 50 Pieces
-
Fuel Tank Magnetic Level Gauge Float Type Level Meter for Liquid WaterNegotiableMOQ: 100 Pieces
Shanghai CAMP Environmental Protection Technology Co., Ltd., established in 2015, brings you the next generation of tank monitoring solutions. Our Digital Magnetic Flap Level Gauge delivers exceptional precision in liquid level measurement across diverse industrial applications. Engineered for reliability, this instrument combines robust construction with advanced digital technology to provide operators with clear, accurate data for critical process control decisions.
This gauge operates on the proven magnetic coupling principle while integrating modern digital capabilities:
- Dual Display System: Features both traditional magnetic flap indicators and digital LCD readouts for redundant verification
- Advanced Sensor Technology: Utilizes non-contact magnetic sensors to eliminate mechanical wear
- Environmental Resilience: Sealed enclosures protect critical components from harsh industrial conditions
Technical specifications include:
| Parameter | Specification |
|---|---|
| Measuring Range | 300mm to 6000mm |
| Flap Material | PP/PTFE/304SS optional |
| Process Connection | DN20 to DN150 flanges |
| Power Supply | 24VDC ±10% or 110/220VAC |
Key advantages for operational efficiency:
- Reduced Maintenance: No moving parts in contact with process media
- Enhanced Safety: Eliminates sight glass breakage risks
- Smart Alarming: Configurable high/low level alerts with relay outputs
- Data Logging: Optional Modbus RTU communication for SCADA integration
With our established presence across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, and domestic markets, we've refined this gauge through global field applications. Clients in chemical processing, bulk storage, and power generation facilities benefit from our:
- Customizable scale markings for specific fluid densities
- Explosion-proof versions available for hazardous areas
- Local technical support through our Shanghai headquarters
Frequently Asked Questions:
-
Q: How does the magnetic coupling work?
A: Magnets on the float rotate indicator flaps without physical contact through a hermetically sealed chamber. -
Q: Can it handle viscous liquids?
A: Yes, specially designed floats are available for high-viscosity applications. -
Q: Is calibration required?
A: Factory calibration is standard; field recalibration is typically unnecessary. -
Q: What maintenance is needed?
A: Annual visual inspection is recommended; no routine calibration. -
Q: Can it interface with control systems?
A: Multiple output options including 4-20mA and relay contacts. -
Q: Are special tools needed for installation?
A: Standard piping tools suffice; detailed manuals are provided.
Trusted by facilities in over 14 global regions since 2015, our gauges deliver measurable ROI through reduced downtime and maintenance costs. Contact our Shanghai-based engineering team today to discuss your specific tank monitoring requirements and discover why this solution has become the preferred choice for precise level measurement in demanding environments.
