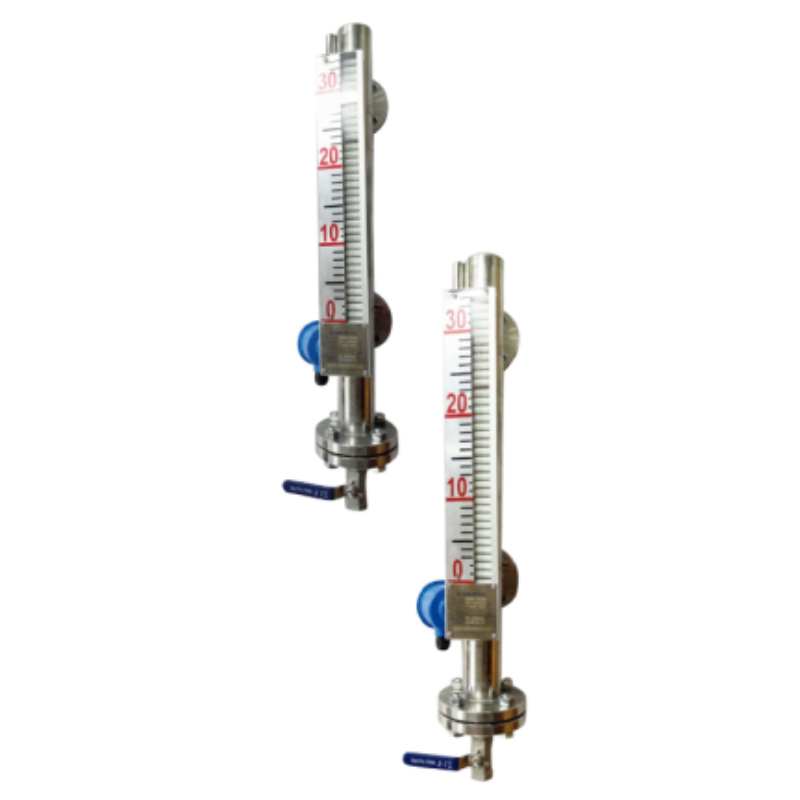

Help CenterFuel Tank Magnetic Level Gauge Float Type Level Meter for Liquid Water
Product Spotlights
Related Products
-
Magnetic Float Type Level Gauge With Sight Glass for Liquid MonitoringNegotiableMOQ: 100 Pieces -
Magnetic Flap Level Gauge for Boiler Water Fuel Liquid Level MeasurementNegotiableMOQ: 100 Pieces
-
Level Measuring Instruments Magnetic Float Radar Glass Plate Level Meter for Diesel Oil TankNegotiableMOQ: 100 Pieces
-
Custom Round Magnetic Float Level Meter Component for Industrial UseNegotiableMOQ: 100 Pieces
-
Liquid Water Fuel Tank Magnetic Flap Level Gauge With Reflex/Transparent Glass Tubular DesignNegotiableMOQ: 50 Pieces
Shanghai CAMP Environmental Protection Technology Co., Ltd., established in 2015, specializes in delivering precise industrial measurement solutions across 15+ global markets. Our Float Type Magnetic Level Gauge provides a fail-safe visual indication of liquid levels in fuel tanks and water systems, engineered for environments where reliability cannot be compromised. Manufactured with corrosion-resistant materials, this gauge eliminates electrical hazards while offering real-time, maintenance-free operation critical for industrial safety protocols.
Core Technology & Advantages:
- Magnetic Coupling Principle: A hermetically sealed float rises/falls with liquid level, magnetically driving external flip indicators without penetration – ensuring zero leakage risk.
- High-Visibility Indicators: Bi-color (white/red) flip plates provide instant level reading up to 50 meters away, even in low light.
- Rugged Construction: All wetted parts use SS304/316L stainless steel. Optional PTFE coating available for aggressive media.
- Zero Power Requirement: Operates purely mechanically – ideal for remote or hazardous locations.
- Customizable Configurations: Adapts to tank height (up to 3m standard), pressure ratings, and connection standards (ANSI/DIN/JIS flanges).
Technical Specifications:
| Parameter | Standard Specification | Optional |
|---|---|---|
| Accuracy | ±10mm | ±5mm (High Precision) |
| Pressure Rating | PN16 (1.6MPa) | PN40 (4.0MPa) |
| Float Material | SS304 | SS316L, Titanium, PTFE Lined |
| Ambient Temp | -20°C to +80°C | -40°C to +150°C |
| Output Signal | Visual Only | 4-20mA, HART, Switches |
Client Benefits:
- Enhanced Safety: Eliminates sight glass breakage risks and prevents flammable vapor leakage in fuel applications.
- Reduced Downtime: No calibration or external power needed – significantly lowers maintenance costs.
- Compliance Ready: Design adheres to general industrial safety guidelines for liquid storage vessels.
- Versatile Integration: Compatible with existing tank nozzles; retrofit-friendly for aging infrastructure.
Trust & Global Reach:
Backed by Shanghai CAMP's 9+ years of expertise in environmental technology, our gauges are trusted partners in North American oil depots, Southeast Asian water treatment plants, and European chemical facilities. Serving 15 major markets including Oceania and Africa, we understand diverse operational challenges. Our commitment to robust, adaptable solutions ensures your investment delivers decade-long performance with local technical support available. Request a tank-specific quotation today and experience precision you can see.
FAQ:
Q1: Can this gauge handle viscous liquids like heavy oil?
A: Standard floats are designed for water-like viscosity (≤ 200cP). For heavier oils (up to 800cP), we recommend oversized floats – available upon request.
Q2: Is external lighting needed for night reading?
A: Optional self-illuminated indicators (LED or tritium) can be integrated for 24/7 visibility without power.
Q3: How is it installed on an existing tank?
A: Requires two process connections (top/bottom or side/side). We provide dimensional drawings to verify nozzle compatibility before shipment.
Q4: Can it withstand corrosive chemicals?
A: Yes. Specify your media, and we’ll recommend float/chamber materials (e.g., 316L, Hastelloy, or PTFE lining).
Q5: What maintenance is required?
A: Typically none. Periodically check for float obstruction (rare). Gaskets have a 5-year service life under standard conditions.
Q6: Can alarms be added?
A: Yes. Magnetic reed switches can be mounted along the column for high/low level alarms (up to 4 points).
Q7: Is it suitable for LPG tanks?
A: Only with special certification (ATEX/IECEx). Standard units are for non-flammable liquids like water or diesel.
Q8: What’s the lead time?
A: 15-20 days for standard sizes. Custom designs require 25-30 days.
