The following is the technical parameters and product description of the E+E temperature and humidity sensor EE210-M1T13A6+HA010502, which has been organized in paragraph format:
"Product Overview

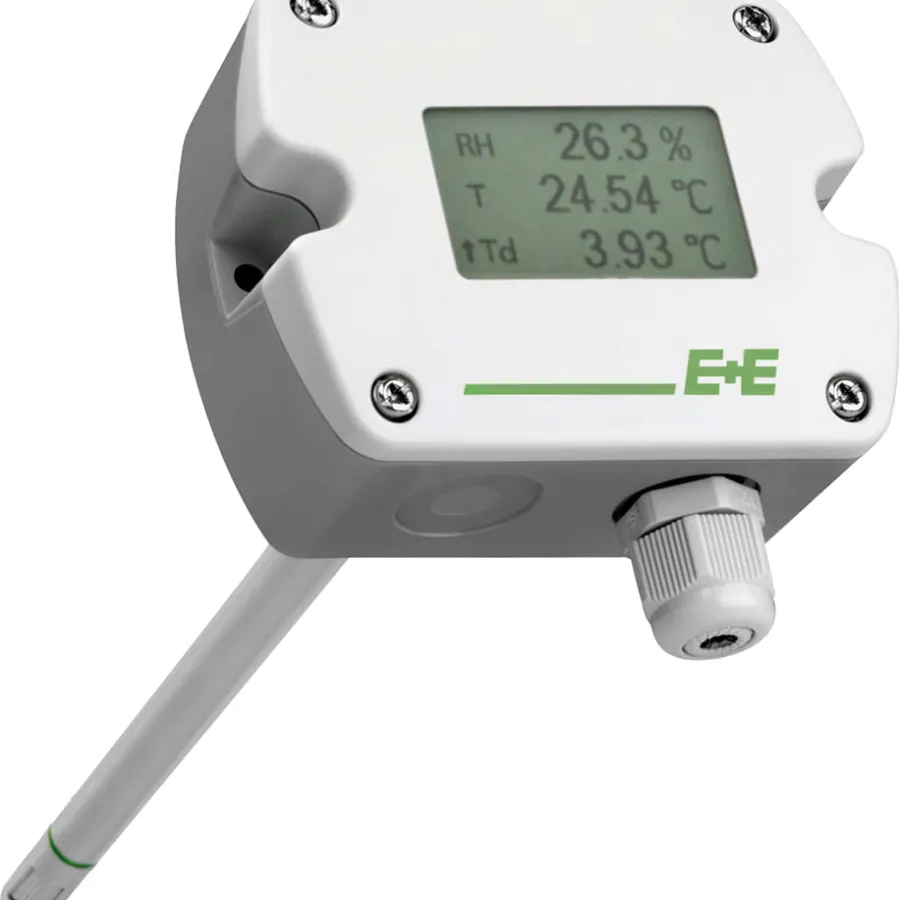

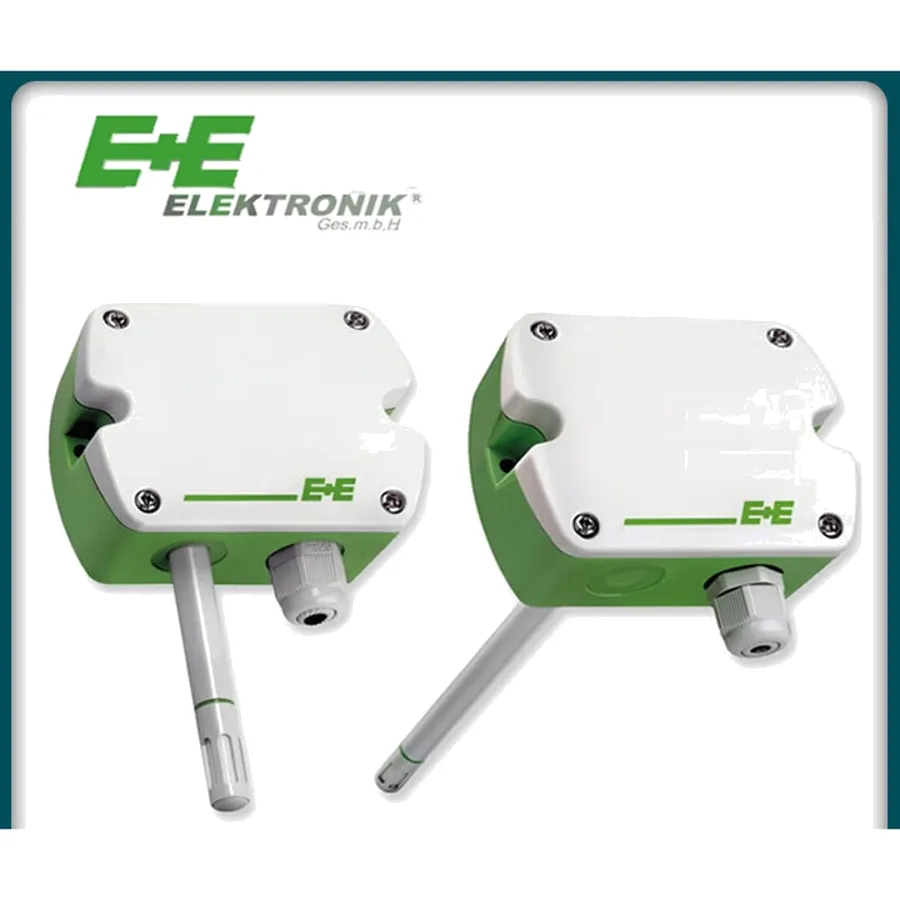

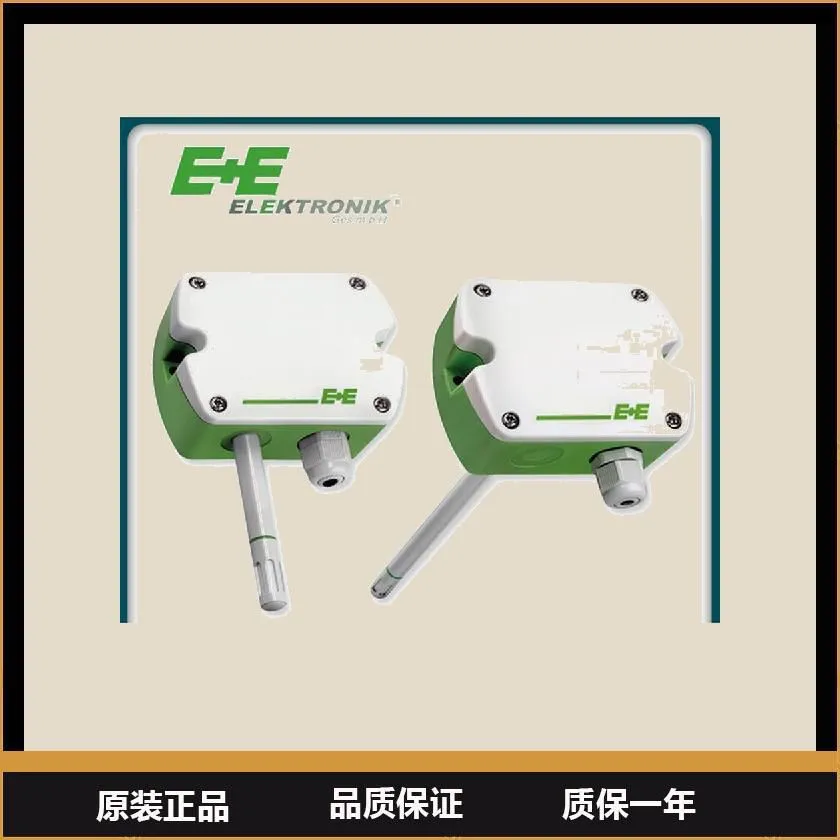

The EE210-M1T13A6+HA010502 from E+E Elektronik is a high-precision, industrial-grade temperature and humidity transmitter, specifically designed for demanding HVAC (Heating, Ventilation and Air Conditioning) and building automation environments. This model features an all-metal or high-protection-grade casing, and is equipped with E+E's independently developed coated humidity-sensitive component, which can effectively resist condensation, dust and chemical contamination. Its output signal is usually a 4-20mA or 0-10V standard analog signal, which is convenient for direct connection to PLC or building management systems.
"Core technical parameters"
- ** Measuring Range ** : Temperature -20... +60 °C Relative humidity 0... 100% RH (no condensation).
- ** Accuracy ** : Temperature ±0.3 °C (typical value); Relative humidity ±2% RH (0...) 90% RH range.
- ** Output Signals ** : Two independent analog outputs are available, with options of 4-20mA (three-wire system) or 0-10V. The corresponding ranges can be configured through software or hardware jumpers.
- ** Working Power Supply ** : 24 V AC/DC (allowable range: 15-35 V DC or 24 V AC ±20%).
- ** Protection Grade ** : IP65 (sensor probe), IP20 (electrical connection box), suitable for wall installation or air duct measurement.
- ** Environmental Tolerance ** : The sensor adopts E+E patented film coating, which can withstand condensation environments up to 99%. The probe can withstand direct blowing at a wind speed of 5 m/s.
- ** Electrical Interface ** : Connected via M16 cable connectors or terminal blocks. The default cable length is 2-3 meters (model HA010502 is the fixed cable version).
** Key Feature Description **
- ** Long-term stability ** : The E+E humidity sensor features an automatic humidity calibration function. Combined with gold-plated contacts and anti-corrosion materials, it ensures maintenance-free accuracy for over two years in places such as office buildings, clean rooms, or food storage.
- ** Flexible configuration and Interoperability ** : The "M1" in model EE210-M1T13A6 indicates the use of a standard wall-mounted housing combined with a duct probe. "T13A6" represents a specific temperature output range setting (for example, 0-
