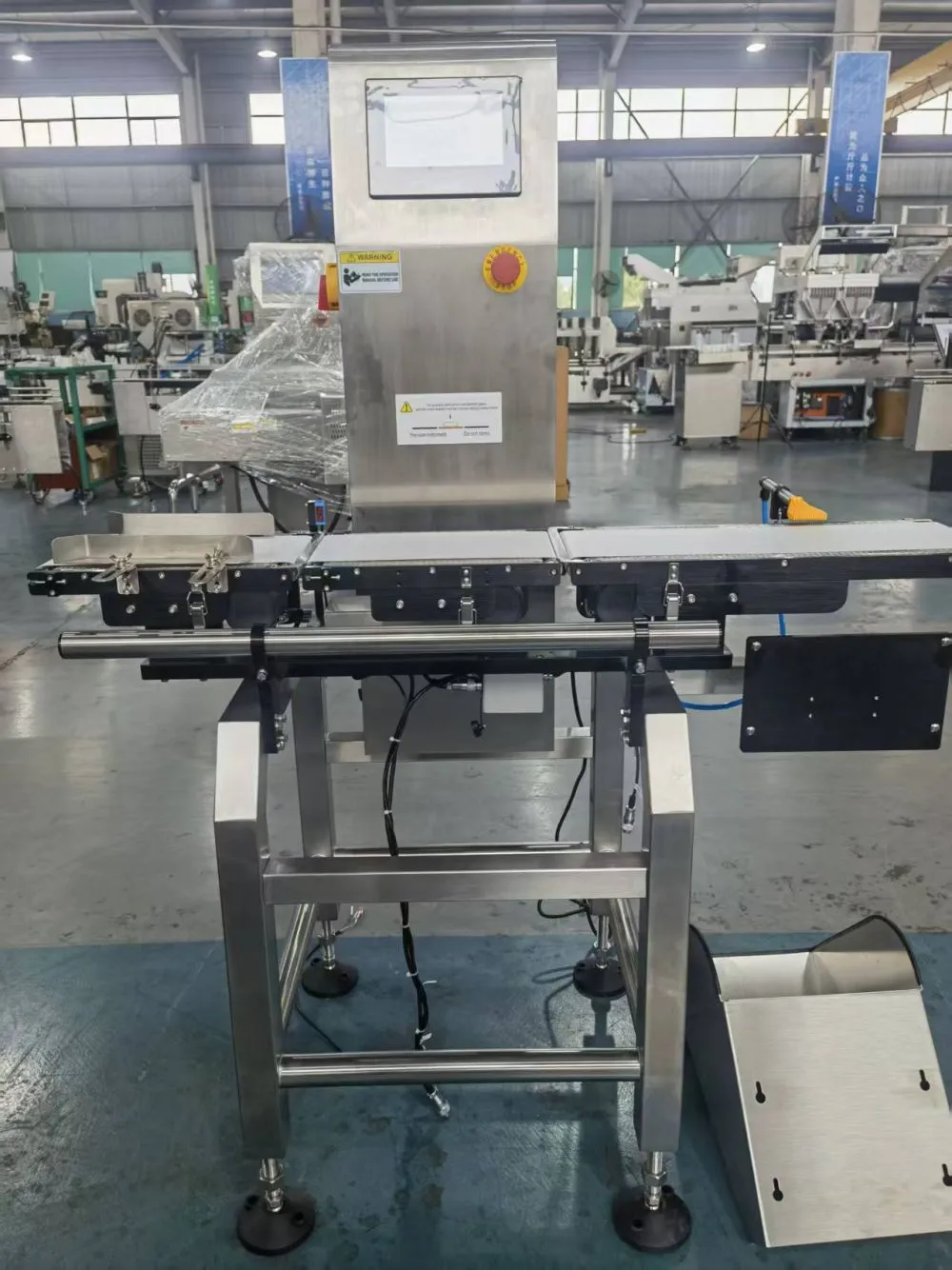

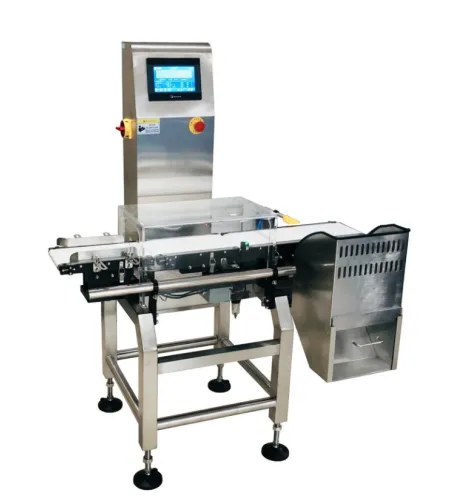

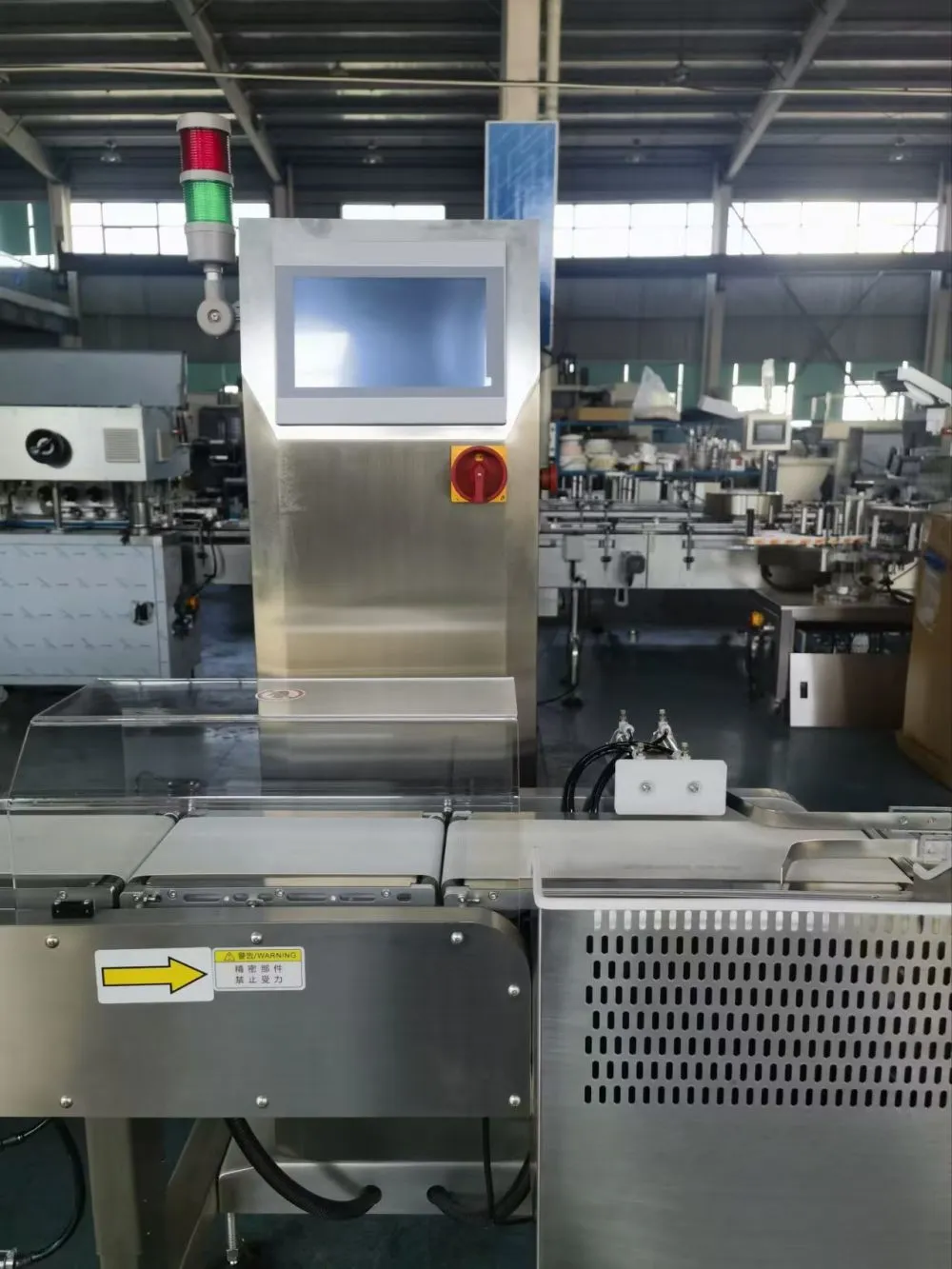

As a leading manufacturer since 2011, Zhejiang Zhong Shark Industrial Technology Co., Ltd. leverages its 30,000-50,000 sqm advanced facility and over a decade of expertise to bring you the SG-150 Automatic Checkweigher. Engineered for precision and efficiency, this system integrates high-speed weighing with intelligent sorting, significantly enhancing production line quality control and throughput. Our commitment to ISO9001 standards ensures every unit delivers consistent performance and reliability, trusted by clients across North America, Europe, Asia, and beyond. Designed for demanding industries, the SG-150 minimizes giveaway, reduces waste, and ensures 100% weight compliance.
Core Features & Technical Advantages:
- Ultra-High Speed Operation: Processes up to 150 items per minute, ideal for fast-moving production lines without bottlenecks.
- Precision Weighing: Advanced load cell technology achieves remarkable accuracy from ±0.1g to ±5g, adaptable to product specifications.
- Intelligent Sorting: Multiple rejection methods (Pusher/Arm/Flap) instantly remove under/overweight or defective items with minimal product disturbance.
- Robust Construction: Stainless steel contact surfaces and IP-rated components ensure hygiene and durability in harsh environments (food, pharma, chemical).
- User-Friendly Interface: Large color touchscreen with intuitive software for easy setup, recipe management, and real-time production data tracking (count, weight, reject stats).
- Seamless Integration: Modular design with adjustable guide rails and height for easy connection to existing conveyors and packaging machinery.
- Data Connectivity: RS232, Ethernet, and USB ports enable data export for SPC analysis and integration with factory MES/ERP systems.
Technical Specifications:
| Parameter | Specification | Benefit |
| Max Throughput | 150 items/minute | Boosts production line efficiency |
| Weighing Range | 20g - 5000g (Wider ranges available) | Handles diverse product sizes |
| Accuracy | From ±0.1g (depends on product & speed) | Ensures strict compliance, reduces giveaway |
| Conveyor Width | 250mm (Standard), Customizable | Fits various packaging formats |
| Rejection Type | Pusher (Standard), Arm/Flap (Optional) | Gentle or positive removal as needed |
| Data Output | RS232, Ethernet, USB, Relay | Enables traceability & process control |
Why Choose Our SG-150?
- Reduced Operational Costs: Minimizes product giveaway and prevents costly recalls by catching all non-compliant items.
- Enhanced Quality Control: Provides 100% weight inspection, ensuring brand reputation and meeting regulatory requirements (e.g., FDA, EU).
- Increased Productivity: High-speed operation keeps pace with modern packaging lines, eliminating manual checks.
- Low Maintenance: Robust design and accessible components ensure high uptime and easy servicing.
- Global Support: Backed by our 100+ employee team and extensive experience exporting worldwide via Shanghai/Ningbo ports.
Trusted Global Manufacturer: Operating from our expansive facility in Zhoushan, China, we serve a diverse international clientele across North America, South America, Eastern & Western Europe, Southeast Asia, Africa, Oceania, the Middle East, and Domestic China. Our ISO9001 certification underpins our commitment to consistent quality and reliable performance. The SG-150 embodies our dedication to providing industrial solutions that optimize efficiency and safeguard your product integrity. Experience the difference precision engineering and proven manufacturing capability make.
Ready to upgrade your production line? Contact us today for a detailed quotation, technical consultation, or customized solution tailored to your specific product and throughput requirements.
Frequently Asked Questions (FAQ):
Q1: What industries is the SG-150 suitable for?
A1: It excels in food & beverage (snacks, frozen goods, cans, bottles), pharmaceuticals (blisters, bottles), cosmetics, chemicals, and light industrial goods where weight verification and sorting are critical.
Q2: Can it handle different product shapes and sizes?
A2: Yes, the conveyor width and guide rails are adjustable. Custom infeed/outfeed options and rejection mechanisms can be configured for fragile, unstable, or irregularly shaped items.
Q3: How difficult is installation and operation?
A3: The SG-150 is designed for straightforward integration into existing lines. The intuitive touchscreen interface allows operators to quickly set up and manage recipes. Comprehensive manuals and support are provided.
Q4: What kind of maintenance is required?
A4: Routine maintenance is minimal, primarily involving cleaning the conveyor belt and weighing area to prevent debris buildup. The robust design ensures longevity with basic care.
Q5: Does it come with calibration and warranty?
A5: Yes, units are factory calibrated. We offer a standard warranty covering parts and workmanship. Extended warranties and calibration services are available.
Q6: Can it connect to our factory network for data collection?
A6: Absolutely. Standard RS232, Ethernet, and USB ports allow seamless data export for SPC analysis, OEE tracking, and integration with central SCADA/MES systems.
Q7: What if my product falls outside the standard 20g-5000g range?
A7: We offer customized models to accommodate significantly lighter or heavier products. Please inquire with your specific requirements.
Q8: How does the sorting function work?
A8: After precise weighing, the controller instantly signals if the item is under/overweight. Based on preset parameters, the chosen rejection mechanism (pusher, arm, or flap) swiftly diverts the non-compliant item into a reject bin without disrupting the flow.
