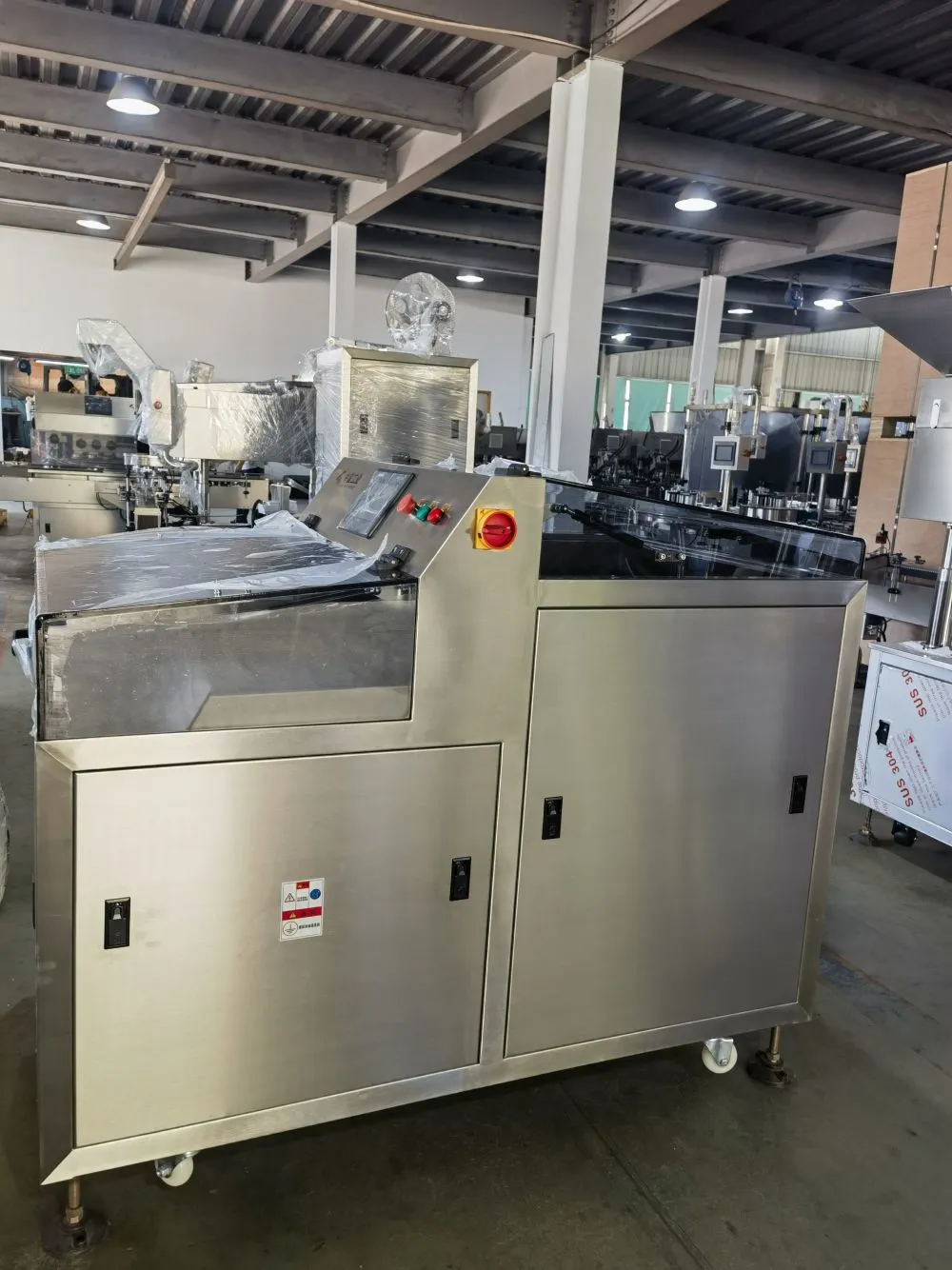

Help CenterStainless Steel BPL-200 Bottle Unscrambler With PLC Control System
Product Spotlights
Related Products
-
BPL-300 Bottle Unscrambler With Stainless Steel Construction and 1-Year WarrantyNegotiableMOQ: 1 Piece -
BPL-300 Bottle Unscrambler With Free Technical Support and Maintenance ServiceNegotiableMOQ: 1 Piece
-
Automatic BPL-300 Bottle Unscrambler for High-Speed Packaging Production LinesNegotiableMOQ: 1 Piece
-
Large Capacity BPL-300 Bottle Unscrambler for Chemical and Beverage PackagingNegotiableMOQ: 1 Piece
-
Automatic Bottle Unscrambler BPL-300 for Pharmaceutical and Food IndustriesNegotiableMOQ: 1 Piece
As a trusted manufacturer since 2011, Zhejiang Zhong Shark Industrial Technology Co., Ltd proudly presents the BPL-200 Stainless Steel Bottle Unscrambler – engineered for precision in automated production lines. Our 30,000-50,000 sqm facility combines ISO9001-certified processes with advanced PLC technology to deliver reliable bottle handling solutions for global markets.
Core Features & Benefits:
Hygienic Design: Full 304 stainless steel construction resists corrosion and meets food/pharma sanitation standards
Intelligent PLC Control: Siemens PLC with touchscreen HMI allows customizable speed and orientation parameters
High-Speed Processing: Handles up to 200 bottles per minute with >99.5% orientation accuracy
Technical Specifications:
| Specification | Parameter |
|---|---|
| Equipment Name | Automatic Bottle Unscrambler |
| Model | BPL-200 |
| Bottle Volume Range | 10-500ml |
| Maximum Production Capacity | Up to 200 bottles/min (adjustable, depending on packaging) |
| Power Supply / Frequency | 220V / 50Hz |
| Total Power | 0.5Kw |
| Dimensions (L×W×H) | 1000×1510×1200mm |
| Net Weight | 150Kg |
| Air Pressure | 0.5MPa |
| Air Consumption | 0.05m³/h |
| Noise Level |
Why Choose Our Unscrambler?
Reduces manual labor costs by up to 70% in bottling operations
Modular design integrates with existing filling/capping lines
Dual-track system minimizes jamming during high-volume runs
Backed by 101-200 skilled professionals and serving 15 global regions including North America and Europe, we guarantee prompt shipment via Shanghai/Ningbo ports. Our 12-year manufacturing expertise ensures your investment delivers rapid ROI through uninterrupted production.
FAQ Section
Q: Can it handle irregularly shaped bottles?
A: Yes, adjustable guide rails accommodate oval, square, and custom geometries.
Q: What maintenance is required?
A: Only quarterly lubrication of bearings and monthly sensor cleaning.
Q: Is the PLC program modifiable on-site?
A: Absolutely – operators can adjust settings via the waterproof touchscreen.
Q: What bottle materials are compatible?
A: Designed for PET, glass, HDPE, and PP containers.
