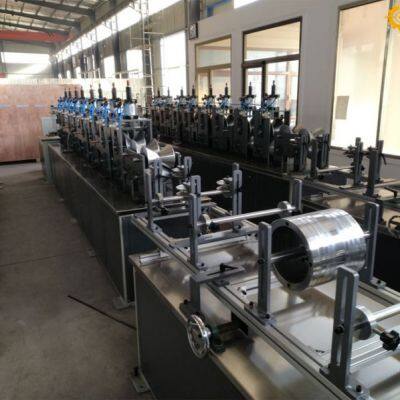

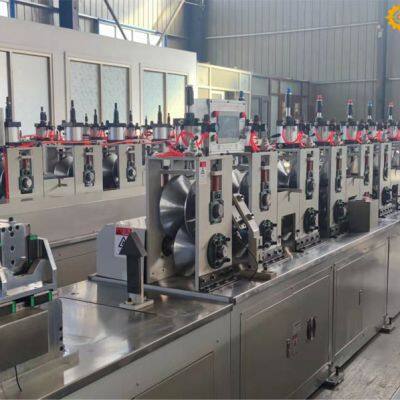

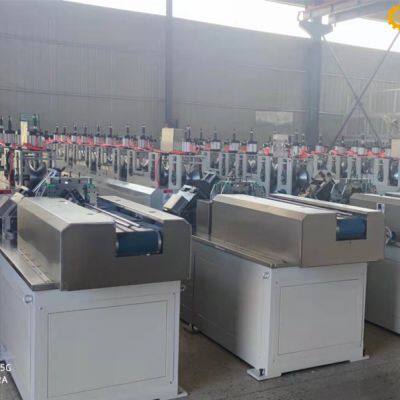

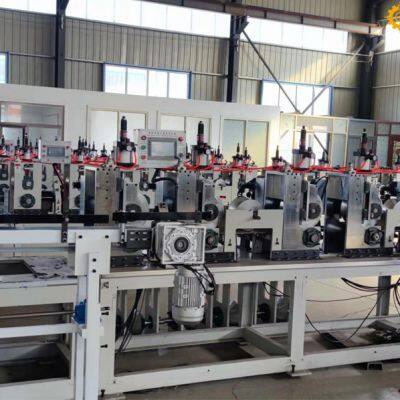

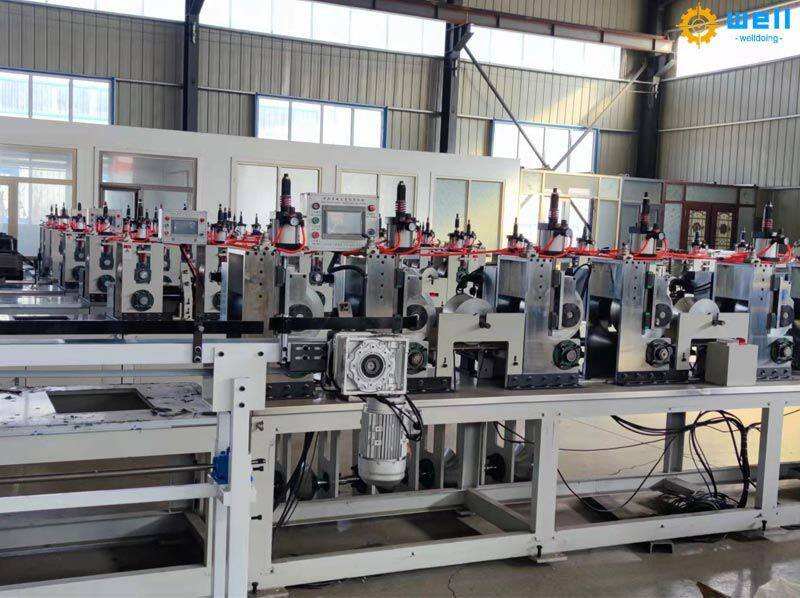

The L Shape Paper Edge Protector Machine is a professional automated packaging equipment specially developed for mass production of L-shaped paper edge protectors. It integrates paper feeding, gluing, forming, pressing and fixed-length cutting into one continuous production line, featuring high automation, stable operation and flexible parameter adjustment. The finished L-shaped paper corner protectors produced by this machine are widely used in logistics transportation, furniture packaging, electronic appliances, building materials and other industries, effectively protecting product edges from collision, extrusion and damage during storage and transportation. This equipment perfectly meets the market demand for eco-friendly, low-cost and high-strength packaging protection materials, and is core supporting equipment for packaging material manufacturers.
This machine adopts advanced frequency conversion speed regulation and CNC fixed-length cutting technology, abandoning the traditional manual and semi-automatic production mode. It supports multi-layer kraft paper composite molding, with uniform gluing and firm bonding. The whole production process is smooth and free of burrs, and the finished products have accurate right-angle molding, uniform thickness and strong compression resistance. In addition, the equipment has a humanized structural design, simple operation and convenient maintenance. Only 1-2 workers can complete the whole production operation, which greatly saves labor costs and improves production efficiency for enterprises.
Core Technical Parameters
The equipment has precise parameter configuration and flexible adjustable range, which can adapt to the production needs of L-shaped paper protectors of different specifications. The detailed core parameters are as follows:
Parameter Item |
Specific Specification |
|---|---|
Model |
SANPPL-120G |
Production Speed |
0-50m/min (frequency conversion adjustable) |
Finished Product Side Width |
30-100mm (customizable) |
Finished Product Thickness |
2-5mm |
Cutting Length Range |
100-6000mm (custom fixed length) |
Applicable Paper Material |
180-300gsm kraft face paper, 420gsm core sand paper |
Paper Layer Number |
3-7 layers (adjustable) |
Total Motor Power |
11kW |
Equipment Size (L×W×H) |
7200×1800×1800mm |
Machine Weight |
3500kg |
Cutting Mode |
Automatic CNC fixed-length cutting |
Product Core Advantages

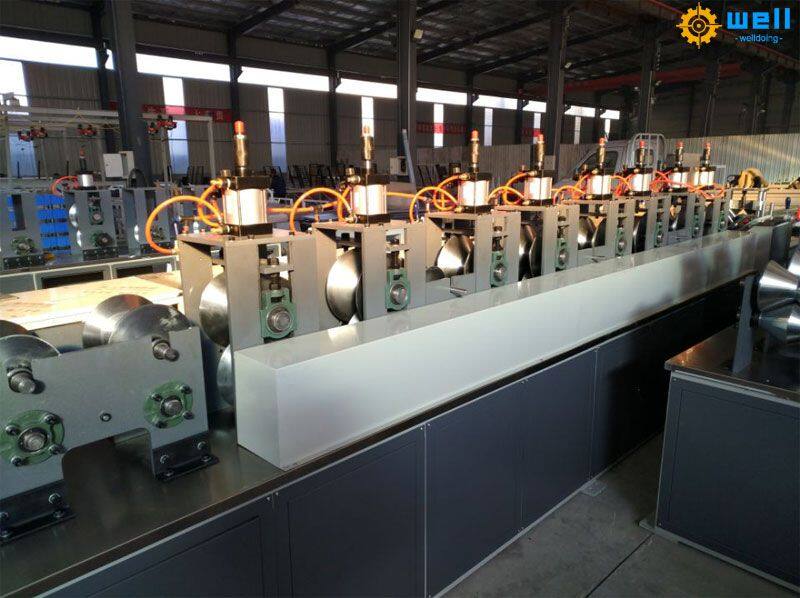

First, high production efficiency and stable performance. The equipment supports continuous uninterrupted production, with a maximum speed of 50m/min. The frequency conversion speed regulation system can adjust the production speed according to production demand, avoiding material waste. The molding roller is made of high-strength wear-resistant material, which ensures long-term stable right-angle molding without deformation, and the product qualification rate is as high as 99%.
Second, wide adaptability and strong customization. It can produce L-shaped paper protectors with different widths, thicknesses and lengths by adjusting parameters, covering the packaging protection needs of light and heavy goods. The multi-layer paper composite design makes the finished products have good compression resistance, toughness and moisture resistance, which can effectively buffer external pressure and prevent product corner damage.
Third, energy-saving and environmentally friendly, low operating cost. The equipment adopts energy-saving motor and precise gluing system, which reduces power consumption and glue waste. The raw materials are all recyclable kraft paper, which conforms to global environmental protection packaging trends. Meanwhile, the integrated structural design reduces failure rates, and daily maintenance is simple, effectively reducing later operation and maintenance costs.
Application Scenarios and After-sales Service

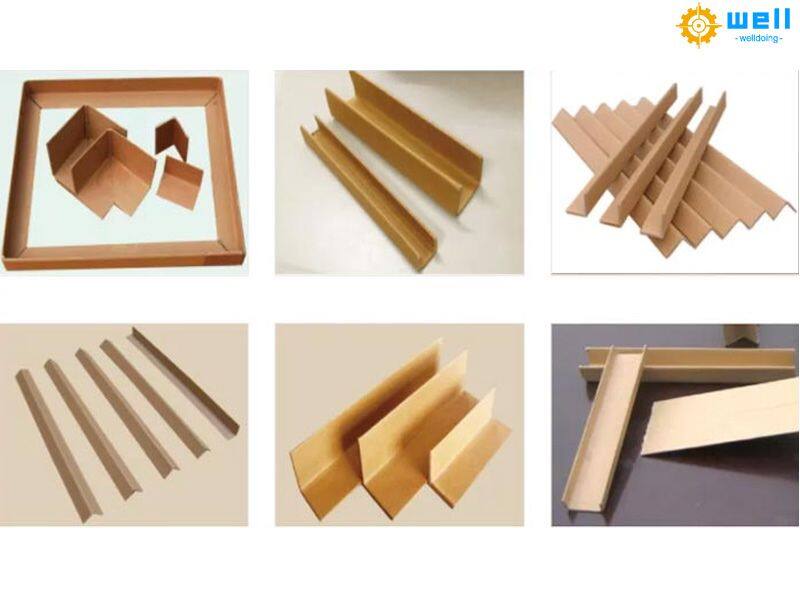

The L-shaped paper protectors produced by this machine are widely applicable to the outer packaging protection of furniture, ceramic tiles, glass, electronic equipment, carton goods, building materials and other products. They can be used for pallet binding protection, cargo corner fixing, stacking compression resistance and other scenarios, which can significantly reduce the cargo damage rate in logistics and transportation.
In terms of service, the equipment enjoys a one-year full-machine warranty and lifelong technical follow-up service. The factory provides 24-hour online technical support, and supports customized machine parameters and mold development according to customer needs. The equipment is packed with film and honeycomb board for seaworthy packaging to ensure safe transportation, with a conventional delivery cycle of 40 working days.
In general, this L Shape Paper Edge Protector Machine has outstanding advantages in efficiency, stability and cost performance. It is ideal processing equipment for packaging material factories and manufacturing enterprises to realize self-supporting packaging production, helping customers reduce packaging costs and improve product transportation safety.
