The Paper Edge Protector Machine is a fully automatic and high-efficiency packaging machinery specially designed for producing paper corner protectors. As an eco-friendly packaging solution equipment, it is widely used in logistics transportation, commodity packaging, furniture, building materials, electronic appliances and other industries. The paper edge protectors produced by this machine can effectively protect product edges and corners, strengthen packaging structure stability, improve stacking load-bearing capacity, and greatly reduce product collision damage, extrusion deformation and wear during storage and long-distance transportation. Featuring environmental protection, low cost and high durability, the machine has become essential core equipment for supporting and protective packaging in the global packaging industry.

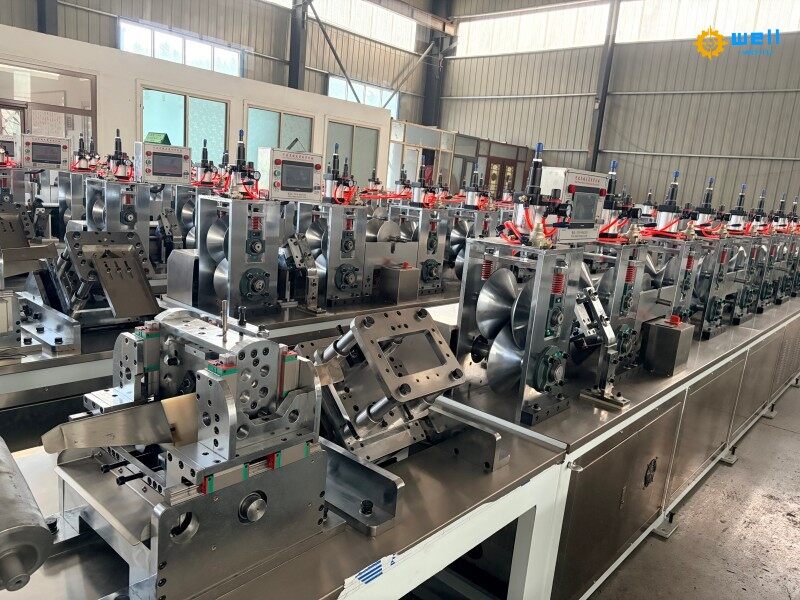

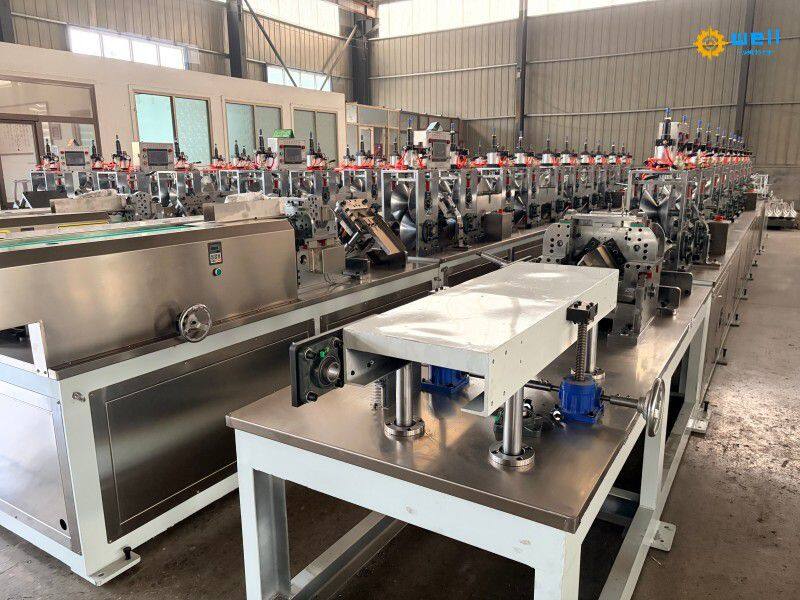

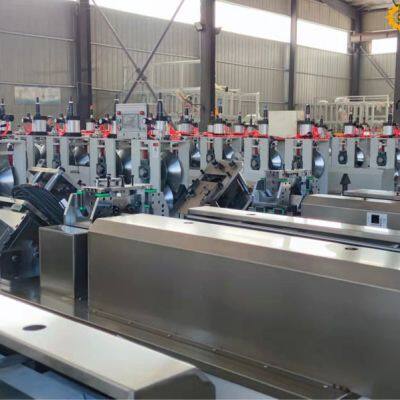

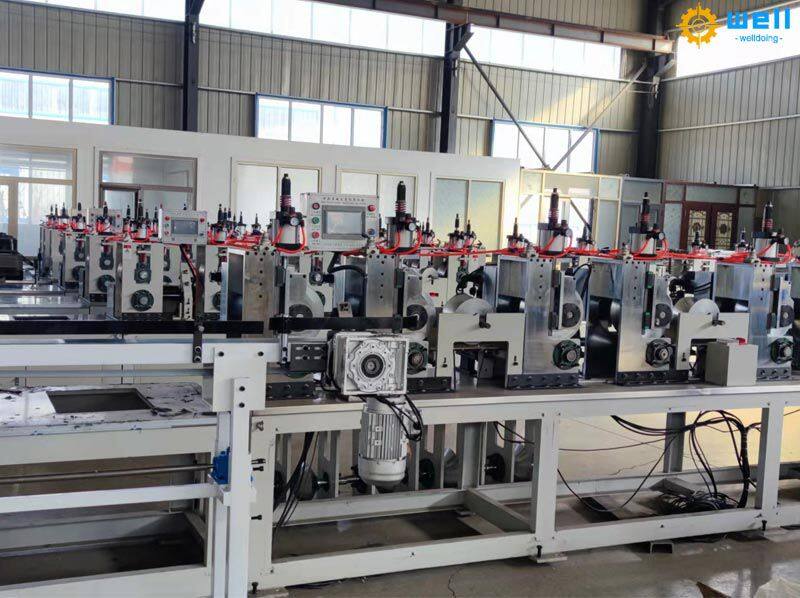

This machine adopts integrated mechanical design, combining automatic paper feeding, precise glue coating, one-time forming, constant-temperature drying, fixed-length cutting and automatic stacking. It realizes continuous unmanned production with stable operation, simple operation and low failure rate. All core components adopt international standard accessories, which ensures long-term high-speed and stable operation of the equipment, meeting the mass production needs of medium and large packaging factories.
1. Working Principle & Core Structure

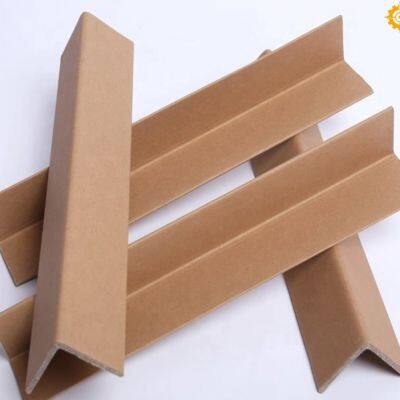

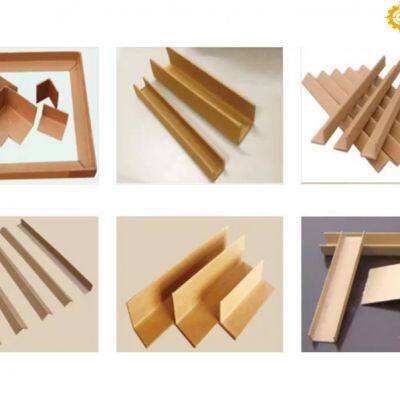

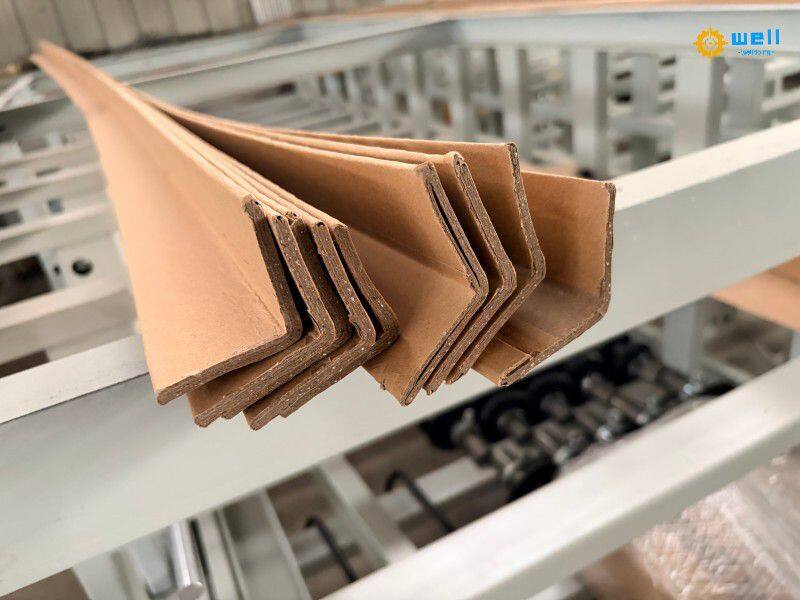

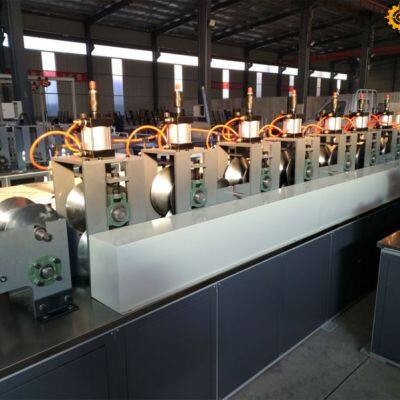

The complete production process is fully automated without manual intervention. The raw paper rolls are automatically and stably fed by the paper unwinding frame. The high-precision glue coating system evenly sprays environmental-friendly glue on the paper surface to ensure firm lamination without degumming. Then multiple layers of raw paper are compounded and sent to the forming mechanism, which presses the paper into standard L-shaped, U-shaped and V-shaped paper edge protectors through customized forming molds. After constant-temperature hot air drying, the glue is quickly solidified to shape the products. Finally, the servo cutting system performs fixed-length precise cutting, and the finished products are automatically stacked and collected by the stacking device.
The whole production process is smooth and efficient, with uniform product forming, stable glue coating and neat incision, which effectively guarantees the consistent quality of finished paper protectors.
2. Main Technical Parameters
We adopt the mainstream high-speed stable model in the international market, with flexible adjustable parameters to meet the customized production needs of different sizes of paper edge protectors. The detailed technical specifications are as follows:
Parameter Item |
Technical Specification |
|---|---|
Machine Model |
High-speed Standard Model |
Production Speed |
0-50m/min (stable working speed: 35-40m/min) |
Protector Width Range |
25mm-100mm (customizable symmetric & asymmetric size) |
Protector Thickness Range |
2mm-10mm (adjustable freely) |
Applicable Raw Paper |
175-250g/㎡ kraft face paper, 360-600g/㎡ corrugated inner paper |
Paper Roll Core Diameter |
76mm (3 inches, standard international size) |
Cutting Accuracy |
±1mm (servo precision control) |
Power Supply |
380V/50Hz (customizable for different countries) |
Total Power |
18KW |
Machine Weight |
2800KG |
3. Core Product Advantages
High Production Efficiency: Equipped with servo frequency conversion speed regulation system, the machine supports high-speed continuous production. The stable working speed meets large-order production demands, greatly improving production capacity and reducing production cycle.
Stable Product Quality: The precision glue coating system ensures uniform glue distribution and firm paper lamination. The fixed mold forming technology makes the product shape regular and standardized, with flat surface and neat cutting end, fully complying with international packaging export standards.
Easy Operation & Low Maintenance: Equipped with intelligent touch screen control panel, parameter adjustment is simple and intuitive. One-key start/stop operation reduces manual operation difficulty. The overall structure is reasonable with low wear and long service life, effectively reducing later maintenance cost and downtime loss.
Green & Energy Saving: Adopts energy-saving heating and power-saving control system, with low energy consumption. The produced paper edge protectors are recyclable, degradable and pollution-free, conforming to global environmental protection packaging policies.
4. Wide Application Scenarios
The paper edge protectors produced by this machine are widely applicable to edge protection and packaging reinforcement for cartons, wooden cases, steel plates, glass, furniture, ceramic tiles, electronic products and other goods. They can effectively prevent corner collision and edge wear during container transportation, pallet stacking and cargo handling, improve the overall grade of product packaging, and reduce cargo damage rate for export trade. It is an ideal supporting equipment for packaging factories, logistics companies and manufacturing enterprises for export business.
5. After-sales Service
We provide one-stop foreign trade service, including factory pre-sale technical guidance, machine installation and commissioning, operation training, overseas after-sales support and long-term spare parts supply. All machines are strictly tested before delivery to ensure stable performance and meet the production standards of global customers.
Overseas manager: Tom Wang
Email:cartonmachine.tomwang@aliyun.com
Phone/Wechat/Whatsapp:+86 133 0307 8975
