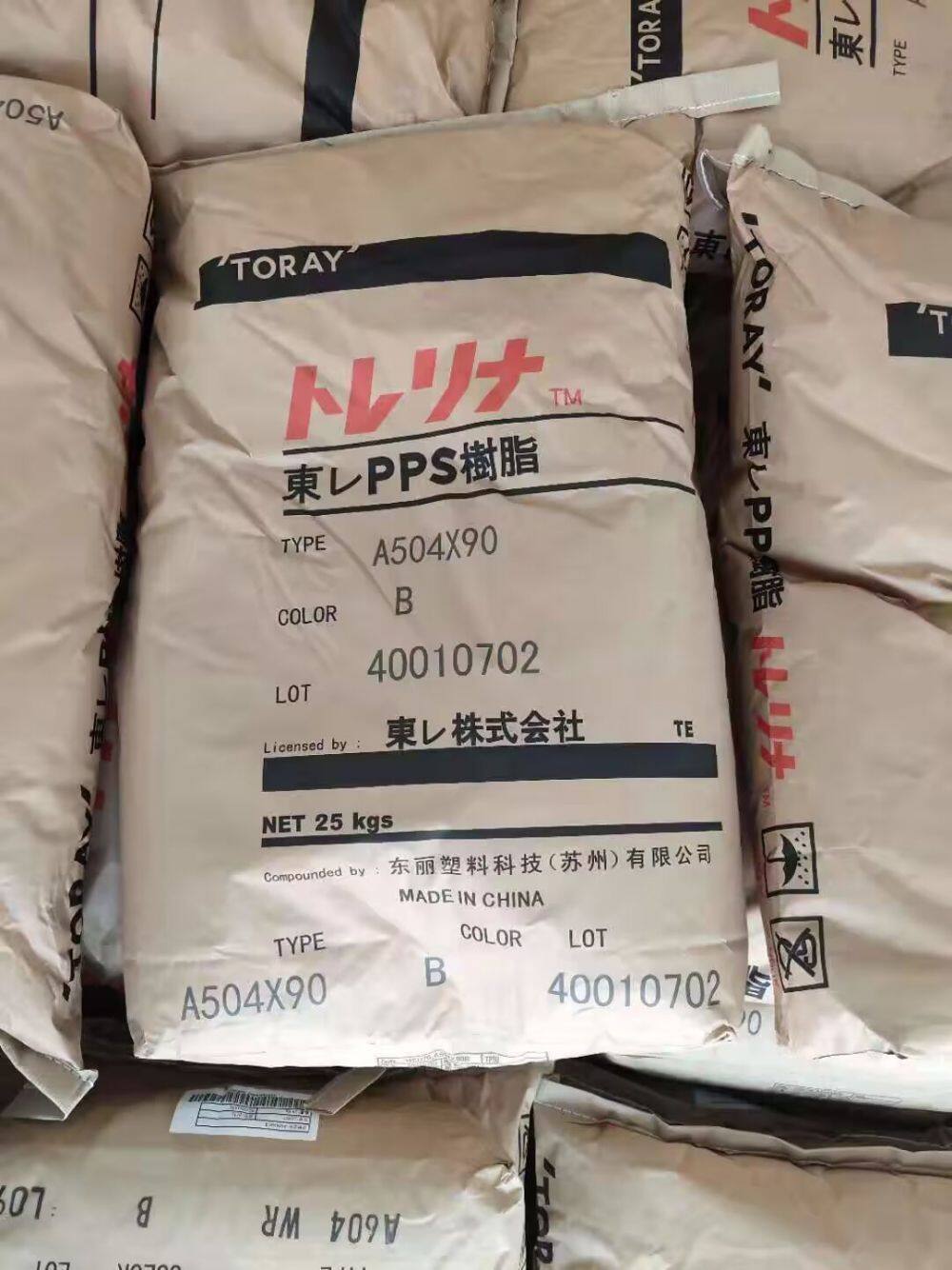

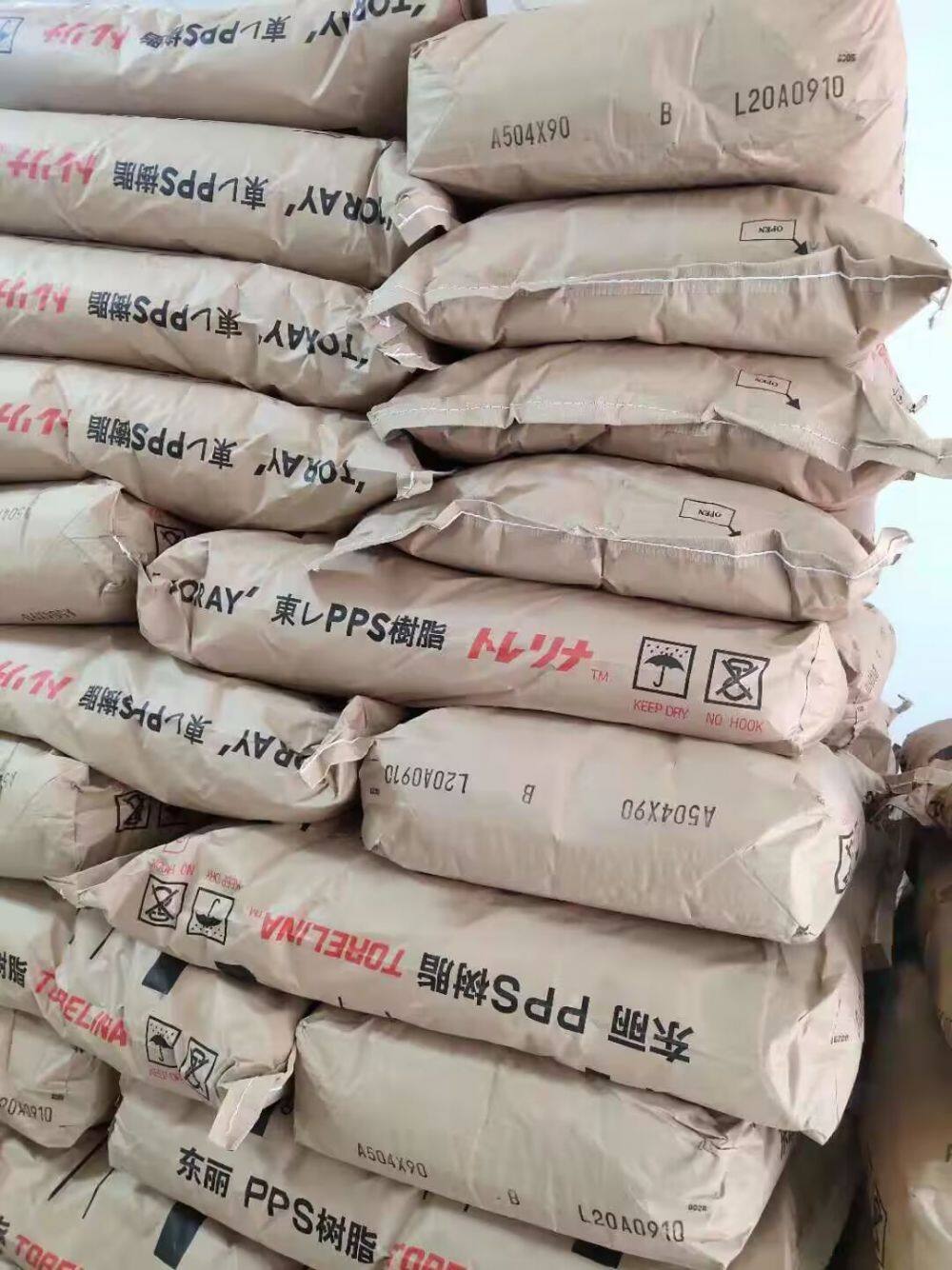

As a specialized plastic materials supplier based in Shanghai, Shanghai Yunshan Plasticizing Co., Ltd. proudly presents Toray PPS A504X90B – an engineering thermoplastic specifically engineered for demanding automotive fuel system applications. This premium-grade resin has undergone rigorous SAE J2527 weathering testing, demonstrating exceptional performance under simulated environmental conditions. Our technical team has verified its outstanding chemical resistance against modern biofuels and hydrocarbon fluids, making it a reliable solution for critical components like fuel pumps, connectors, and delivery modules.
Core Technical Specifications:
Material Base: Semi-crystalline polyphenylene sulfide polymer
Reinforcement: Glass fiber reinforced formulation
Continuous Use Temperature: Up to 220°C (428°F)
Flammability Rating: UL94 V-0 compliant
| Property | Test Method | Value |
|---|---|---|
| Tensile Strength | ASTM D638 | 150 MPa |
| Flexural Modulus | ASTM D790 | 11,000 MPa |
| HDT @ 1.82 MPa | ASTM D648 | 260°C |
Performance Advantages:
Extended service life in aggressive fuel environments
Maintained dimensional stability across thermal cycles
Reduced permeation compared to conventional nylons
Superior resistance to automotive chemicals and lubricants
Frequently Asked Questions:
Q: How does SAE J2527 testing benefit fuel system components?
A: This accelerated weathering test simulates years of environmental exposure, validating long-term performance retention.Q: What processing methods are suitable for this material?
A: A504X90B is optimized for injection molding processes with standard PPS equipment.Q: Does it meet ethanol fuel compatibility requirements?
A: Testing shows excellent resistance to E10-E25 ethanol blends and biodiesel mixtures.Q: What is the typical delivery format?
A: Material is supplied in sealed moisture-resistant packaging as free-flowing pellets.
Shanghai Yunshan Plasticizing maintains comprehensive technical documentation including material certifications and processing guidelines. Our Shanghai-based logistics center ensures reliable supply chain support for automotive tier suppliers throughout China and internationally. For component designs requiring verified fuel resistance and weathering performance, Toray A504X90B delivers quantifiable reliability advantages.
