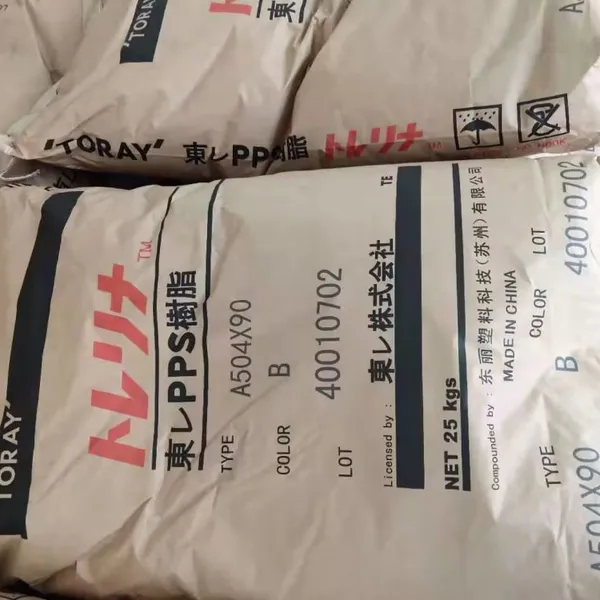

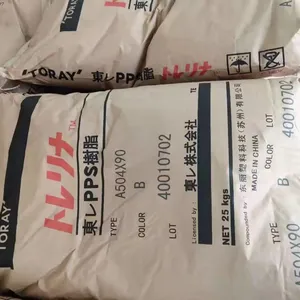

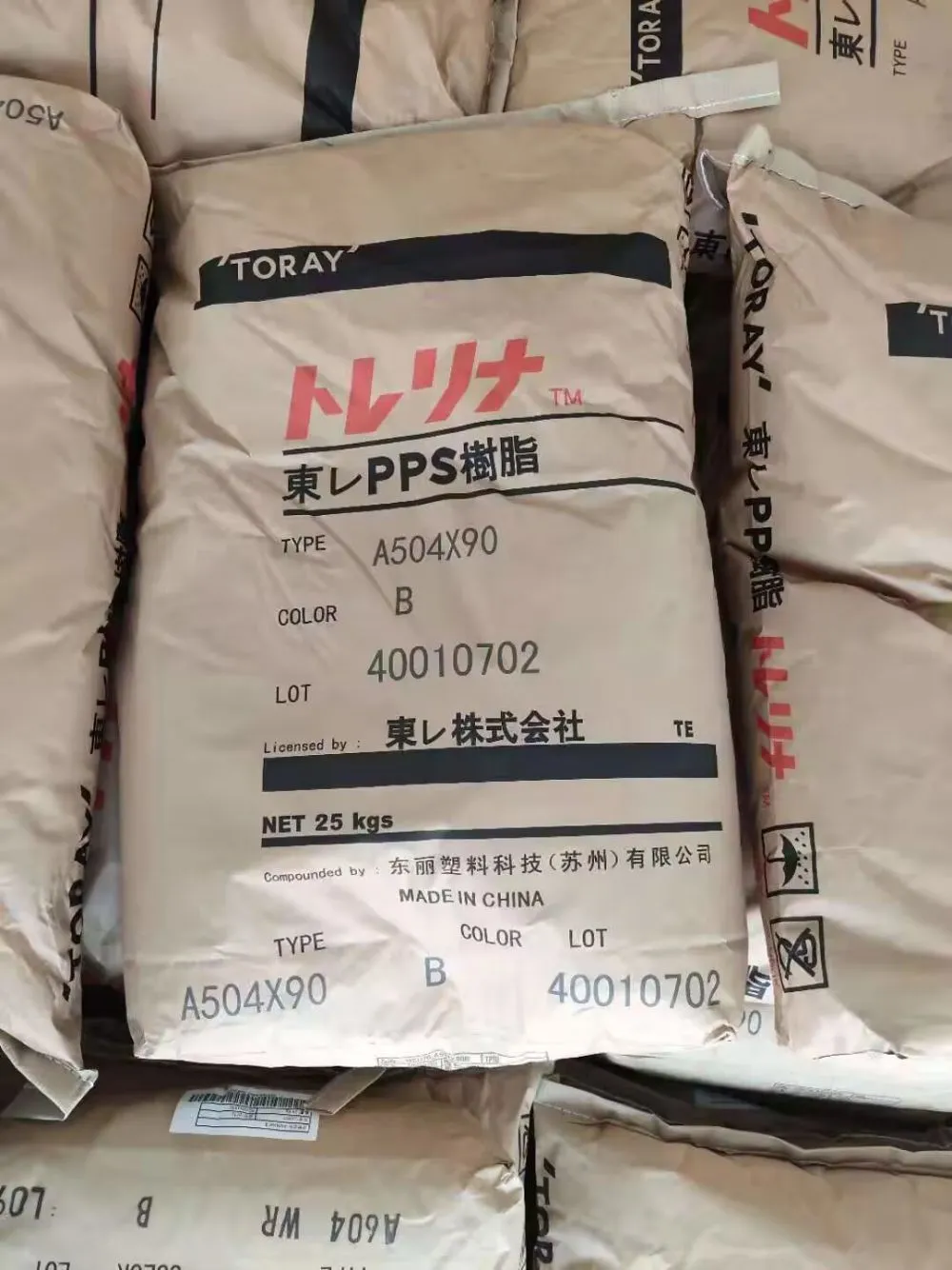

As a specialized polymer supplier based in Shanghai, China, Shanghai Yunshan Plasticizing Co., Ltd. proudly presents Toray PPS A504X90 injection molding granules. This high-performance engineering thermoplastic combines exceptional thermal stability with UL94 V-0 flame resistance, making it an ideal solution for demanding applications where safety and reliability are paramount. Our commitment to quality ensures that every batch meets rigorous industry standards, providing OEMs and manufacturers with consistent material performance for critical components.
The Toray A504X90 PPS grade delivers outstanding properties that address key challenges in high-temperature environments:
- Excellent heat resistance maintaining mechanical properties up to 220°C
- Superior flame retardancy without halogen additives
- Remarkable chemical resistance against fuels, solvents, and acids
- Exceptional dimensional stability with low moisture absorption
- High rigidity and creep resistance for structural applications
Technical specifications of A504X90 include:
| Property | Value | Test Method |
|---|---|---|
| Melting Point | 280-290°C | ASTM D3418 |
| Density | 1.64 g/cm³ | ISO 1183 |
| Tensile Strength | 75 MPa | ISO 527 |
| Flame Rating | UL94 V-0 (1.5mm) | UL 94 |
| CTI | >600 V | IEC 60112 |
Manufacturers benefit from this material through:
- Enhanced safety compliance for electrical/electronic components
- Reduced secondary operations due to excellent mold release properties
- Long-term performance in harsh chemical environments
- Improved production efficiency with fast cycle times
With over a decade of polymer expertise, Shanghai Yunshan Plasticizing maintains strict quality control protocols for every shipment of Toray PPS granules. Our technical team provides comprehensive material data sheets and processing guidelines to ensure optimal molding results. Located in China's industrial hub, we offer responsive logistics support throughout Asia and globally.
For automotive sensor housings, electrical connectors, pump components, and other applications requiring UL-certified flame retardancy, A504X90 delivers reliable performance batch after batch. Contact our Shanghai office today to discuss your specific requirements and request samples for material evaluation.
Frequently Asked Questions:
-
Q: What is the minimum order quantity?
A: Standard MOQ is 500kg, with partial pallet options available. -
Q: Can this material be used for food contact applications?
A: This specific grade is not food-grade certified. We offer alternative PPS grades for food contact. -
Q: What drying conditions are recommended?
A: Typical drying parameters are 140-150°C for 3-4 hours with dew point maintained below -30°C. -
Q: Is this material compatible with glass reinforcement?
A: A504X90 is available in both unfilled and glass-filled versions (customizable upon request). -
Q: What lead time can be expected?
A: Standard grades ship within 2-3 weeks from order confirmation. -
Q: How does PPS compare to PEEK in cost-performance ratio?
A: PPS offers approximately 40% cost savings while maintaining similar thermal and chemical resistance up to 220°C.
