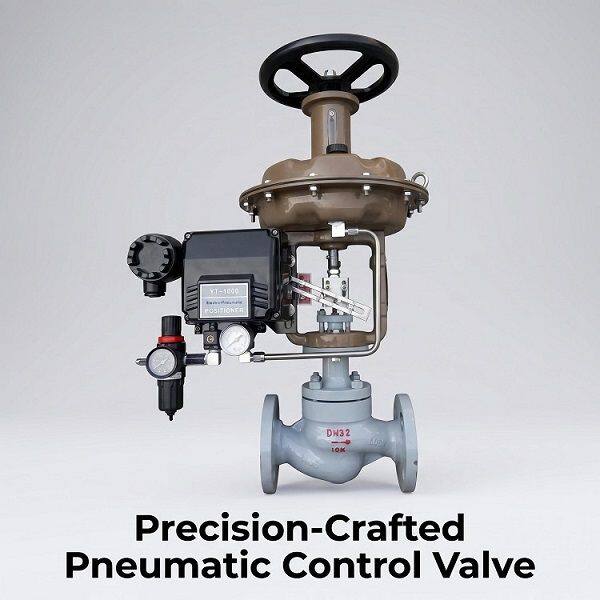

As a specialized manufacturer since 2016, Shanghai Zhibang Valve Manufacture Co., Ltd. delivers high-performance Stainless Steel JIS Pneumatic Control Valves with integrated Flow Meters, engineered specifically for demanding industrial environments. Our valves combine precision flow control with real-time measurement capabilities, offering unmatched reliability in sectors where corrosion resistance and accuracy are paramount. With an annual export value of US$1 Million - US$1.5 Million to global markets, we've refined our manufacturing processes to meet international standards while maintaining competitive pricing.
Core Product Advantages:
- Superior Durability: 304 stainless steel construction ensures exceptional resistance to corrosive chemicals, high-pressure conditions, and extreme temperatures (-20°C to 150°C)
- Precision Engineering: JIS-compliant design guarantees consistent performance and compatibility with industrial pneumatic systems worldwide
- Integrated Flow Monitoring: Real-time flow measurement eliminates the need for separate monitoring equipment
- Low Maintenance Design: Self-cleaning mechanism reduces particle accumulation in fluid lines
Technical Specifications:
| Parameter | Specification |
|---|---|
| Pressure Range | 0.1 - 1.0 MPa |
| Flow Accuracy | ±2% of full scale |
| Response Time | < 2 seconds |
| Leakage Rate | Class IV (ANSI) |
| Port Connection | NPT, BSPP, BSPT available |
This control valve solution delivers three significant operational benefits: reduced installation complexity through integrated flow metering, decreased maintenance costs via corrosion-resistant materials, and enhanced process control accuracy. The fail-safe pneumatic actuator design prevents uncontrolled flow during power interruptions, while the stainless steel body withstands frequent sterilization cycles in pharmaceutical applications. Customizable options include various port configurations, extended temperature range versions, and explosion-proof certifications for hazardous environments.
Frequently Asked Questions:
-
Q: What materials are certified for food contact applications?
A: Our 304 stainless steel components meet FDA requirements for food processing environments. -
Q: Can I get customized port configurations?
A: Yes, we offer NPT, BSPP, and BSPT threading upon request with MOQ requirements. -
Q: What is the typical maintenance interval?
A: Under normal operating conditions, maintenance is recommended every 12-18 months. -
Q: Are these valves suitable for viscous fluids?
A: Specialized versions with larger flow passages are available for high-viscosity applications. -
Q: Do you provide calibration certificates?
A: Factory calibration certificates are included with each unit, with NIST traceable options. -
Q: What is the lead time for bulk orders?
A: Standard configurations ship within 15 working days; custom orders require 25-30 days.
Backed by ISO9001 certification and extensive experience supplying to North American, European, and Asian markets, our valves have demonstrated reliability in over 20 industrial sectors. With shipments available from Shanghai, Guangzhou, Hong Kong, and Beijing ports, we ensure timely delivery to global customers. The combination of precision flow control and integrated measurement capability makes this solution particularly valuable for batch processing applications where ingredient accuracy impacts product quality. Contact our engineering team today to discuss your specific application requirements and receive technical documentation.
