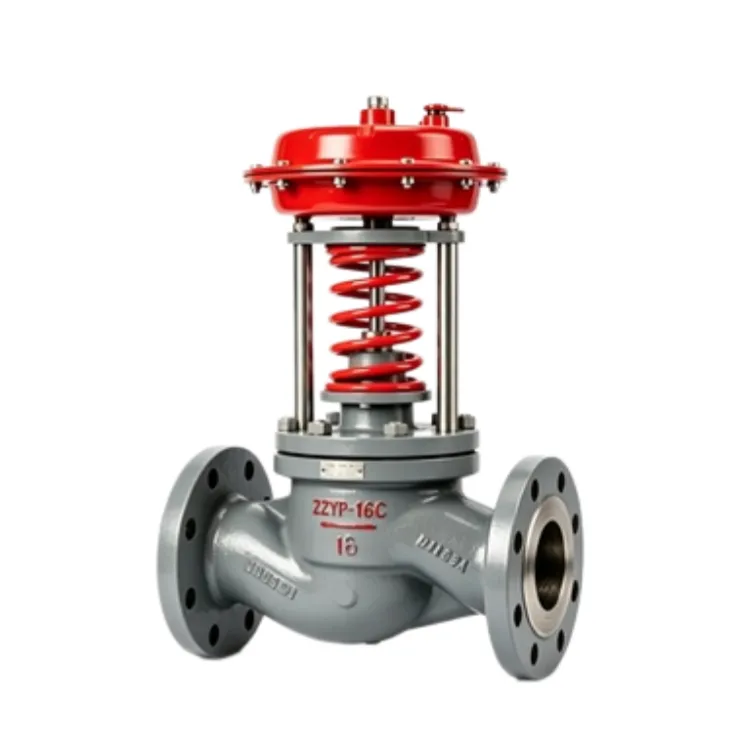

As a leading manufacturer with ISO9001 certified production since 2016, Shanghai Zhibang Valve Manufacture Co., Ltd. proudly introduces the ZZYP-16C Self-operated Pressure Regulating Valve. This valve represents our commitment to providing reliable, cost-effective pressure control solutions for industrial applications worldwide. With an annual export value demonstrating our global reach across North America, South America, Europe, Asia, Africa, and Oceania, we understand the diverse needs of different markets and applications. The ZZYP-16C is engineered specifically for systems where external power sources are unavailable or undesirable, offering autonomous pressure regulation through its innovative internal pilot design.
The ZZYP-16C valve operates entirely on process fluid energy, eliminating the need for external instrument air or electrical power. This makes it an ideal solution for remote locations, hazardous areas, or applications where simplicity and reliability are paramount. The internal pilot mechanism is the core of its operation, providing sensitive response to downstream pressure changes and ensuring stable regulation.
Key Technical Features and Advantages:
- Autonomous Operation: Requires no external power source (air or electricity), reducing installation complexity and operational costs.
- Internal Pilot Design: The integrated pilot system provides precise control by directly sensing downstream pressure, resulting in faster response times and improved stability compared to some external pilot systems.
- Rugged Construction: Built with durable materials to withstand demanding industrial environments, ensuring long service life and minimal maintenance.
- Wide Application Range: Suitable for various media including steam, water, oil, gas, and non-corrosive chemicals within its specified temperature and pressure limits.
- Easy Installation and Set-up: Designed for straightforward installation into existing pipelines. The set point can be adjusted easily on-site without requiring complex tools.
- Fail-Safe Design: Engineered to fail in a predictable manner (typically to close or open, depending on configuration) in case of component failure, enhancing system safety.
Technical Specifications Table:
| Parameter | Specification / Value |
| Model | ZZYP-16C |
| Pressure Rating | PN16 (Approx. 16 bar / 232 psi) |
| Valve Size Range | DN15 (1/2") to DN200 (8") commonly available |
| Connection Standard | Flanged per ANSI B16.5 or DIN, Threaded options (NPT, BSP) |
| Body Material (Standard) | WCB Carbon Steel |
| Trim Material (Standard) | Stainless Steel (304/316 optional) |
| Media Temperature | -20°C to 200°C (-4°F to 392°F) |
| Control Accuracy | Typically within ±5% of the set pressure point |
| Regulated Pressure Range | Adjustable, specific range depends on spring selection |
How It Benefits Your Operation:
- Cost Reduction: Eliminates ongoing costs for instrument air or electricity, and reduces maintenance associated with complex control systems.
- Enhanced Reliability: Fewer components and no external dependencies mean fewer points of failure, leading to higher uptime for your processes.
- Simplified System Design: Allows for more compact and less expensive piping and instrumentation diagrams (P&IDs).
- Improved Safety: The self-contained nature is advantageous in explosive or flammable atmospheres where electrical equipment poses a risk.
- Process Stability: Maintains consistent downstream pressure, protecting sensitive equipment and ensuring product quality in manufacturing processes.
Frequently Asked Questions (FAQ):
Q1: What is the main difference between a self-operated valve and a control valve with a positioner?
A1: A self-operated valve like the ZZYP-16C uses the energy from the process fluid itself to position the valve plug and regulate pressure. A control valve with a positioner requires an external power source (pneumatic air or electricity) and a separate controller to send a signal, making it part of a more complex control loop.
Q2: Can the ZZYP-16C be used for reducing pressure, relieving pressure, or both?
A2: The ZZYP-16C is primarily designed as a pressure reducing regulator. It takes a higher inlet pressure and maintains a stable, lower set pressure downstream. For overpressure protection (relieving), a different type of valve, such as a safety relief valve, would be required.
Q3: How do I adjust the set pressure on this valve?
A3: Adjustment is typically done by turning an adjustment screw on the top of the valve, which compresses or relaxes the internal spring. A pressure gauge installed downstream is necessary to monitor the set point during adjustment. Always refer to the specific installation and maintenance manual for detailed procedures.
Q4: Is this valve suitable for steam service?
A4: Yes, the ZZYP-16C can be configured for steam service. It is important to specify this requirement when ordering, as it may influence material selections (e.g., specific gasket materials) and the design of certain internal components to handle higher temperatures effectively.
Q5: What maintenance is required for this self-operated regulator?
A5: Maintenance requirements are generally minimal. Periodic checks are recommended to ensure the valve is holding the set pressure and that there are no external leaks. Internally, the diaphragm and seals may require inspection or replacement after extended service, depending on the application's severity. The robust design aims for long intervals between maintenance.
Q6: Can you provide custom materials or connections for specific applications?
A6> Yes, as a manufacturer, we offer customization options. Alternative body materials like stainless steel (CF8/CF8M) or special trim materials can be provided. Connection types and standards can also be tailored, such as different flange ratings (PN25, PN40) or threaded connections, to meet project specifications. Please inquire with your specific requirements.
Q7: What is the typical delivery time for this product?
A7: Delivery time varies based on order quantity, valve size, and any customization. Standard configurations in common sizes may have shorter lead times. We ship globally from major ports like Shanghai, Guangzhou, and Hong Kong, facilitating efficient logistics to our main markets worldwide.
Q8: Does the valve come with any factory testing or certification?
A8> Our manufacturing process is ISO9001 certified, ensuring consistent quality control. Valves can undergo standard factory tests, such as shell tests and seat leakage tests, according to common industry standards like API 598. Specific test reports or certifications can be discussed and provided upon request.
Backed by our ISO9001 quality management system and years of experience serving a global clientele from North America to Oceania, the ZZYP-16C is a proven solution for dependable pressure regulation. Our position as a manufacturer allows for competitive pricing, reliable supply, and the flexibility to meet specific customer needs. Choosing the ZZYP-16C means investing in a valve that simplifies your system, reduces operational costs, and enhances reliability. We invite you to contact us to discuss how this self-operated pressure regulating valve can be integrated into your application, request detailed specifications, or obtain a quotation tailored to your project requirements.
