Operating principle
The materialis forced into the crush cavity by a high-speed rotation of the pendulum impact through the screw feeder, and at the same time by the shearing action between the hammer and on the tooth plate, at the role of the material in the vortex flow within the alveolus and the mutual friction force collisions so that the material can reach crusher. The finished product is discharged from the bottom of the machine, in the lower part of the screen can be adjusted and control of product particle size.
Performance characteristics
1.The machine is suitable for solid materials of soft mineral, brittle material, fibrous and so on, the gravel extraction for the agglomeration materials.
2.Type Ⅰ machine shell has jacket water cooling may be appropriate to reduce the temperature inside.
3.A variety of aperture sieve to control and regulate the product size, the product size can also be adjusted by changing the revolving speed.
4.It can be specifically designed for various combinations of devices to suit a variety of materials and the needs of users
Scope of application
It can be used for pesticides, fertilizers, dyes, pigments, paints, pharmaceuticals, plastics, ink, spices,feed, adhesives, cosmetics, fibrous materials, sanitary materials, leather, dental materials,grease, paper, refractories, insect repellent, sericulture, building materials, electronic parts, metallurgical minerals., catalysts, batteries, electrical equipment, insulation materials, agriculture, forestry, livestock products, marine products, food, condiments, food, tea, candy, additives, and additives.
Technical parameters
| Parameter/Model | JF-300-I | JF-300-II | JF-610-Ⅳ | JF-610-Ⅵ |
| The diameter of crushing chamber（mm） | 300 | 300 | 610 | 610 |
| Power（ KW） | 15 | 18.5 | 37(45) | 110 |
| Spindle speed（ r/min） | 6500 | 6500 | 3450 | 3450 |
The number of hammer pc |
24 | 24 | 96 | 144 |
| Amount of wind（m3/h） | 1174 | 1610 | 2887 | 3849 |
| Production capacity（Kg/h） | 20-200 | 100-600 | 100-1000 | 150-1500 |
| Granularity size（μm） | ≥45 | ≥45 | ≥45 | ≥45 |
Weight(kg) |
750 |
950 | 2300 | 2510 |
| Dimensions( L*W*H mm) | 1480*1280*1490 | 1475*1465*1485 | 1850*1730*1626 | 2440*1453*1850 |

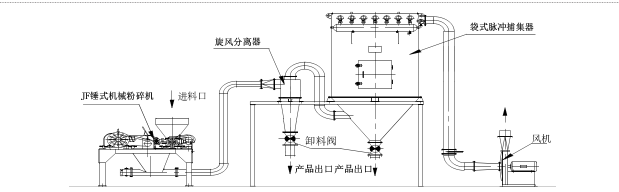

Wokflow sketch
