Help CenterProduct Name: U-type Screw Conveyor / Inclined Screw Conveyor
Product Spotlights
2. Closed & Dust-free Conveying: U-shaped trough can be covered and sealed, eliminating dust leakage and realizing clean conveying
Related Products
-
Product Name: Tubular Inclined Screw Feeder / Closed Screw ConveyorNegotiableMOQ: 1 Set -
Product Name: Multi-outlet Screw FeederNegotiableMOQ: 1 Set
-
Product Name: Custom Non-standard Screw ConveyorNegotiableMOQ: 1 Set
-
Product Name: Horizontal Screw FeederNegotiableMOQ: 1 Set
-
Pneumatic Phoxinus Phoxinus Subsp. Phoxinus Utetheisa Kong Feeding MachineNegotiableMOQ: 1 Set

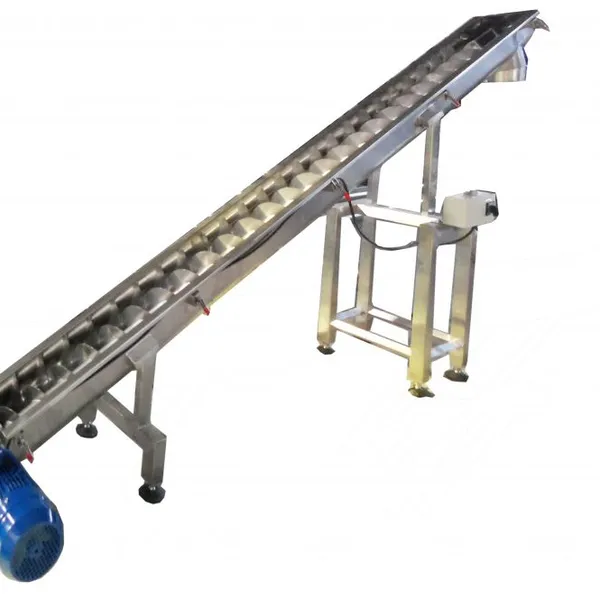

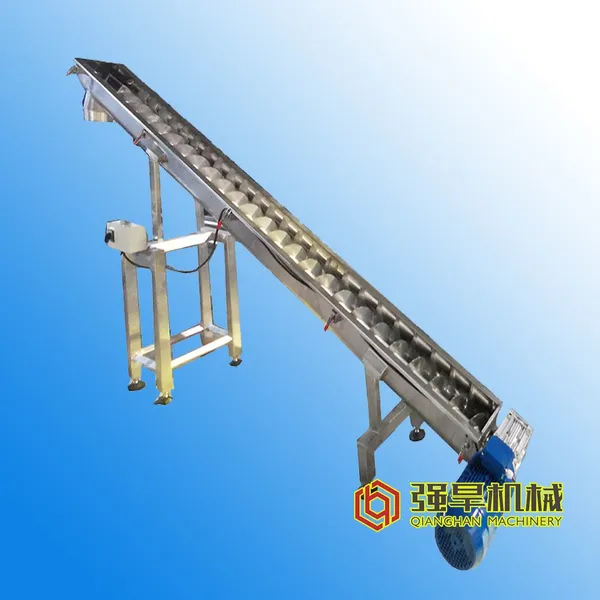

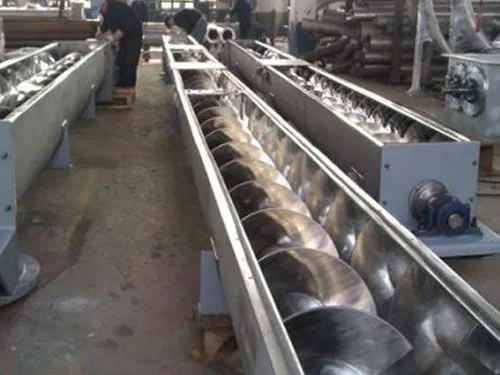

Equipment Overview: This equipment is an inclined continuous conveying device, made of SUS304/SUS316L stainless steel with U-shaped trough and screw blade structure. It can realize inclined lifting and conveying of powder, granular and small block materials, widely used in material conveying and lifting in chemical, pharmaceutical, food, building materials and other industries.
Working Principle: The motor drives the screw blades to rotate, pushing the materials forward along the U-shaped trough. The inclined layout can realize the lifting and conveying of materials from low to high positions. The trough can be covered and sealed to realize dust-free and closed conveying.
Core Parameters: Conveying capacity: 1-10m³/h; Inclination angle: 0-45° (customizable); Material: SUS304/SUS316L stainless steel/carbon steel; Screw diameter: Φ100-Φ600mm; Conveying distance: horizontal ≤30m, vertical ≤10m; Drive mode: motor + reducer
Application Fields: Chemical industry (pigments, carbon black, catalysts), pharmaceuticals (API, pharmaceutical excipients), food (condiments, meal replacement powder, grains), building materials (cement, putty powder) and other industries, especially suitable for inclined lifting and closed conveying of powder and granular materials.
