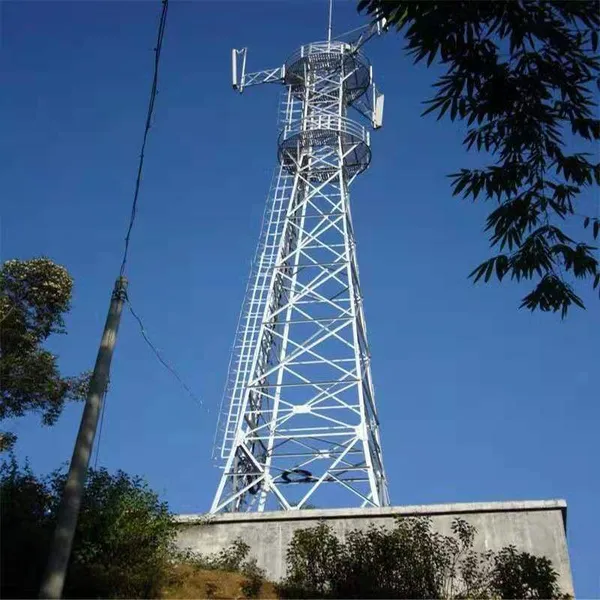

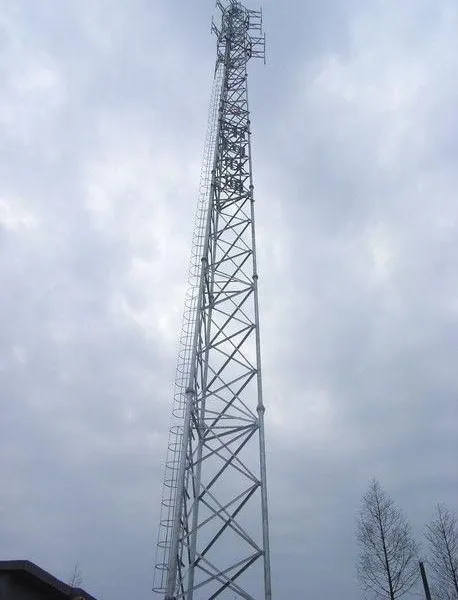

High-quality Triangular Steel Pipe Towers, Used for Communication Base Stations Communication Tower Manufacturers

High-quality Triangular Steel Pipe Towers, Used for Communication Base Stations Communication Tower Manufacturers thumbnail-1
High-quality Triangular Steel Pipe Towers, Used for Communication Base Stations Communication Tower Manufacturers thumbnail-2
High-quality Triangular Steel Pipe Towers, Used for Communication Base Stations Communication Tower Manufacturers thumbnail-3
High-quality Triangular Steel Pipe Towers, Used for Communication Base Stations Communication Tower Manufacturers thumbnail-4
High-quality Triangular Steel Pipe Towers, Used for Communication Base Stations Communication Tower Manufacturers thumbnail-5
High-quality Triangular Steel Pipe Towers, Used for Communication Base Stations Communication Tower Manufacturers photo-1
High-quality Triangular Steel Pipe Towers, Used for Communication Base Stations Communication Tower Manufacturers photo-2
High-quality Triangular Steel Pipe Towers, Used for Communication Base Stations Communication Tower Manufacturers photo-3
High-quality Triangular Steel Pipe Towers, Used for Communication Base Stations Communication Tower Manufacturers photo-4
High-quality Triangular Steel Pipe Towers, Used for Communication Base Stations Communication Tower Manufacturers photo-5
US$ 1120 ≥1020 Metric Tons
Key Specifications
Get Latest Price
Feature:
Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, recyclable
After-sales Service:
Lifetime technical support and maintenance consultation are available.
Connection Form:
Bolt Connection
Contact Supplier Request Quote Chat Now
Hengshui Chizhen Steel Structure Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Feature Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, recyclable
After-sales Service Lifetime technical support and maintenance consultation are available.
Connection Form Bolt Connection
Install Support Installation
Transport Package Secure bundling with steel straps, no displacement during transportation.
Specification 5-50m
Trademark chizhen
Origin hengshui

1、Core Features

  1. Adopts seamless steel pipe as column material, with small wind load coefficient and excellent wind resistance.

  2. Tower columns connected by external flanges & bolts, not easy to damage, low maintenance cost.

  3. Triangular layout design, effectively saving steel consumption.

  4. Small foundation & floor area, saving land resources and easy site selection.

  5. Light weight with new three-blade foundation, reducing foundation cost.

  6. Truss structure, easy for transportation & installation, short construction period.

  7. Optimized wind load curve with smooth lines, strong wind disaster resistance, high safety.

  8. Designed in accordance with national steel structure & tower codes, safe and reliable.

2、Product Highlights


  1. Leading professional design concept.

  2. Multi-functional modular design, flexible accessory configuration.

  3. Support tower group design, modification and adjustment.

  4. Universal tower sections, fully compatible among different tower types.

  5. Lightweight self-supporting structure, cost-effective.

  6. Reasonable installation cost & short installation time.

  7. High structural reliability, 50-year design service life.

  8. Design and processing comply with ISO 9001:2000 quality management system.

3、Technical Details

  1. Design Standard: TIA/EIA-222-G/F

  2. Welding Standard: AWS D1.1

  3. Galvanizing Standard: ASTM A123

  4. Design Wind Speed: Up to 200 km/h

  5. Steel Material:

  • Low carbon steel: Q235B / ASTM A36 / S235JR

  • High-strength steel: Q345B / ASTM A572 / S355JR


  • Allowable Deflection: 0.5 ~ 1.0 degree

  • Bolt Grade: Grade 4.8, Grade 6.8, Grade 8.8

    • 4、Applicable Antenna Types

    1. Panel Antenna (Sector Antenna): GSM / 5G antenna

    2. Parabolic Dish Antenna: Microwave antenna (Φ0.6m–2.4m)

    3. RRU (Remote Radio Unit)

    4. WIFI Antenna: Directional / Yagi / Omnidirectional antennaWIFI

    5. Other Antennas: VHF/UHF dual-band antenna, FM antenna


    Product Tags: Triangular Angle Steel Tower , Four-Leg Angle Steel Tower , Triangular Steel Pipe Tower
