Monopole Cell Tower

Monopole Cell Tower thumbnail-1
Monopole Cell Tower thumbnail-2
Monopole Cell Tower thumbnail-3

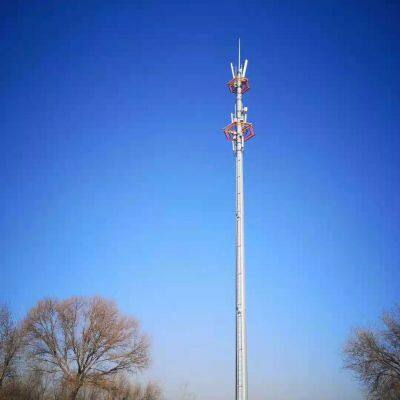

Monopole Cell Tower photo-1

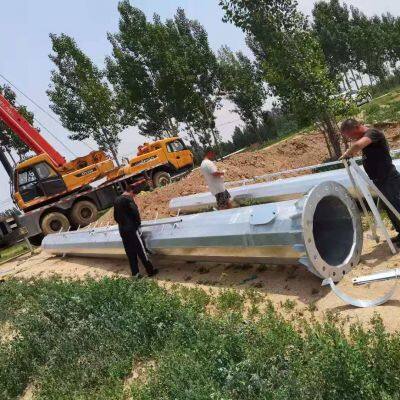

Monopole Cell Tower photo-2
Monopole Cell Tower photo-3
US$ 900 5 - 19 Metric Tons
US$ 850 20 - 99 Metric Tons
US$ 800 ≥100 Metric Tons
Key Specifications
Get Latest Price
Feature:
Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, recyclable
After-sales Service:
Lifetime technical support and maintenance consultation are available.
Connection Form:
Bolt Connection
Contact Supplier Request Quote Chat Now
Hengshui Chizhen Steel Structure Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port. Qingdao Port
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Feature Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, recyclable
After-sales Service Lifetime technical support and maintenance consultation are available.
Connection Form Bolt Connection
Install Support Installation
Transport Package Secure bundling with steel straps, no displacement during transportation.
Specification 5-50m
Trademark chizhen
Origin hengshui

1. Product Overview

Monopole Telecommunication Tower is an integrated columnar communication infrastructure, adopting seamless steel pipes or spiral welded pipes as the main structure. The tower body is cylindrical/conical with no redundant trusses or arms, specially designed for telecommunication signal transmission, 5G base station deployment, microwave communication and other scenarios. It features a compact structure and simple appearance, combining functionality and environmental adaptability, making it the preferred communication tower type for scenarios with space and aesthetic requirements such as cities, scenic spots and industrial parks.

2. Core Structural Features

  1. Main Material: Adopts high-quality low-carbon steel/high-strength steel Q235B/Q355B, or international standard steel such as ASTM A36/A572. The surface is treated with hot-dip galvanizing (complying with ASTM A123 standard) or anti-corrosion coating, featuring strong corrosion resistance and UV resistance, suitable for complex environments such as marine climate and high humidity.

  1. Structural Design:

  • Integrated monopole structure with no external nodes, wind load coefficient ≤0.3 (much lower than truss-type iron towers), excellent wind resistance, capable of withstanding typhoons above level 12 (maximum design wind speed 200 km/h).

  • The bottom of the tower is fixed to the foundation with large-diameter flanges, connected by bolts (bolt grade 8.8), firmly installed, and the seismic fortification intensity can reach 8 degrees.

  • Optional conical gradient design with small top diameter and large bottom diameter, balancing structural stability and material saving, saving more than 30% of steel compared with truss towers of the same height.

  1. Foundation Configuration: Adopts independent pile foundation or raft foundation, covering an area of only 3-8㎡ (about 1/5 of triangular angle steel tower), with low requirements on the site and flexible site selection.

  1. Functional Layout: The tower is reserved with antenna mounting brackets, RRU mounting platforms, ladders (with safety cages) and maintenance platforms, supporting integrated installation of multiple devices and flexible accessory configuration.

3. Key Technical Details

Item

Technical Specifications

Design Standard

TIA/EIA-222-G/F, GB 50017-2017 (Code for Design of Steel Structures)

Welding Standard

AWS D1.1 (American Welding Standard), GB/T 985-2018

Tower Height Range

15m - 60m (Customizable for ultra-high towers of 80m and above)

Steel Material

Low carbon steel: Q235B/ASTM A36/S235JR; High-strength steel: Q355B/ASTM A572/S355JR

Design Wind Speed

50 km/h - 200 km/h (Customizable by region)

Allowable Deflection

≤0.5° (Top horizontal displacement ≤1‰ of tower height)

Anti-corrosion Treatment

Hot-dip galvanizing (Zinc layer thickness ≥85μm) / Fluorocarbon paint spraying

Design Service Life

50 years

Maximum Bearing Capacity

Top bearing capacity for antennas + equipment ≤500kg (Upgradable)

Applicable Temperature Range

-40℃ ~ +60℃

Foundation Type

Pile foundation / Raft foundation / Counterweight foundation (No excavation scenario)

4. Core Product Advantages

  1. Strong Space Adaptability: Covers a small area, can be installed in narrow sites such as urban green belts, road sides, building roofs and scenic spot edges, no need for large-area land acquisition, reducing land cost by more than 60%.

  1. High Aesthetics: Simple columnar structure, can be sprayed with camouflage, wood-like or urban landscape colors according to the environment, integrating with surrounding buildings and natural environment to avoid visual abruptness, especially suitable for scenic spots, city centers and other scenarios with aesthetic requirements.

  1. Convenient Installation and Transportation:

  • The tower can be produced in sections and assembled on site, with each section weight ≤3 tons, which can be hoisted by ordinary cranes, and the installation period is only 2-3 days (truss towers of the same height require 5-7 days).

  • No need to disassemble complex components for transportation, can reach the site directly by road or railway, and the transportation cost is 25% lower than that of truss towers.

  1. Low Maintenance Cost: No exposed nodes and truss structures, reducing the risk of rain erosion and rust, only 1 routine inspection per year, and the maintenance cost is less than 1/3 of that of triangular angle steel towers.

  1. Multi-functional Compatibility: Supports integrated installation of panel antennas (GSM/5G), microwave antennas (Φ0.6m-2.4m), WIFI antennas, RRU equipment, etc., which can meet the signal coverage needs of multiple operators and multiple frequency bands, realizing "one tower for multiple uses".

  1. Reliable Quality Certification: Design, production and processing comply with ISO 9001:2000 quality management system. All steels, bolts and anti-corrosion materials have passed third-party testing, and the product is delivered with a quality certificate.

5. Applicable Scenarios

  1. Urban Communication Coverage: Urban main roads, residential areas, commercial centers, office building dense areas (preferred choice for 5G base station deployment);

  1. Special Environment Scenarios: Scenic spots, nature reserves, historical and cultural blocks (balancing functionality and aesthetics);

  1. Industrial and Transportation Hubs: Industrial parks, highway along lines, railway stations, airport surrounding areas;

  1. Suburban and Rural Coverage: Suburban towns, single-point coverage in remote areas (simple foundation construction, efficient deployment);

  1. Temporary Communication Needs: Large event venues, emergency rescue sites (quick installation and disassembly, reusable).

6. Installation & Transportation

  1. Transportation: The tower is packaged in sections (each section length 6-12m) with rainproof and moisture-proof packaging, supporting customs declaration and export from ports such as Qingdao Port and Tianjin Port, and can be transported to all parts of the world by container or bulk carrier;

  1. Installation: Provide detailed installation drawings and technical guidance, requiring 1 unit of 25-50 ton crane and 3-5 construction personnel. After the foundation construction is completed, on-site assembly, flange fixing and equipment mounting are completed in one stop;

  1. After-sales Service: Provide 1-year free warranty (including parts replacement) and lifelong technical support, and can assist customers in completing local inspection and certification.

7. Customization Services

  1. Height Customization: Customize tower types with different heights of 15-80m according to communication coverage needs;

  1. Material and Anti-corrosion Customization: Provide customized thickened zinc layer and double-layer anti-corrosion coating for marine climate and high salt spray areas;

  1. Function Expansion: Can add additional functions such as lightning protection devices, surveillance camera brackets, LED lighting equipment;

  2. Standard Adaptation: Can optimize the design according to the local standards of the customer's region (such as European EN standard, Australian AS standard).



    Product Tags: Monopole Cell Tower , Monopole Telecommunication Tower Manufacturer , 15-60m Monopole Telecom Tower
