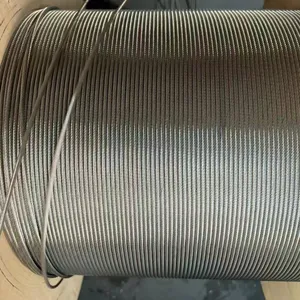

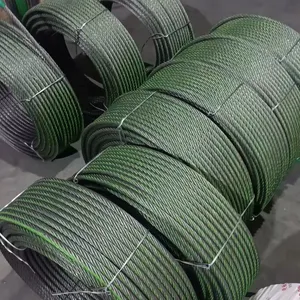

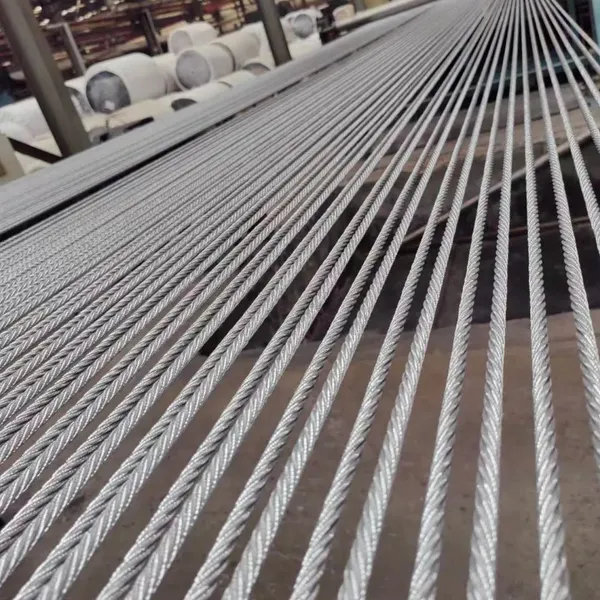

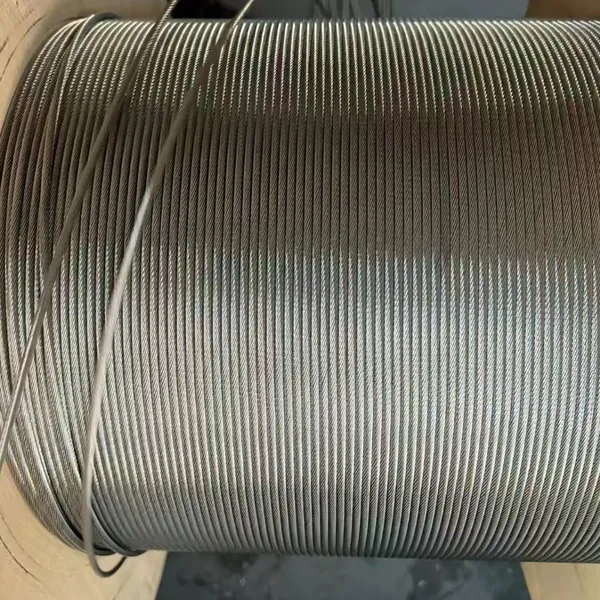

Steel Wire Rope - Product Description
1. Product Overview
Steel wire rope is made of high-quality carbon steel wire through drawing, stranding and closing processes. It is available in bright, electro-galvanized and hot-dip galvanized types. With Fiber Core (FC) and Independent Wire Rope Core (IWRC) structures, it features stable structure, good flexibility, high tensile strength and long service life.
Widely used in lifting, hoisting, mining, port, marine, construction machinery and binding fields. Complete specifications and customized sizes are available. Fast delivery, lead time 5-7 days.
2. Material & Production Process
Made of high-purity high carbon steel wire with low impurity content. Excellent compression, tensile and fracture resistance.
- Bright Wire Rope: Smooth surface, suitable for indoor general lifting.
- Electro-galvanized Wire Rope: Uniform zinc coating, good anti-rust performance and cost-effective.
- Hot-dip Galvanized Wire Rope: Thick zinc layer, acid and alkali resistant, corrosion-resistant for coastal and harsh outdoor environments.
Adopts regular lay and lang lay twisting technology. Compact structure, not easy to loose or deform, with great wear resistance and fatigue resistance.
3. Specifications & Structure
Common structures: 6×7, 6×19, 6×37, 6×61, 7×7, 7×19, 8×19S.
- FC (Fiber Core): Good flexibility and cushioning performance.
- IWRC (Steel Core): Higher strength, compression resistance for heavy load.
Available diameter: 2mm - 60mm.
Tensile strength: 1570MPa, 1770MPa, 1870MPa, 1960MPa.
4. Product Advantages
- High breaking force and strong load capacity, high safety factor.
- Excellent wear resistance, not easy to break wires under repeated bending and friction.
- Galvanized type effectively prevents oxidation, rust and chemical corrosion.
- Soft and flexible, easy to coil, cut and operate.
- Rich stock, complete models, customized length and OEM service supported.
5. Application Scope
- Crane, tower crane and equipment lifting
- Mining hoisting and underground transportation
- Port handling and ship mooring
- Engineering machinery and elevator equipment
- Cargo binding, tensioning and safety fixing
6. Packaging & Service
Packed with steel wire strapping and moisture-proof woven bags to avoid damage and damp during transportation. Meet GB, EN and ISO standards. Material test certificates are provided. Bulk container shipment is available to meet large-scale export demand.
