As a leading manufacturer since 1970, Shandong Huilong Electrical Material Co., Ltd. introduces our Thermal Grade 200 Flat Winding Wire, specifically engineered for power inductors to deliver unmatched thermal stability. With over 50 years of expertise and a factory spanning 10,000-30,000 square meters, we produce high-quality wires that meet rigorous global standards. Our annual export value exceeds US$100 million, serving markets in North America, South America, Europe, Asia, and beyond, ensuring reliable performance for demanding electrical applications. This wire is designed to enhance efficiency and durability in power systems, backed by our team of 51-100 dedicated professionals who prioritize innovation and quality control.
The Thermal Grade 200 Flat Winding Wire features advanced characteristics that make it ideal for high-temperature environments. Key benefits include:
- Superior Thermal Resistance: Rated for continuous operation at up to 200°C, reducing the risk of overheating in power inductors.
- Enhanced Efficiency: The flat shape minimizes eddy current losses and improves winding density, leading to better energy transfer.
- Durability and Flexibility: Made from high-purity copper, it offers excellent mechanical strength for easy handling in assembly processes.
- Wide Compatibility: Suitable for applications such as power supplies, transformers, automotive systems, and renewable energy devices.
Technical specifications are detailed in the table below, highlighting core parameters that ensure optimal performance:
| Parameter | Value | Benefit |
| Thermal Grade | 200 | Ensures reliability in high-heat scenarios |
| Material Composition | Copper core with enamel coating | Provides low electrical resistance |
| Wire Thickness | Customizable | Allows tailored solutions for specific inductors |
| Insulation Type | High-temperature enamel | Prevents short circuits and enhances safety |
| Operating Frequency | Up to 100 kHz | Supports diverse power electronics |
Clients gain significant advantages, including reduced maintenance costs, longer component lifespan, and compliance with international standards. For instance, the flat profile enables tighter windings, which boosts inductor efficiency by up to 15% in typical setups. This translates to energy savings and improved performance in industries like automotive, industrial machinery, and consumer electronics.
With certifications such as ISO9001, ISO14000, HACCP, and others, Shandong Huilong demonstrates unwavering commitment to quality and sustainability. Our extensive market reach—covering North America, South America, Eastern Europe, Southeast Asia, and more—along with ports of shipment in Qingdao, Shanghai, Ningbo, and Tianjin, ensures timely delivery worldwide. Trust in our decades of manufacturing excellence to provide a wire that excels in thermal management and reliability. Contact us today for a quote or to discuss custom requirements; we are ready to support your projects with dependable solutions.
-
Q: What does Thermal Grade 200 mean for this wire?
A: It indicates the wire can operate continuously at temperatures up to 200°C, making it suitable for high-heat environments like power inductors without degradation. -
Q: How does the flat shape benefit winding in inductors?
A: The flat profile allows for denser, more efficient windings, reducing space requirements and improving thermal dissipation compared to round wires. -
Q: Are there specific certifications for automotive use?
A: Yes, our wire meets standards such as ISO16949, making it compliant for automotive power inductors and other vehicle applications. -
Q: Can I request custom dimensions or colors?
A: Absolutely, dimensions are customizable upon request, and color options are available for easier identification during assembly processes. -
Q: What is the typical lead time for orders?
A: Lead times vary based on order size and customization, but standard deliveries are often within 3-5 weeks; contact us for exact details. -
Q: How is the wire packaged for international shipping?

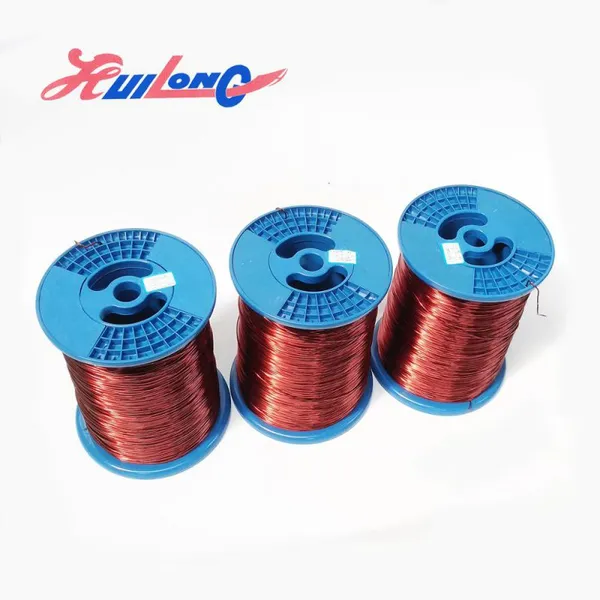

A: We use robust packaging like spools or reels with protective materials to prevent damage, and shipping options are adaptable to your logistics needs. -
Q: Does this wire support high-frequency applications?
A: Yes, it is designed for frequencies up to 100 kHz, ensuring stable performance in power inductors for various electronic systems. -
Q: What quality control measures are in place?
A: We implement strict testing protocols, including thermal cycling and insulation checks, aligned with our ISO certifications for consistent quality.
