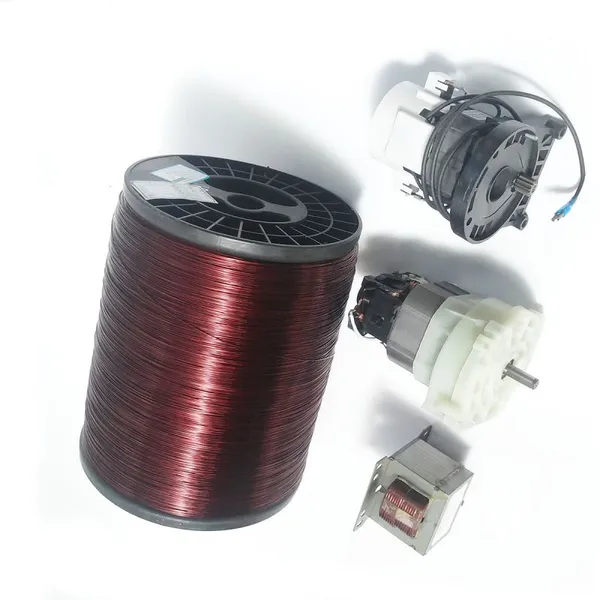

SWG 6-32 IEC-60317 Enameled Aluminum Flat Wire Insulation Coating Fan Motor Winding Magnet Wire Electrical Wires With Shape
US$ 3.88
500 - 4999 Kilograms
US$ 3.45
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Enamelled WireUS$ 3.47 - 3.90MOQ: 500 Kilograms -
ASTM F68 Oxygen-Free Enameled Copper Wire for Superconductor ApplicationsNegotiableMOQ: 500 Kilograms
-
200°C Insulated Enameled Round Copper Wire for Solar Inverter TransformersNegotiableMOQ: 500 Kilograms
-
Class 220 Polyamide-Imide Enameled Copper Wire (QXY/220) for High-Temp UseNegotiableMOQ: 500 Kilograms
-
Class 155 Polyester Enameled Copper Wire (QZ/155) for Electrical WindingsNegotiableMOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Diameter
12 AWG, 24 AWG
Rated voltage
5KV above
Model Number
EIW 180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Shape
Round, Flat, Coil
Single Wire Size
2.5 mm, 1.5 mm
Temperature
50 °C ~ 100 °C
Diameter:
SWG6-34
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.50mm-6.00mm
Certification:
ULE234565 ROHS REACH ISO9001
Bobbin:
PT25 PT30 PT60 PT200 PT270
Color
Brown
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.5mm-6(3awg-24awg)
Product Name:Enameled aluminum round wire for transformer polyester imide-polyamide imide
Product Name |
QZ(G)-155 |
QZ-180 |
Q(ZY/XY)-200 |
Q(ZY/XY)-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class C |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.50-6.00 |
0.50-6.00 |
0.50-6.000.50-6.00 |
0.20-6.00 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-8
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-13
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
Techinical Data
