XM16Z4FG1,XM16S4FG1, XM16Z2FG1, XM16S2FG1, XM16Z3FG1, XM16S3FG1
Product Spotlights
XM16 type small waterproof connector is made according to the Russian standard. These connectors have the small features, small volume.light weight, convenient application, high durability of plugging and unplugging, threadedcoupling, good sealing performance, high conductivity and high dielectric
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Microwave
Surface Treatment:
Cadmium Plating
Interface Type:
AC/DC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Circular Connector: QS13K5TMY,QS13J5ZMY,QS13K3TMY,QS13J3ZMY,QS13K7TMY,QS13J7ZMY,QS7-18T5KMY,QS7-18Z5JMY QS7-18T3KMY QS7-18Z3JMYNegotiableMOQ: 10 Pieces -
J29A-25TJN, J29A-25ZKN, J29A-25ZKAW, J29A-25TJAWNegotiableMOQ: 10 Pieces
-
PC-4T,PC-4Z,PC-7T,PC-7Z, PC-10T,PC-10ZNegotiableMOQ: 10 Pieces
-
C091-31C-008, C091-31G-008,C091D-31S-008,C091-31D-008,C091-31H-008NegotiableMOQ: 10 Pieces
-
XM16Z4FG1,XM16S4FG1, XM16Z2FG1, XM16S2FG1, XM16Z3FG1, XM16S3FG1NegotiableMOQ: 10 Pieces
Application
Microwave
Surface Treatment
Cadmium Plating
Interface Type
AC/DC
Operating Frequency
Low Frequency
Contact Resistance
7.3mΩ
Housing
Copper Alloy
Gender
Male
Contact Material
Brass
Transport Package
Carton

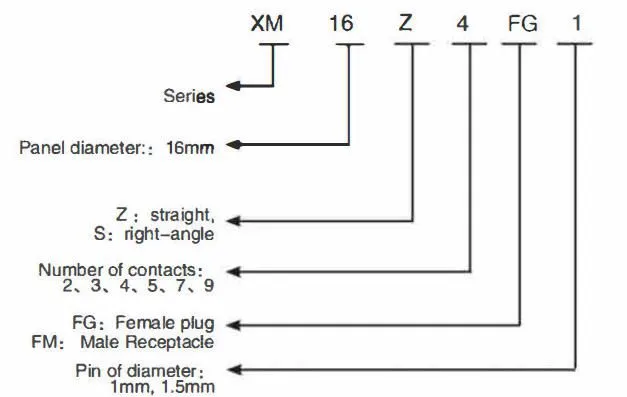

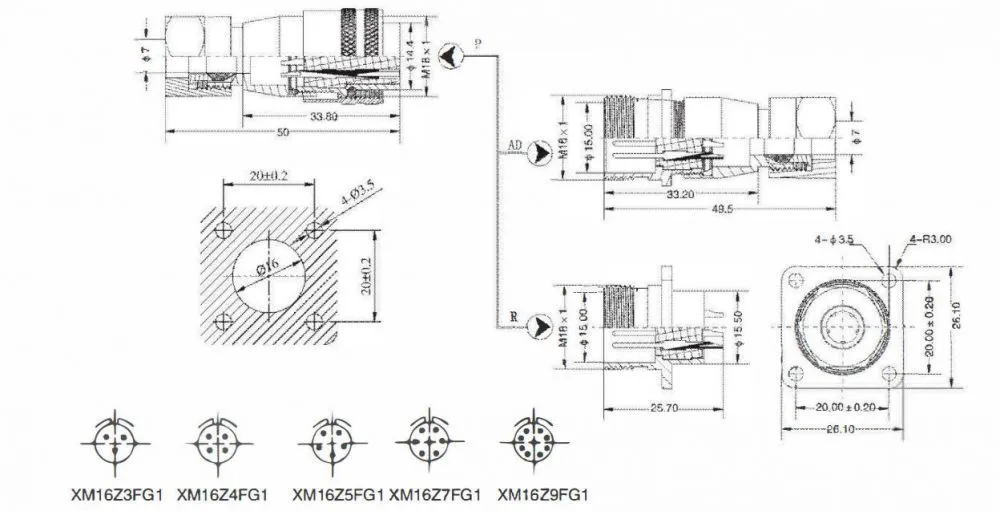

XM16 type small waterproof connector is made according to the Russian standard. These connectors have the small features, small volume.light weight, convenient application, high durability of plugging and unplugging, threadedcoupling, good sealing performance, high conductivity and high dielectric — strength. the panel diameter is 16mm,contact pair has 9 kinds of 2,3, 4, 5, 7, 9pin core.
