Home > Electrical & Electronics > Connector & Terminals > Circular Connector > C091-31C-008, C091-31G-008,C091D-31S-008,C091-31D-008,C091-31H-008

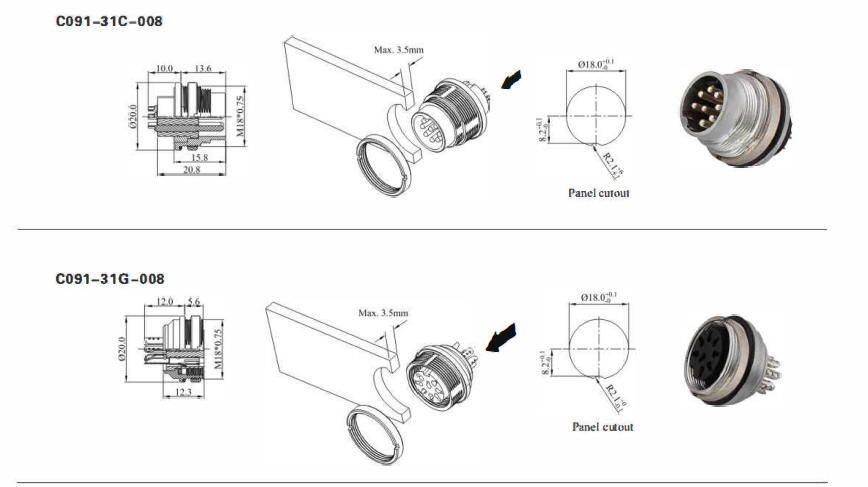

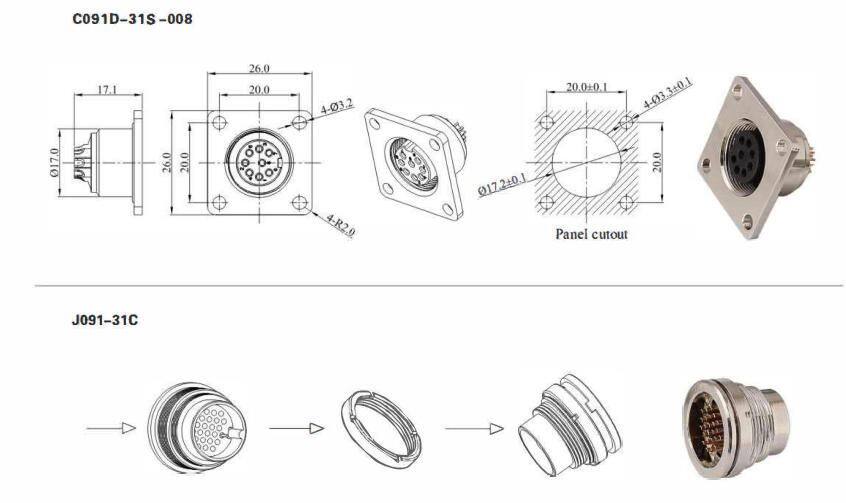

C091-31C-008, C091-31G-008,C091D-31S-008,C091-31D-008,C091-31H-008
Product Spotlights

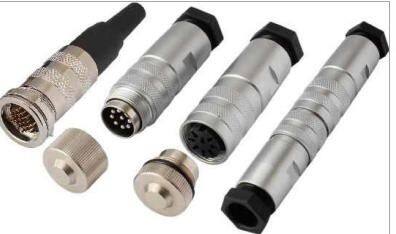

C091 series connectors are available with 3-8 contacts, threading coupling, it can exchangeable with Amphenol C 091 A /BID & Binder 423
series.Meet DIN45326 standard. AU connectors of C091series are EMI protected and IP 67 proof. Main applications for C091 connectors are
industrial controls.
series.Meet DIN45326 standard. AU connectors of C091series are EMI protected and IP 67 proof. Main applications for C091 connectors are
industrial controls.
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Other
Surface Treatment:
Cadmium Plating
Interface Type:
AC/DC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XM16Z4FG1,XM16S4FG1, XM16Z2FG1, XM16S2FG1, XM16Z3FG1, XM16S3FG1NegotiableMOQ: 10 Pieces -
Circular Connector: QS13K5TMY,QS13J5ZMY,QS13K3TMY,QS13J3ZMY,QS13K7TMY,QS13J7ZMY,QS7-18T5KMY,QS7-18Z5JMY QS7-18T3KMY QS7-18Z3JMYNegotiableMOQ: 10 Pieces
-
J29A-25TJN, J29A-25ZKN, J29A-25ZKAW, J29A-25TJAWNegotiableMOQ: 10 Pieces
-
PC-4T,PC-4Z,PC-7T,PC-7Z, PC-10T,PC-10ZNegotiableMOQ: 10 Pieces
-
C091-31C-008, C091-31G-008,C091D-31S-008,C091-31D-008,C091-31H-008NegotiableMOQ: 10 Pieces
Application
Other
Surface Treatment
Cadmium Plating
Interface Type
AC/DC
Operating Frequency
Low Frequency
Contact Resistance
7.3mΩ
Housing
Aluminum Alloy
Gender
Female
Contact Material
Brass
Transport Package
Carton
C091 series connectors are available with 3-8 contacts, threading coupling, it can exchangeable with Amphenol C 091 A /B/D & Binder 423
series.Meet DIN45326 standard. All connectors of C091 series are EMI protected and IP 67 proof. Main applications for C091 connectors are
industrial controls.data processing, lnstrumentation, medlcal devices,telecommunication network and equipment, outdoor and marine application.
Cable connector main applications for 3G Tower Mounted Amplifier, Base Stations.
Send Inquiry to This Supplier
