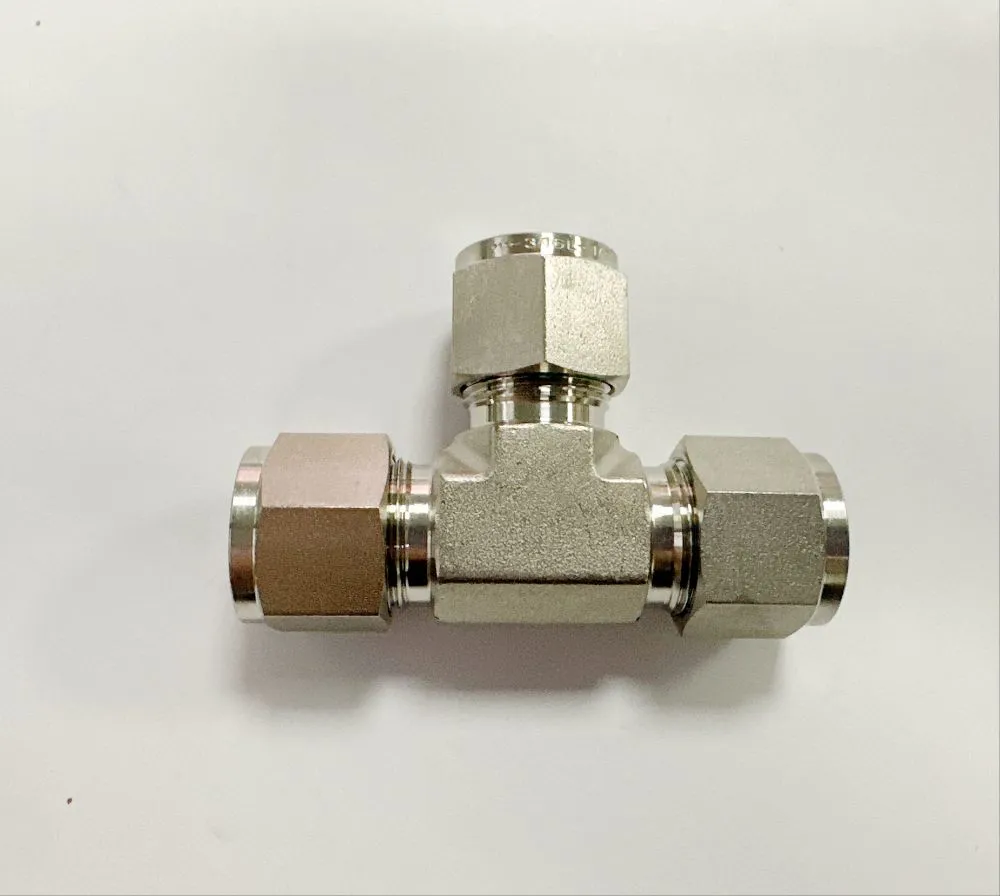

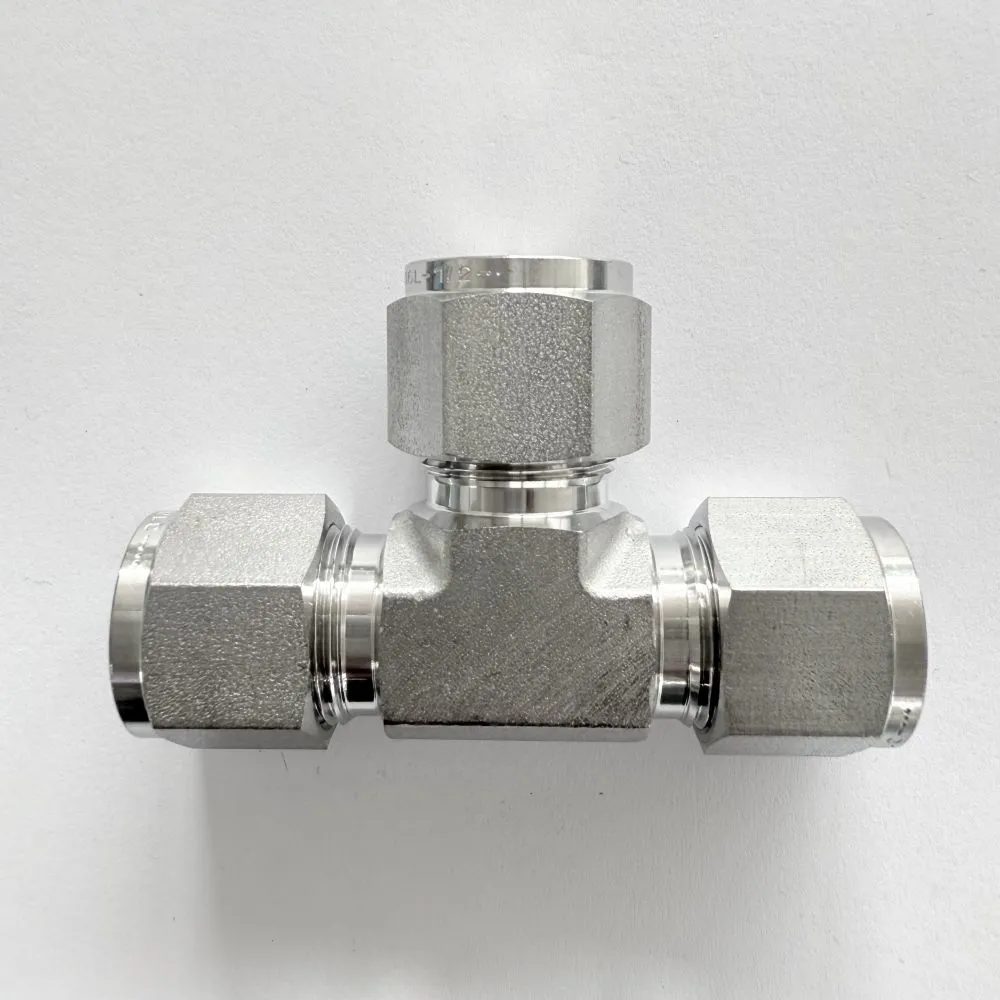

Shanghai Quanbao Electronic Materials Technology Co., Ltd., based in Shanghai, China, presents our premium Stainless Steel Double Ferrule Tee Fitting - engineered specifically for critical oil and gas pipeline connections. This precision component delivers unmatched reliability in high-pressure environments, featuring a patented double ferrule design that eliminates leakage risks while withstanding extreme operational conditions. Manufactured in our Shanghai facility with aerospace-grade machining standards, this tee fitting ensures seamless integration into your existing pipeline infrastructure.
Core Technical Advantages:
- Dual-ferrule compression mechanism creates two separate sealing points for fail-safe leak prevention
- Precision CNC machining ensures dimensional accuracy within ±0.01mm tolerances
- Corrosion-resistant stainless steel construction suitable for sour gas environments
- Vibration-resistant design maintains integrity in high-flow turbulence conditions
- Reusable installation without pipe deformation or threading damage
Technical Specifications:
| Parameter | Standard Value | Custom Options |
|---|---|---|
| Material Grade | SS 304 | SS 316/L, Alloy 20 |
| Pressure Tolerance | 3000 PSI | Up to 5000 PSI |
| Temperature Range | -20°C to 150°C | -50°C to 200°C |
| Connection Ends | 3/8" NPT Female | BSPP, SAE, Metric |

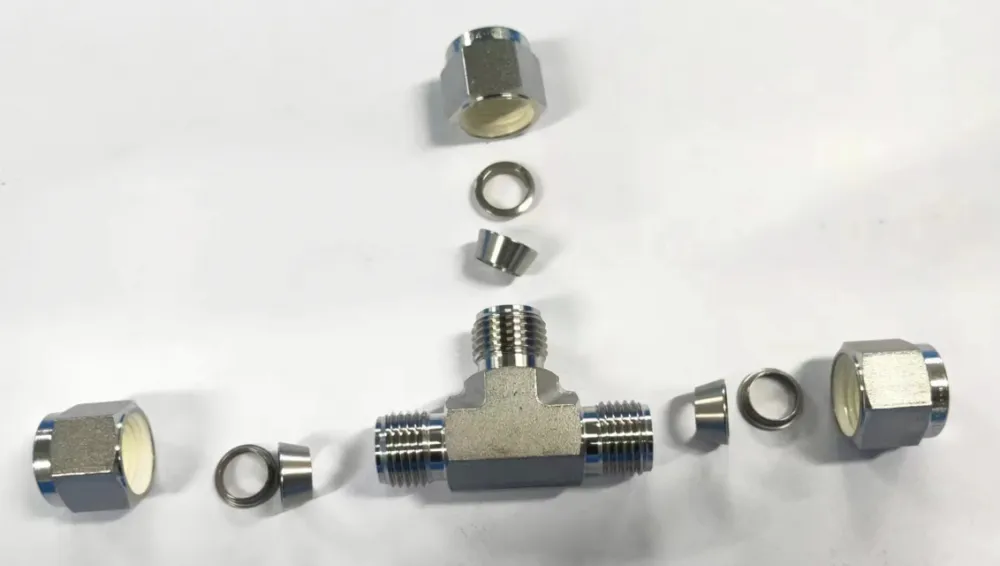

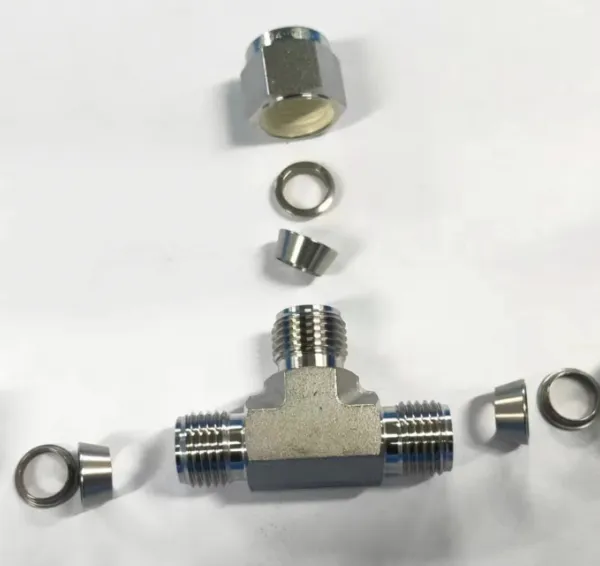

The unique front-ferrule/back-ferrule configuration provides three critical functions simultaneously during installation: primary seal formation, secondary seal reinforcement, and mechanical grip enhancement. This multi-functional design significantly reduces maintenance downtime in oil and gas operations while preventing costly fluid losses. Our tee fittings undergo rigorous pressure cycling tests simulating 10+ years of service conditions to validate performance longevity.
Operational Benefits:
- 40% faster installation compared to welded alternatives
- Zero requirement for special tools or flare preparation
- Compatible with instrumentation and process lines
- Ideal for retrofit applications in confined spaces
For over a decade, Shanghai Quanbao has supplied precision-engineered pipeline components to major energy operators across Asia. Our Shanghai-based manufacturing center utilizes automated optical inspection systems to guarantee dimensional perfection in every fitting. The double ferrule tee's field-proven reliability in offshore platforms and refinery transfer lines makes it a preferred choice for engineers prioritizing operational safety. Contact our technical team today for project-specific configuration support and volume pricing.
Frequently Asked Questions:
Q1: How does the double ferrule prevent leakage better than single ferrule designs?
A: The dual-ferrule system creates concentric compression zones - the front ferrule forms a radial seal while the back ferrule provides axial grip, eliminating potential leak paths through redundant sealing mechanisms.
Q2: What maintenance is required after installation?
A: These fittings are maintenance-free under standard operating conditions. Periodic visual inspections during routine shutdowns are sufficient to verify integrity.
Q3: Are these suitable for sour gas service containing H2S?
A: When manufactured in 316L stainless steel, our fittings resist sulfide stress cracking in H2S concentrations up to 20,000 ppm.
Q4: Can I reuse fittings after disassembly?
A: Yes, the double ferrule design allows multiple reuses without performance degradation when properly reassembled.
Q5: What is the maximum pipe misalignment tolerance?
A: The design accommodates angular misalignment up to 3° without compromising seal integrity.
Q6: Do you provide installation training?
A: Comprehensive installation guides and video tutorials are available upon request. On-site training can be arranged for large projects.
Q7: How do these compare to welded tee connections?
A: They eliminate heat-affected zone corrosion risks, reduce installation time by 70%, and allow component reuse - advantages impossible with welded joints.
Q8: What documentation accompanies shipments?
A: Each batch includes material test certificates, dimensional inspection reports, and pressure test records traceable to production lots.
