Broadband RF Direct Modulation DFB Laser

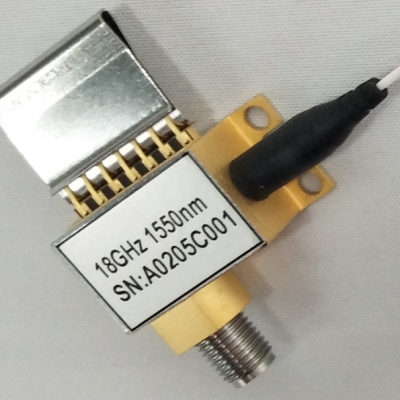

It is a distributed feedback (DFB) laser that integrates radio frequency modulation. It combines the stability of a DFB laser with the flexibility of RF modulation, enabling efficient and stable optical signal modulation over a wide frequency range. This laser selectively amplifies and outputs light of specific wavelengths through a built-in diffraction grating. Simultaneously, through direct modulation of the RF signal, the intensity, frequency, or phase of the optical signal can be dynamically changed, thus meeting the needs of various complex communication and sensing applications. The Inno-8102 broadband RF directly modulated DFB laser is an MQW DFB laser component fabricated using InGaAs/InP. It integrates the laser component, optical isolator, TEC, thermistor, monitoring photodiode, and broadband DC bias, and is housed in a hermetically sealed 7-pin package.
Features
Broadband
Low noise
Applications
Remote radio unit
Tracking telemetry and control
Radar ECM
Absolute maximum ratings
Parameter |
Symbol |
Condition |
Min |
Max |
Unit |
LD reverse voltage |
Vr |
— |
— |
2 |
V |
MPD reverse voltage |
Vpd |
— |
— |
20 |
V |
Storage temperature |
Ts |
— |
-55 |
+85 |
℃ |
Operating temperature |
To |
— |
-40 |
+70 |
℃ |
TEC electric current |
|tec |
— |
— |
1.5 |
A |
RF input maximum power |
Pin |
— |
— |
20 |
dBm |
Performance Parameter
Parameter |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
Threshold current |
Ith |
CW |
— |
— |
40 |
mA |
Working current |
Iop |
CW |
— |
60 |
110 |
mA |
Input impedance |
ZIN |
IF=Iop |
— |
50 |
— |
Ω |
Thermal resistor |
RTH |
@+25℃ |
9.5 |
10 |
10.5 |
kΩ |
Center wavelength |
λc |
CW，IF=Iop |
— |
1310/1550 |
— |
nm |
Output optical power |
PO |
CW，IF=Iop |
— |
10 |
— |
mW |
Side mode suppression ratio |
SMSR |
CW，IF=Iop |
35 |
— |
— |
dB |
Relative intensity noise |
RIN |
100MHz-18GHz |
— |
-150 |
— |
dB/Hz |
Monitor current |
Im |
— |
50 |
— |
— |
uA |
Optical Isolation |
ISO |
— |
— |
32 |
— |
dB |
Bandwidth |
S21 |
— |
18 |
— |
— |
GHz |
Return loss |
S11 |
— |
— |
-10 |
— |
dB |
Input IdB compression point |
P1dB |
— |
— |
15 |
20 |
dBm |
Fiber type |
Single fiber SMF28e；Diameter900μm；Fiber length： 1m |
ordering information
Wavelength |
Adjustable Broadband |
Fiber Type |
Connector |
|
27-37:1270-1370nm C16-C62: ITU wavelength path XX=XX |
06-6GHZ 12-12GHZ 18-18GHZ |
SM=Single Mode Fiber PM=Polarization Fiber |
FC=FC/APC
|
