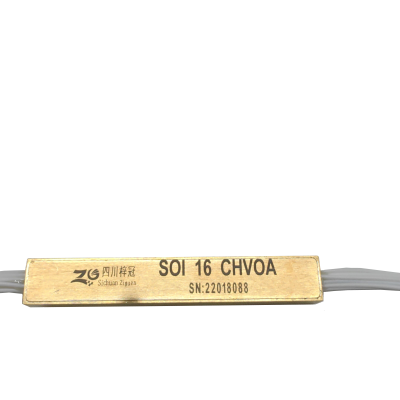

SOI high-speed Variable optical attenuator Array
It has the ability to support Dark light, lower power consumption, and faster switching speed. Silicon-based VOA array device is an all-solid-state chip, with a response speed of hundred nanosecond level, eight-channel monolithic integration, low power consumption, to meet the requirements of optical transmission, optical sensing system for optical attenuator high-speed response, miniaturization, and high reliability. Its response speed is 4 orders of magnitude higher than that of traditional VOA, reaching 100ns level, making it possible to quickly control optical power in a WDM optical network. In addition, its ultra-low optical loss can meet the requirements of civil optical network applications, its extremely high integration helps to greatly reduce the module size, and its pure solid-state waveguide chip makes it have excellent reliability.
Features
100ns class high reaction speed
Up to 48-channel monolithic integration
All-solid-state waveguide chip
Ultra-low optical loss
Applications
Inter-channel optical power equalization or blocking
Analog signal modulation
Performance Index(typical value)
Performance index |
Unit |
Value |
Notes |
Operating wavelength |
nm |
1525～1565 |
|
Response time |
ns |
100-300 |
|
Insertion loss |
dB |
1.2 |
The loss of fiber in to fiber out |
Attenuator range |
dB |
25 |
|
Polarization dependent |
dB |
≤0.3 |
@0dB attenuation time |
≤0.5 |
@0~25d attenuation time |
||
Power loss(@18dB Attenuator) |
mW |
150 |
It increases with the increase attenuation |
Voltage |
V |
1.2 |
|
Current |
mA |
0-35 |
|
Number of Channels |
/ |
6CH/48CH |
ordering information
ZG |
Channel |
Operation Wavelength |
Fiber type |
Fiber cover |
Fiber length |
Connector |
Package |
|
1=1 channel 6= 6channels 48=48channels
|
15=1550 |
SM PM
|
1=bare fiber 9=0.9mm tube 2=2mm tube |
1=1m 2=2m |
0=None 1=FC/APC 2= FC/PC 3=SC/APC |
D=device M=module B=benchtop |
