Full Hydraulic Core Drilling Rig, Hydraulic Rock Core Drill Rig
US$ 10000 - 50000
MOQ: 1 Combo
Key Specifications
Get Latest Price
Certification:
CE
Motor:
AC Motor
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
QngDao
Delivery Detail:
10 days
Related Products
-
Solar PV Pile Driver Photovoltaic Drilling Rig For Solar FarmUS$ 10000 - 25000MOQ: 1 Combo -
Single Person Backpack Drilling Rig, Portable Small Core Extraction Equipment, Geological Exploration Sampling Drilling MachineUS$ 1500 - 1500MOQ: 1 Set
-
Full Hydraulic Core Drilling Rig, Hydraulic Rock Core Drill RigUS$ 10000 - 50000MOQ: 1 Combo
-
Geological Core Drill Rig for Core SampleUS$ 1 - 2MOQ: 1 Set
-
Supplies Geological Exploration Core Rig / Backpack Sampling RigUS$ 6000 - 6200MOQ: 1 Set
Certification
CE
Motor
AC Motor
Condition
New
Drill Hole Diameter
>300mm
Drill Hole Depth
>300m
Bit Type
Diamond Bit
Drilling Way
Compound

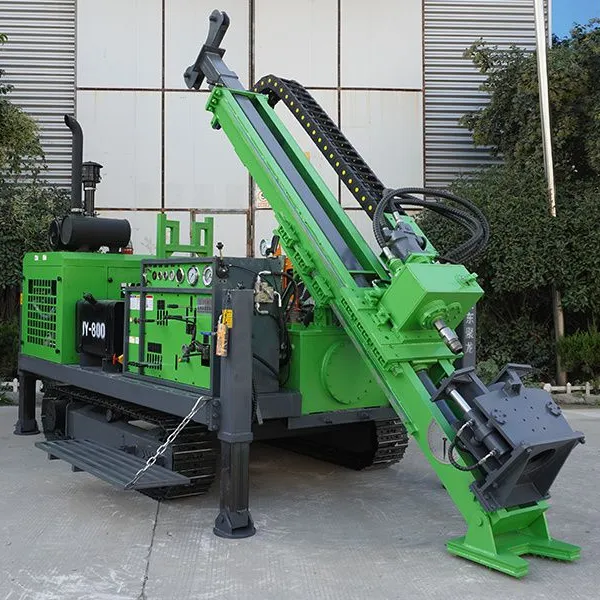

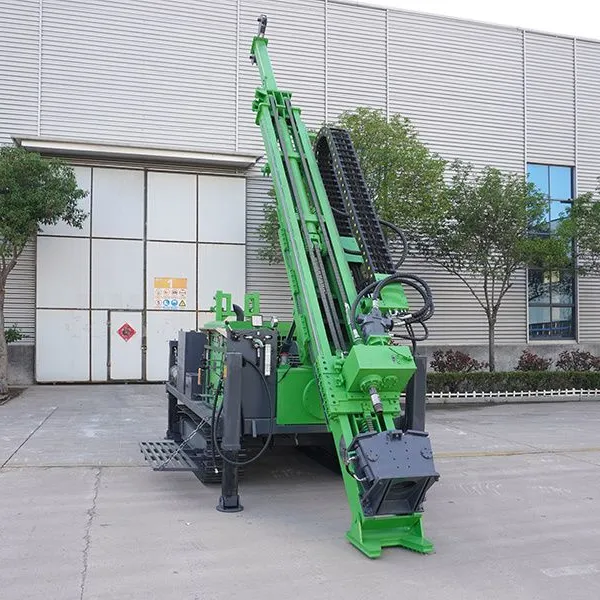

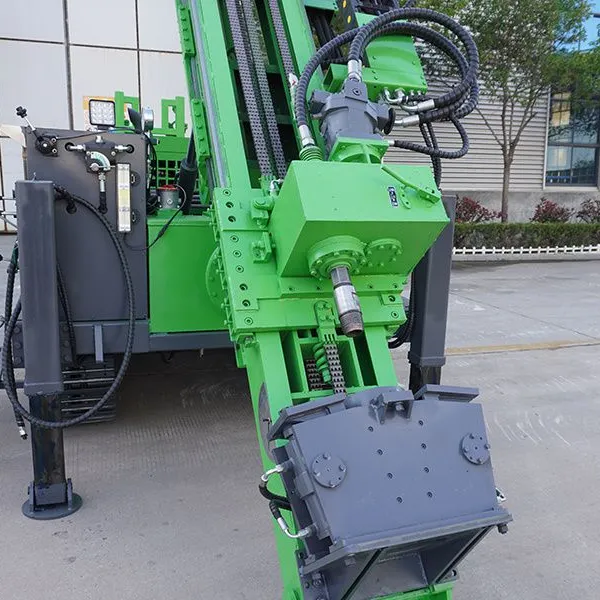

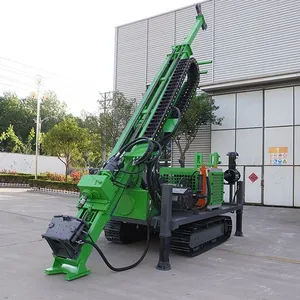

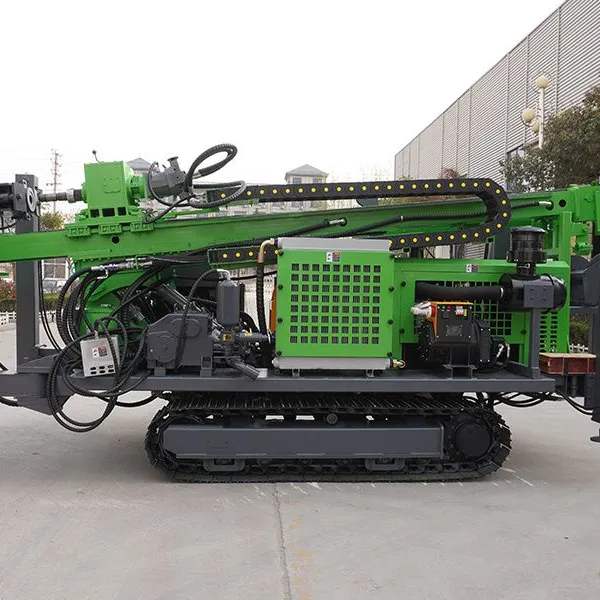

The fully hydraulic core drill rig is a rope coring drill that adopts a fully hydraulic power head drilling method.
The JY series fully hydraulic core drilling rig is a new type of drilling rig developed by our company based on the advanced technology of similar drilling rigs at home and abroad. It is mainly suitable for drilling in solid ore deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, as well as for mine ventilation, drainage and dam grouting and other engineering drilling.
| Drilling Rig Model | JY-1000B | |
| Drilling Capacity | BTW (m) | 1200 |
| NTW (m) | 1000 | |
| HTW (m) | 800 | |
| NQ (m) | / | |
| Hydraulic System | Rated Pressure Mpa | Main pump 115ml/r, 32MPa; Auxiliary pump 96ml/r, 25MPa |
| Cooling Method | Air cooling + Water cooling | |
| Engine Parameters | Model | Weichai six-cylinder |
| Rated Power Kw | 129 | |
| Rated Speed rpm | 2200 | |
| Power Head Parameters | Maximum Torque N.m | 2600 |
| Maximum Speed rpm | 1400 | |
| Feed Stroke m | 3.5 | |
| Lifting Force kN | 360 | |
| Thrust kN | 180 | |
| Wireline Core Hoisting Parameters | Rope Capacity m | 1200 |
| Lifting Force kN | 24 | |
| Lifting Speed m/min | 110 | |
| Wire Rope Diameter mm | 6 | |
| Mast Parameters | Overall Height/m | 8.5 |
| Drilling Angle ° | 45-90 | |
| Sliding Stroke mm | 1200 | |
| Chuck Parameters | 75/89/115 | |
| Track Parameters | Maximum Climbing Angle ° | 25 |
| Maximum Travel Speed km/h | 2-3 | |
| Transportation Dimensions | Length * Width * Height mm | 5600*2100*2600 |
| Overall Weight (t) | 8 |
Note: The above parameters are subject to change without notice. Please refer to the actual product for details.
