Help CenterParker D1VW020BNJW91 Direct-acting Solenoid Directional Valve 100% New Original All Fitting
Product Spotlights
Related Products
-
Rexroth 4WE6J73-62 EG24N9K4 A12 Electromagnetic Directional Valve High Performance 100% New OriginalUS$ 100 - 3000MOQ: 1 Piece -
SUN LPJCXHN Cartridge Valve 100% New Original High Performance All FittingUS$ 20 - 1000MOQ: 1 Piece
-
Eaton-vickers DG4V-3-6C-M-U-H5-60-EN12-4 Solenoid Valve High Performance 100% New OriginalUS$ 100 - 3000MOQ: 1 Piece
-
Eaton-vickers DG4V-3-2A-M-U-H7-60 Two-position Four-way Single Electromagnetic Spring Return Hydraulic Solenoid Directional Valve 100% New OriginalUS$ 100 - 1000MOQ: 1 Piece
-
AVENTICS 5420935270 Pneumatic Valve 100% New Original High PerformanceUS$ 100 - 800MOQ: 1 Piece

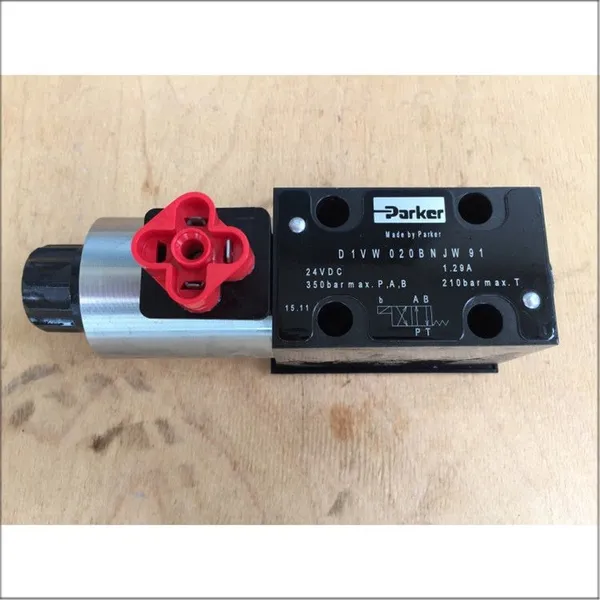

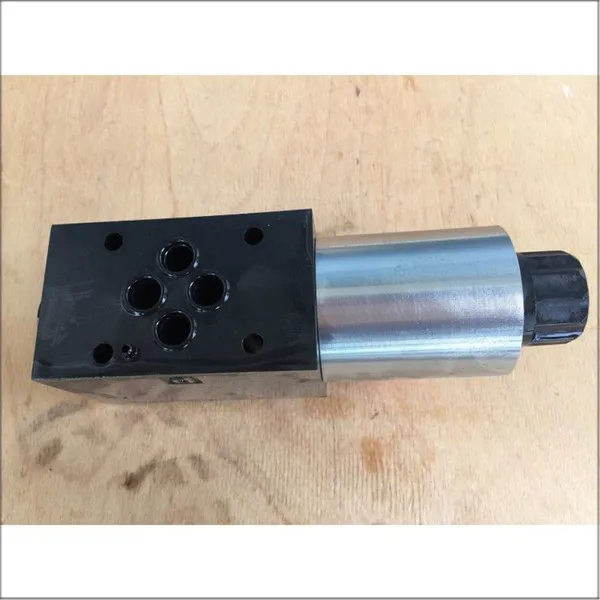

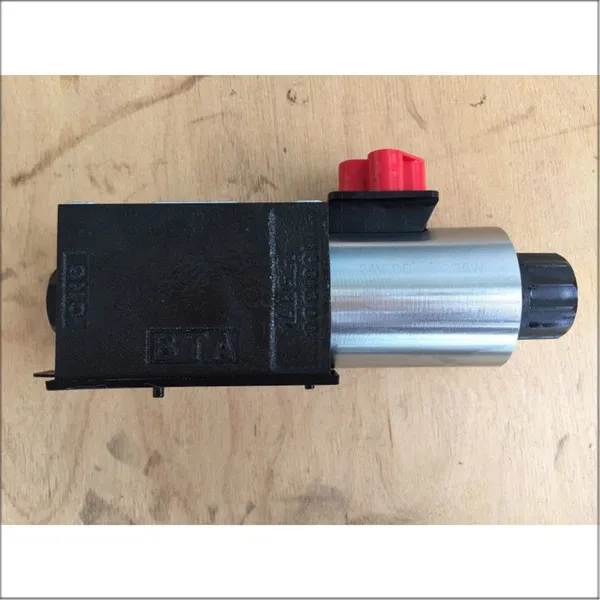

The Parker D1VW020BNJW91 is an NG06 specification 3-chamber solenoid directional valve. Its core selling points focus on high performance, high adaptability, and stability, specifically:
1. Performance Design Advantages
Excellent Flow Efficiency:Optimized flow channel design achieves a maximum flow capacity of 80L/min with minimal pressure drop, resulting in better energy savings and lower overall pressure loss.
Stable High Pressure Resistance:Maximum operating pressure reaches 350bar (35MPa), making it compatible with most high-pressure industrial hydraulic systems. It maintains stable operation even in harsh environments with high pressure, high temperature, and high humidity.
Optional Soft Switching Function:The soft switching version adds a damping orifice to the solenoid valve's switching channel, extending the switching time for smoother switching, more stable operation, and reduced damage to the system from hydraulic shocks.
2. Flexible Adaptability
Universal Installation Specifications:Utilizes the NG06 (CETOP 03/NFPA D03) standard plate mount, directly replacing conventional directional valves of the same specification without requiring modification to the mounting base, offering strong adaptability.
Multiple Customization Options:Supports various valve core configurations, allowing for the design of an unlimited number of hydraulic circuits; manual over-control and explosion-proof certified versions are also available. The explosion-proof version is dual-certified by ATEX and IECEx, suitable for Zone 1 and Zone 2 explosion-proof scenarios.
Replaceable Coils:Coils of the same voltage type can be flexibly interchanged (AC/DC are not interchangeable), resulting in lower maintenance and replacement costs.
3. Industrial Application Advantages
Compact and reliable design:A mature product resulting from Parker Hydraulics' long-term technological accumulation, offering stable quality and short delivery cycles. Currently, many steel mills, building material plants, and the fixture industry keep stock, making it suitable for general industrial hydraulic applications.
