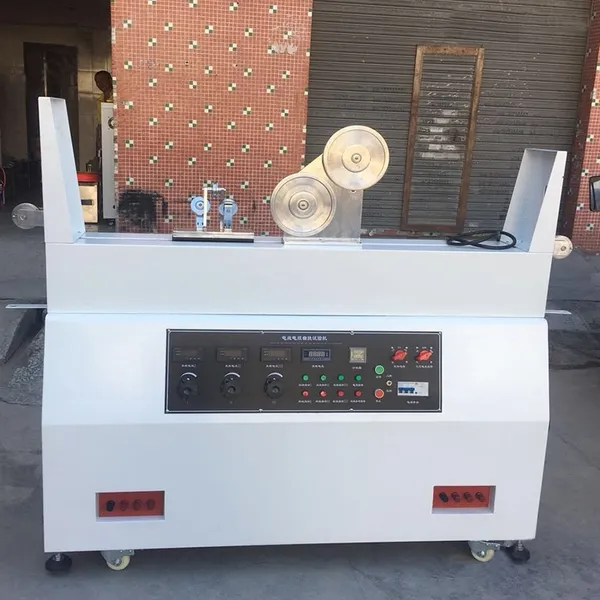

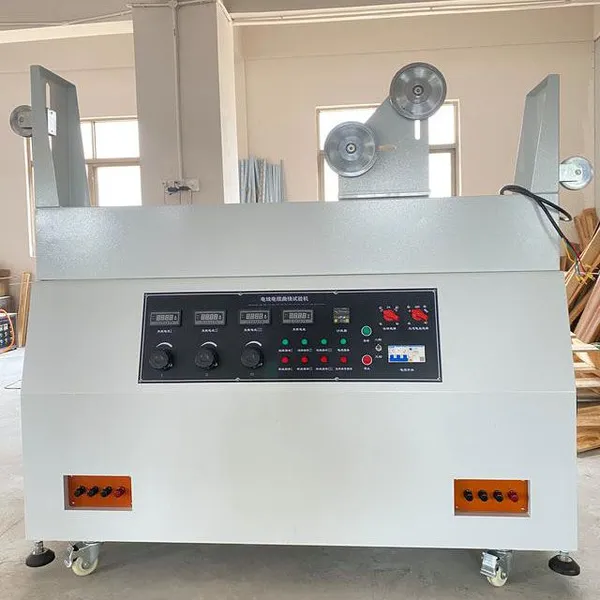

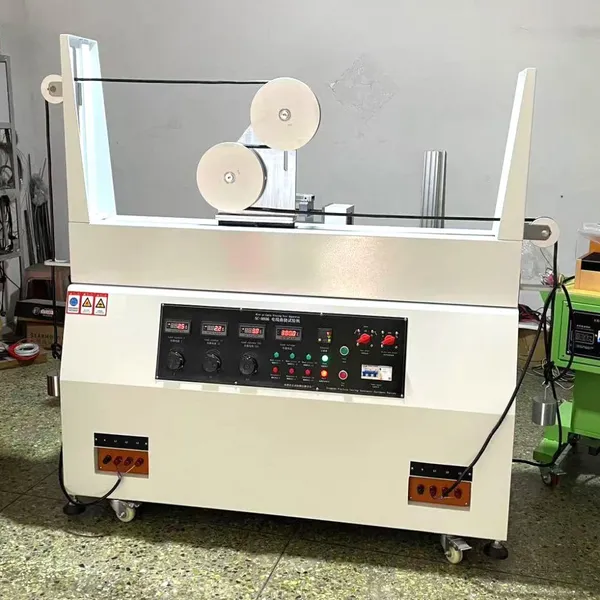

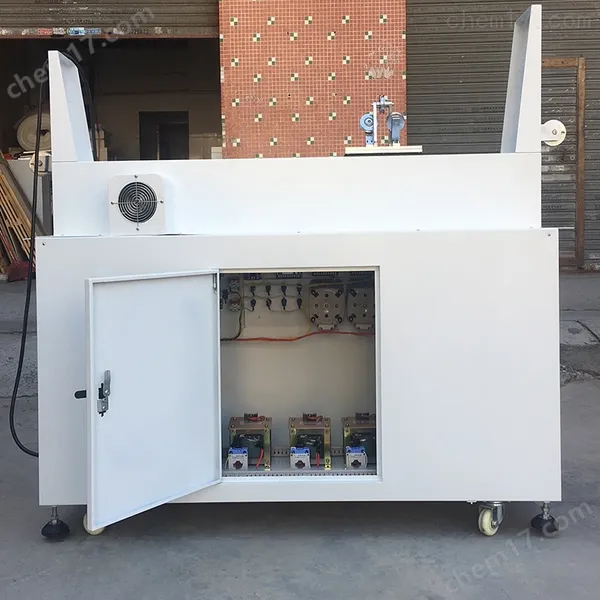

Wire and Cable Mechanical Flexing Test Equipment
Machine overview:
Cable Mechanical Flexing Test Equipment compliant with GB5023.2 GB5013.2, IEC245-2, IEC227-2, IEC60227-2, IEC60245-2, UL1581, UL2556, VDE0472, HD22.1 Designed and manufactured according to standards, suitable for testing the dynamic bending test of flexible cables with rubber insulation and sheath under load.
Purpose:
This instrument can select multiple test loads to meet the different testing requirements of wire and cable production enterprises and inspection departments for dynamic bending tests of flexible wires such as wires and cables.
Test method:
Take a test piece about 5m long, wrap the middle section around two circular wheels of the specified diameter, apply a load to both ends of the test piece, and connect the current. Then, move the circular wheels at a speed of 0.33m/s and a stroke of 1m to make the test piece bend and stretch back and forth. When the wire breaks or reaches the set number of times, it will automatically stop and the test piece will be removed to evaluate its flexural resistance characteristics.
Technical parameters:
Working power supply |
AC 380V/50HZ |
Load current |
0-30A |
Load voltage |
Two core single-phase AC 220V; Three core three-phase AC380V |
Test speed |
0.33m/S |
Test stroke |
≥ 1M |
Pulley structure |
two pulley structure (there pulley structure custom) |
Applicable wire diameter |
0.2-4 mm2 (support custom) |
Pulley diameter |
60, 80, 120, 160, 200mm |
Combination weight |
two each of 0.5, 1, 2, 3, and 7kg |
Counter |
0-999999 times |
Environmental temperature |
24 ± 8 º C |
Environmental humidity |
≤ 85%R.H |
Volume |
88 × 58 × 165cm (W × D × H) |
