Products Description

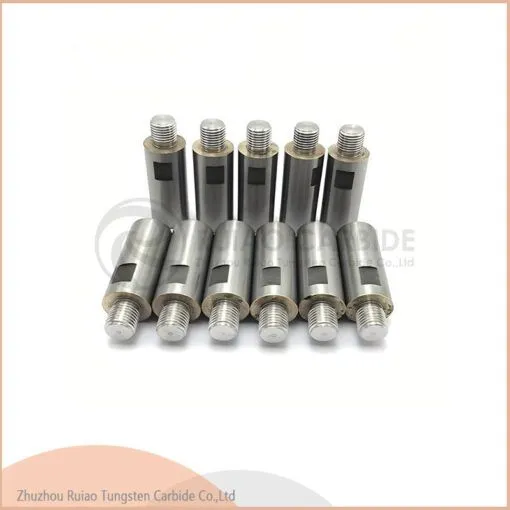

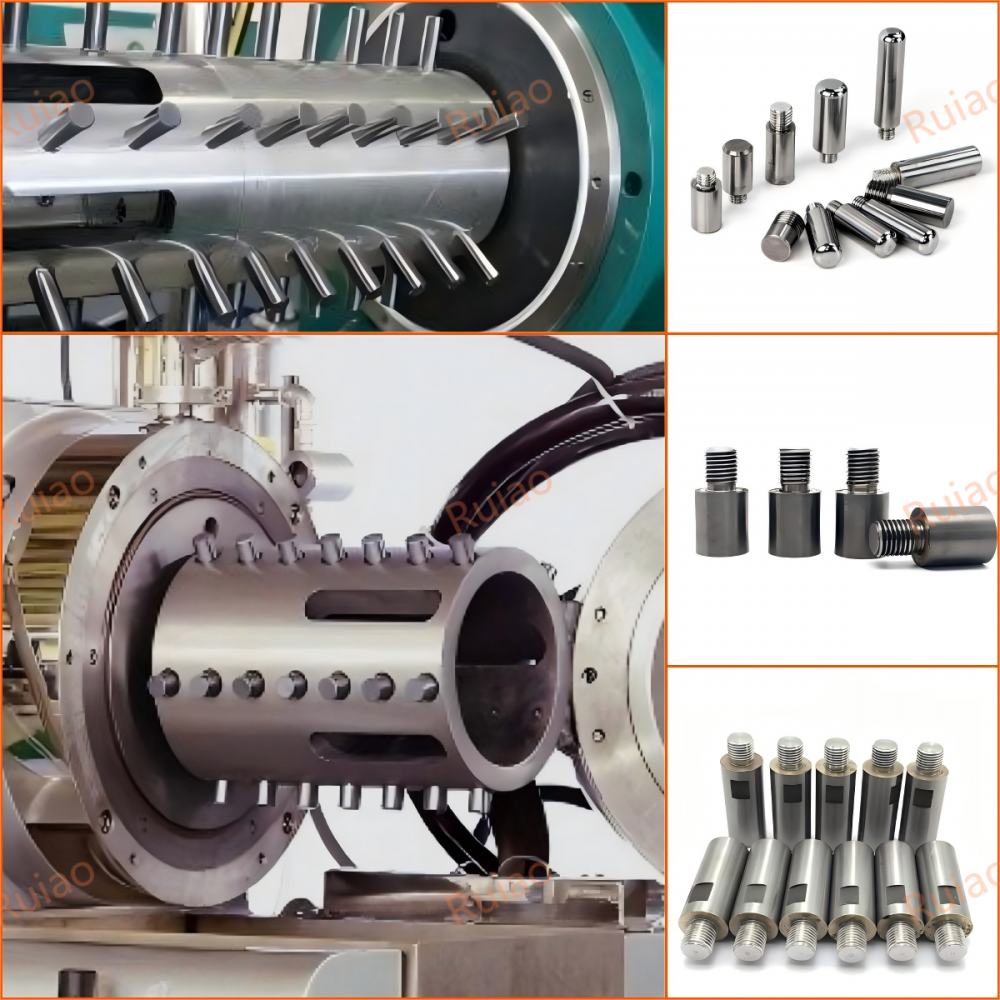

Tungsten carbide pegs is an important part of rod pin nano sand mill, carbide pin with high wear resistance, high hardness, high strength, not easy to break, easy installation and maintenance, no metal pollution known, good heat dissipation performance, rod pin length and grinding cylinder diameter ratio design Reasonable, high grinding efficiency; Suitable for dispersion grinding of digital printing ink, solvent ink, water-based ink, automotive paint, industrial paint, pigment, color paste, and nanomaterials.
Standard size range (customized welcome)
| OD (mm) | L(mm) | M (mm) |
|---|---|---|
| ø12mm | 33-35mm | M8 |
| ø10mm | 35-48mm | M10 |
| ø14mm | 30-58mm | M12 |
| ø16mm | 48-60mm | M12 |
| ø20mm | 60-73mm | M16 |
| ø30mm | 108-131mm | M20 |
Performance advantage
Material: integral tungsten carbide, welded type (SUS304SUS316+ Tungsten carbide alloy), SUS304 ensures no rust and high toughness; The welding agent is divided into brazing and silver welding.
Grade: Depending on whether the grinding material is water-based or oily, YG and YN medium/ultrafine particles are recommended, which can be customized.

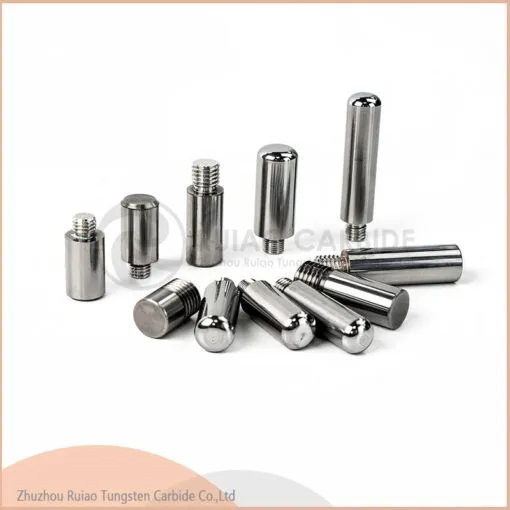

Appearance: mirror-polished R0.4, hexagon/chamfer/withdrawal slot/wrench position/positioning hole/top round head/top flat head with drawings.
Thread :CNC machining, good thread concentricity, since M4, standard pitch/coarse/fine teeth, easy to install; There are no welds, missing welds or falling off at the joints.
Quality inspection: product quality inspection specifications, according to the standard torque test; The weight of the finished product is consistent, and the motor runs more stable.
Core Technology Advantages
-
Triple-High Performance
Wear Resistance: 20× longer lifespan vs. ceramic pegs in nano-grinding
Hardness: HRA 91.5±0.3 (ISO 3878)
Transverse Rupture Strength: ≥4,500 MPa (eliminates fracture risks)
Zero-Contamination Guarantee
Material Purity: WC 99.95% + Co/Ni binder (O₂ ≤ 0.1%)
Certified non-metallic pollution per ISO 10993-18
Thermal Management System
Thermal conductivity: 85 W/m·K (3× faster than steel)
Operational stability: -50°C to 400°C
Optimized Geometry
Pin Length : Grinding Cylinder Diameter = 1:1.2~1.5 (patented ratio)
Surface roughness: Ra ≤0.05μm (mirror-polished)
Technical Specifications
| Parameter | Standard Range | Customization |
|---|---|---|
| Diameter | Ø0.8mm – Ø15mm | ±0.002mm tolerance |
| Length | 5mm – 150mm | Laser marking |
| Straightness | ≤0.003mm/100mm | Tapered designs |
| Binder System | WC-6%Co (Standard) | WC-8%Ni (Corrosion) |
| Coating | Uncoated (Standard) | Diamond coating |
Nano-Grinding Applications
Digital Printing Inks
Solvent-based: CMYK process colors, white ink dispersion ≤100nm
Water-based: Pigment concentration ≥40%, D50
Advanced Coatings
Automotive: Metallic effect paints, UV-cured primers
Industrial: Anti-corrosion coatings, ceramic suspensions
Nanomaterials
Graphene dispersions (≤5 layer thickness)
Quantum dot solutions (PDI
TiO₂/ZrO₂ suspensions (D90
Installation & Maintenance Features
Plug-and-Play Design:
Precisely fitted mounting slots (±0.01mm)
-
Quick-change system (replace single peg in ≤5 min)
Failure Prevention:
Chamfered edges prevent cylinder scoring
Stress-relieved microstructure (per ASTM B406)
