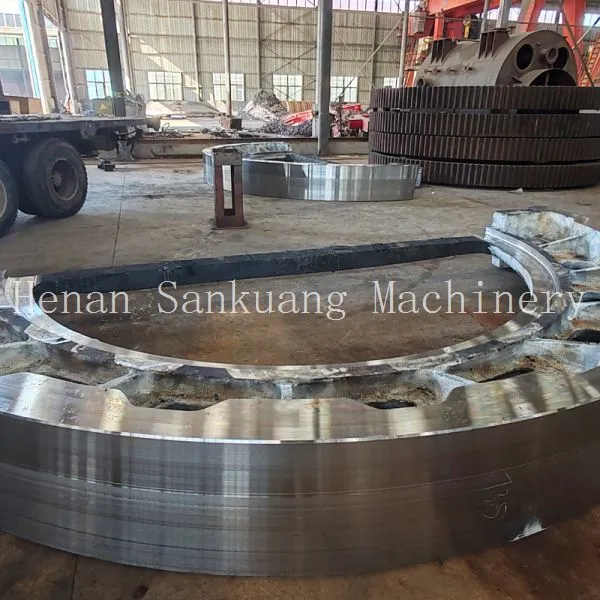

As a leading manufacturer since 2014, Henan San Kuang Machinery leverages its 10,000-30,000 sqm facility and ISO-certified processes to deliver premium forged gear rings engineered for extreme mining environments. Our ZG310-570 large gear rings ensure operational reliability in critical applications like ball mills and crushers, minimizing downtime in high-abrasion settings.
Core Technical Advantages:
- Superior Material Integrity: ZG310-570 cast steel offers exceptional yield strength (≥310MPa) and tensile strength (≥570MPa), enhanced by forging that eliminates internal voids.
- Precision Engineering: CNC-machined tooth profiles ensure smooth meshing and load distribution, reducing vibration and wear.
- Extended Service Life: Optional surface hardening (e.g., induction hardening) increases surface hardness to 45-55 HRC for abrasive resistance.
- Rigorous Quality Control: 100% non-destructive testing (UT/MT) and dimensional verification per ISO9001 protocols.
Key Specifications (Customizable):
| Parameter | Typical Range |
|---|---|
| Outer Diameter | 1,000 - 5,000 mm |
| Module | 10 - 36 mm |
| Weight Capacity | Up to 20,000 kg |
| Tooth Accuracy | AGMA 9-10 / DIN 6-7 |
Operational Benefits:
- Reduced Maintenance Costs: Forged homogeneity prevents crack propagation, lowering replacement frequency.
- High Torque Transmission: Optimized tooth geometry handles peak loads in ore processing.
- Corrosion Resistance: Material chemistry suitable for humid/chemical mining sites.
Backed by annual exports of US$2.5-5 million to 5 continents and certifications including ISO14000 and OHSAS18001, we guarantee traceable quality from our Henan facility. Our logistics expertise through Shanghai, Qingdao, and Tianjin ports ensures timely global delivery. Partner with 100+ skilled professionals dedicated to solving your heavy-duty gear challenges – request a custom quote today for gear rings built to endure.
FAQ:
Q1: Can you provide material test certificates?
A: Yes, we supply MTCs with chemical composition and mechanical properties per EN 10204 3.1.
Q2: What is the lead time for custom sizes?
A: Standard orders ship in 6-8 weeks; expedited options available for urgent requirements.
Q3: Do you offer on-site installation support?
A: Technical assistance is available through our global service network.
Q4: How do you handle gear ring balancing?
A: Dynamic balancing to G2.5 grade is standard, with options for G1.0 precision.
Q5: Are tooth profiles adaptable for non-standard equipment?
A: Yes, we design profiles based on client CAD data or operational parameters.
Q6: What packaging prevents transit damage?
A: We use steel frames + moisture-proof coating for sea freight protection.
Q7: Can you replicate failed OEM gear rings?
A: Reverse engineering services include metallurgical analysis and performance upgrades.
Q8: Is small-batch production acceptable?
A: MOQs are flexible for prototype or replacement orders.
