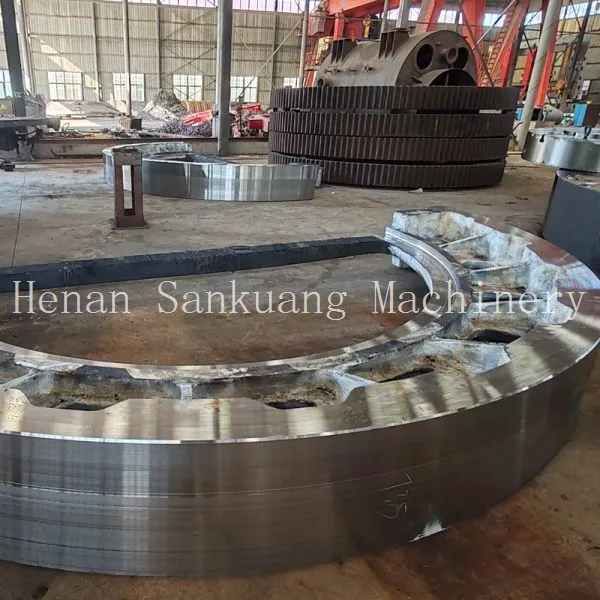

Custom-Sized Forged Gear Ring for Rotary Kilns With Non-Destructive Testing
Product Spotlights
Precision-forged custom gear rings engineered for rotary kilns. Key features include bespoke sizing for perfect kiln fit, superior forged alloy steel construction for unmatched durability under heavy loads, and mandatory non-destructive testing (UT/MT) ensuring structural integrity. Manufactured under ISO 9001, ISO 14000, and OHSAS 18001 standards, they deliver extended lifespan, reduced downtime, and enhanced operational safety. Global shipping available.
Negotiable
MOQ: 1 Combo (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Forged Alloy Steel
Application:
Other, Rotary Kiln Drive Systems
Size Range:
Customizable Diameter & Face Width
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rotary Kiln Girth Gear With 5-Year Warranty and Precision Alignment ServiceNegotiableMOQ: 1 Combo -
Large Diameter Forged Gear Ring for Rotary Kilns With 20-Year Fatigue LifeNegotiableMOQ: 1 Combo
-
Rotary Kiln Drive Gear Ring With Ground Tooth Profile for Smooth OperationNegotiableMOQ: 1 Combo
-
Heavy-Duty Rotary Kiln Gear Ring With Hardened Tooth Surface HRC50-55NegotiableMOQ: 1 Combo
-
Rotary Kiln Gear Ring for Cement Production With Onsite Installation SupportNegotiableMOQ: 1 Combo
Material
Other, Forged Alloy Steel
Application
Other, Rotary Kiln Drive Systems
Size Range
Customizable Diameter & Face Width
Processing Technology
Precision Forging & Machining
Quality Control
Non-Destructive Testing (NDT) Included
Certifications
ISO 9001, ISO 14000, OHSAS 18001
Customization
Tailored to Specific Kiln Dimensions
Port of Shipment
Shanghai, Qingdao, Tianjin, Lianyungang
As Henan San Kuang Machinery Technology Co., Ltd., a trusted manufacturer since 2014, we specialize in engineering robust, high-performance components for demanding industrial applications. Our custom-sized forged gear rings are engineered specifically for the rigorous demands of rotary kiln operations, offering unmatched strength, precision, and longevity to keep your critical processes running smoothly. With a proven track record serving global markets across North America, Europe, Asia, and beyond, and an annual export value exceeding US$2.5 Million, we deliver reliability you can count on.
This gear ring is not just a component; it's the backbone of your rotary kiln's drive system. Engineered for maximum durability and load-bearing capacity under extreme conditions.
Core Features & Technical Advantages:
- Superior Forged Construction: Manufactured from high-grade alloy steel using precision forging techniques, resulting in a dense, homogeneous grain structure that significantly enhances fatigue strength, impact resistance, and overall durability compared to cast alternatives. This minimizes the risk of catastrophic failure and extends service life.
- Precision Custom Sizing: Every gear ring is meticulously machined to your exact kiln specifications – diameter, face width, module, pressure angle, and tooth profile. This ensures perfect meshing with the pinion gear, optimal load distribution, and smooth, vibration-free operation, maximizing power transmission efficiency and reducing wear.
- Rigorous Non-Destructive Testing (NDT): Comprehensive NDT methods (including Ultrasonic Testing - UT and Magnetic Particle Testing - MT) are applied as standard to detect any internal or surface flaws (like inclusions, porosity, or cracks) invisible to the naked eye. This guarantees structural integrity and eliminates potential weak points before the gear enters service.
- Advanced Machining & Heat Treatment: Post-forging, gears undergo precision CNC machining for dimensional accuracy and perfect tooth geometry. Controlled heat treatment processes (quenching and tempering) are applied to achieve the optimal combination of surface hardness for wear resistance and core toughness for impact absorption.
- Engineered for Extreme Environments: Designed to withstand the high torque, heavy loads, thermal stresses, and often abrasive or corrosive atmospheres inherent in cement, lime, mineral, and metallurgical rotary kiln operations.
Typical Technical Specifications (Customizable):
| Parameter | Range / Specification |
|---|---|
| Main Material Grades | 42CrMo, 35CrMo, 34CrNiMo6, Custom Alloys |
| Outer Diameter (OD) | Customizable (Typically from 1m up to 10m+) |
| Face Width | Customizable (Based on torque requirements) |
| Module | Customizable (Standard or specified) |
| Tooth Hardness (Surface) | Typically 50-60 HRC (Heat treatable) |
| Core Hardness | Typically 28-35 HRC (Balancing toughness) |
| Accuracy Grade | ISO 1328 Class 8-9 (or as specified) |
| NDT Standards | ASTM E709 (MT), ASTM E164 (UT) or equivalent |
Client Benefits:
- Reduced Downtime & Maintenance Costs: Exceptional durability and built-in quality assurance minimize unexpected failures, costly repairs, and production stoppages.
- Enhanced Operational Efficiency: Precise gearing ensures smooth power transmission, reducing energy losses and mechanical wear on associated components (pinions, bearings).
- Extended Equipment Lifespan: Robust construction and resistance to wear significantly prolong the service life of the gear ring itself and contribute to the longevity of the entire kiln drive system.
- Operational Safety: Rigorous NDT and adherence to quality standards provide confidence in the structural integrity of this critical component, enhancing overall plant safety.
- Optimized Performance: Tailored fit and specifications ensure the gear ring operates at peak efficiency within your specific kiln setup.
Operating from our 10,000-30,000 sqm facility in Luoyang, China, with a dedicated team of 51-100 skilled professionals, our commitment to quality is unwavering. We hold internationally recognized certifications including ISO 9001 (Quality Management), ISO 14000 (Environmental Management), and OHSAS 18001 (Occupational Health & Safety), ensuring our manufacturing processes meet the highest global standards. Our substantial annual export value (US$2.5 Million - US$5 Million) and established presence across North America, South America, Eastern & Western Europe, Asia, Africa, and Oceania demonstrate our capability to reliably serve international clients. We efficiently ship worldwide via major ports like Shanghai, Qingdao, Tianjin, and Lianyungang. Invest in the reliability and performance of your rotary kiln. Choose our custom-forged, NDT-inspected gear rings for a solution built to endure. Contact Henan San Kuang Machinery today for a detailed quotation or technical consultation tailored to your specific kiln requirements.
Frequently Asked Questions (FAQ):
-
Q: What specific types of Non-Destructive Testing (NDT) do you perform?
A: We primarily utilize Ultrasonic Testing (UT) to detect internal flaws and Magnetic Particle Testing (MT) to identify surface and near-surface defects. Specific standards (like ASTM E164 for UT and ASTM E709 for MT) are followed, and reports are available. -
Q: How long does it typically take to manufacture a custom-sized forged gear ring?
A: Lead times vary significantly based on size, complexity, and current workload. Generally, expect 12-20 weeks from order confirmation to shipment. We provide a firm timeline upon receiving your detailed specifications. -
Q: Can you supply gears according to drawings from other manufacturers or specific standards (like AGMA, DIN)?
A: Absolutely. We specialize in custom manufacturing. Provide us with your detailed drawings (including material specs, tolerances, heat treatment requirements) or specify the standard (AGMA, DIN, ISO), and we will produce accordingly. -
Q: What documentation do you provide with the gear ring?
A: Standard documentation includes Material Certificates (including chemical composition and mechanical properties), NDT Reports (UT/MT), Dimensional Inspection Report, and Heat Treatment Charts. Certificates of Conformity and packing lists are also provided. Additional documentation is available upon request. -
Q: How do you handle packaging for such large, heavy components to prevent damage during ocean freight?
A: We employ robust packaging methods tailored to large gears: heavy-duty wooden crates with internal bracing and blocking, waterproof wrapping (VCI paper or plastic), and protection for machined surfaces (grease, protective caps). We have extensive experience shipping globally via major ports. -
Q: Do you offer installation services or technical support for gear ring alignment?
A: While we primarily manufacture and supply the gear ring, we can provide detailed installation guidelines and technical specifications. On-site installation supervision or alignment services can be discussed and arranged separately if required. -
Q: What is your warranty policy for these forged gear rings?
A: We offer a standard warranty against material defects and workmanship for a defined period (typically 12 months) under normal operating conditions. Warranty terms are clearly stated in our sales contract. -
Q: Can you provide gears made from alternative materials (e.g., stainless steel) or with special coatings?
A: Yes, material selection can be customized based on application requirements (corrosion resistance, specific strength needs). Special coatings or surface treatments (like specialized hardening or anti-corrosion coatings) can also be applied upon request.
