Factory Customized Wine Making Machine Stainless Steel Wine Fermentation Tank
US$ 20000.00
1 Set
US$ 16000.00
≥2 Set
Key Specifications
Get Latest Price
processing:
Fermenting Equipment
place of origin:
Shanghai, China
brand name:
GY
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical Composting Equipment Manure Biological Fermentation Tank for Organic FertilizerUS$ 16000.00 - 20000.00MOQ: 1 Set -
China Factory Edible Gelatin Production Plant Gelatin Making MachineUS$ 890000.00 - 1000000.00MOQ: 1 Set
-
Good Quality 5L-500L Bio Fermenter Used for BacteriaUS$ 29000.00MOQ: 1 Set
-
Bio FermenterUS$ 59000.00 - 67000.00MOQ: 1 Set
-
Factory High Quality Hard Herbal Crushing Machine Fruit and Vegetable Crushing MachineUS$ 5800.00MOQ: 1 Set
processing
Fermenting Equipment
place of origin
Shanghai, China
brand name
GY
processing types
Beer/Wine/Microbiological
voltage
220 /380V
power(w)
As design
dimension(l*w*h)
As design
weight
500 KG
warranty
one year
Machinery Capacity
100 L
core components
Motor
key selling points
Easy To Operate
After-sales Service Provided
Engineers available to service machinery overseas
Material: Stainless steel
Rotate speed: 50-400 rpm
Processing
Fermentation process
Machine Introduction
Capcity: 5L-20000L
Pressure: 0.1Mpa-0.6Mpa
Rotate speed: 50-200/400rpm
Agitator type: Mechanical agitator
Material: Contacting parts is made by SS316,other parts is made by SS304
Surface finishes:
Inside surface Ra0.28μm - 0.4μm by mechanical polishing or electropolishing
Outside surface Ra0.6μm - 0.8μm by satin finishing
Feature:
1. Fermentors can be sterilized easily by sterilizable -in -place
2. Large 10.4" colourful simens touch screen simplifier entering set points and provides displays of parameter.
3. Advanced software to make it easy for operation and understanding.
4. Stainless steel vessel, piping and control cabinet has long life
5. Excellent stability and convenient to operate
6. Modular design provide system flexibility
7. Small footprint to minimize space requirement
8. Opening piping frame with plenty of space between valves and piping, make it easy for operation and maintenance
Technical patameters
| Model | GY-196 |
| Working volume | 3-20000L |
| Filling volume | 65-75% |
| Material | Wetted parts are SS316L, and others are SS304. Vertical type with sight glass. |
| Surface finish |
Internal surface is 0.28-0.6μm by mechanical polishing, (passivation or electro-polish are optional) outside surface is 0.4-0.8μm by satin finish. |
| Pressure |
Working pressure inside vessel: 0.2mpa Design pressure inside vessel: 0.25mpa Working pressure inside jacket: 0.3mpa Design pressure inside jacket: 0.35mpa Pressure can be also designed according to client’s detail requirement. |
| Agitator |
1.Fermentor use SEW motor reducer mechanical agitator with two layer six blade impeller, one layer defamer and four baffles. chanical seal (single or double mechanical seal) 4.speed range: 50-400rpm (it depends on the size of the vessel) |
| Configuration of vesse |
1. Using alcohol flame inoculation 2.sterile sampling vale and bottom valve 3.PH, DO, temp. sensor on lower side, side glass, top with foam and level probe, and 12v sight glass with lamp, etc. |
| Construction |
Floor-type One fermentor vessel with one control system (Siemens PLC and HMI) |
| Operating panel | Chinese and English version |

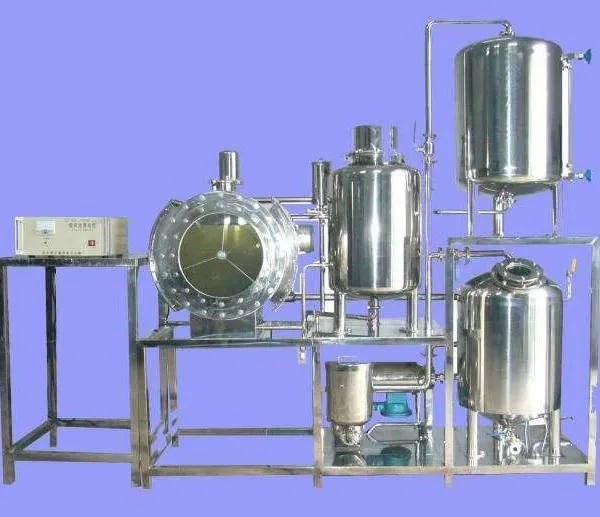

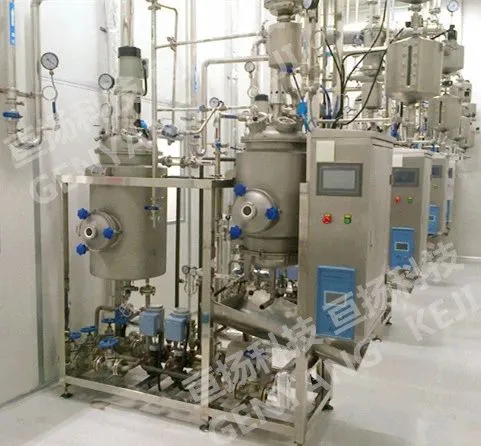

More Pictures
