Home > Industrial Equipment & Components > Boiler & Furnace > Furnace > Shanghai Factory 500kg Intermediate Frequency Aluminium Scrap Steel Copper Melting Furnace

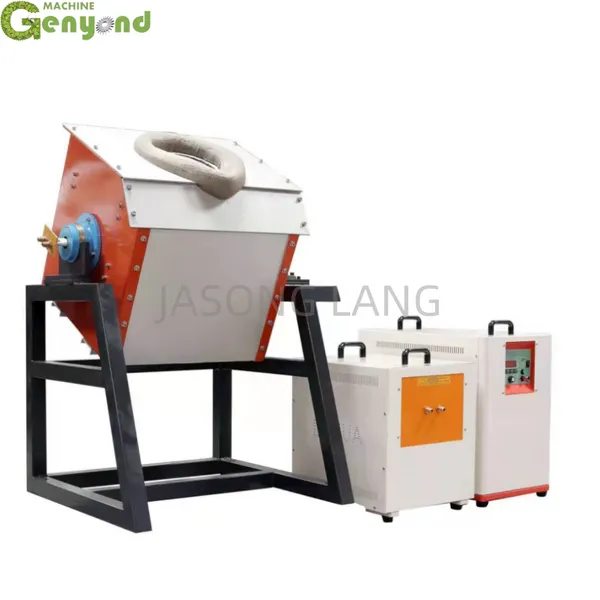

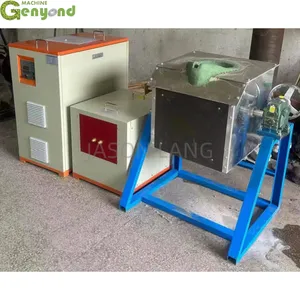

Shanghai Factory 500kg Intermediate Frequency Aluminium Scrap Steel Copper Melting Furnace
US$ 3000.00
≥1 Set
Key Specifications
Get Latest Price
Usage:
Melting Scrap Metal Material Making
place of origin:
Shanghai, China
type:
Induction Furnace
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Induction Melting Furnace for Copper/Aluminum/Steel/IronUS$ 4350.00MOQ: 1 Set -
Genyond Steel Tilting Furnace Machine Iron Electric Smelting Metal Melting Induction Industrial FurnaceUS$ 4400.00MOQ: 1 Set
-
70kw 150kw 200kw 300kw Induction Melting Furnace/Machine for Scrap AluminumUS$ 4500.00MOQ: 1 Set
-
250 Kg Capacity Melting Scrap Stainless Iron Copper Metal Aluminum Shell Induction FurnaceUS$ 4600.00MOQ: 1 Set
-
Metal Industrial 1000kg High Frequency Induction Electric Furnace 500kg Induction Melting FurnaceUS$ 4700.00MOQ: 1 Set
place of origin
Shanghai, China
type
Induction Furnace
usage
Melting Furnace
video outgoing-inspection
Provided
machinery test report
Provided
core components
Bearing, Motor
brand name
Genyond
voltage
380V
dimension(l*w*h)
1000*700mm*950mm
weight (t)
0.5
warranty
1 Year
key selling points
High Productivity
Product Name
Induction Metal Melting Furnace
Capacity
10kg~500kg
Melting Material
Scrap Steel Iron Copper Aluminum
After-sales Service Provided
Online Service
Application
Melting Aluminum
Max temperature
1800℃
Melting Time
6-8mins
Heating method
electrical heating
Product Description
Induction Heating machine melting Aluminum stainless steel Melting furnace
Application for Induction melting Furnace:
Induction heater is mainly used to melt precious metal, such as gold, silver, copper, aluminum, zinc, nickel, tin, brass, alloy, titanium, alloy cast iron and a variety of non-ferrous metals, and steel etc.
1. For the small amount of melting, a crucible is enough. For the large amount of melting, a titling furnace will be more
convenient for you to pour the solution.
2. The melting time is about 20-30min for hot furnace and 40-50min for cold furnace.
3. Precious metal melting, like gold, sliver, platinum, etc.
4. Semiconductor material melting
5. Specialized steel, iron, copper melting
6. Metal alloy melting, like aluminum alloy, zinc alloy, copper alloy, etc.
7. Sponge iron,glass
8. Other metal melting applications
Induction heater is mainly used to melt precious metal, such as gold, silver, copper, aluminum, zinc, nickel, tin, brass, alloy, titanium, alloy cast iron and a variety of non-ferrous metals, and steel etc.
1. For the small amount of melting, a crucible is enough. For the large amount of melting, a titling furnace will be more
convenient for you to pour the solution.
2. The melting time is about 20-30min for hot furnace and 40-50min for cold furnace.
3. Precious metal melting, like gold, sliver, platinum, etc.
4. Semiconductor material melting
5. Specialized steel, iron, copper melting
6. Metal alloy melting, like aluminum alloy, zinc alloy, copper alloy, etc.
7. Sponge iron,glass
8. Other metal melting applications
Introduce
Main features of Melting Furnace machines:
1. Melting Furnace machines can be used for the melting of steel, stainless steel, brass, aluminium, gold, silver and so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.
3. Wide frequency range from 1kHz to 20kHz, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.
4.100% duty cycle
5. Power efficiency is 20% higher than the SCR medium frequency machines;
6. Small and light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory,
but also suitable for the college and researching companies to use.
1. Melting Furnace machines can be used for the melting of steel, stainless steel, brass, aluminium, gold, silver and so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.
3. Wide frequency range from 1kHz to 20kHz, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.
4.100% duty cycle
5. Power efficiency is 20% higher than the SCR medium frequency machines;
6. Small and light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory,
but also suitable for the college and researching companies to use.
Specification
Model |
Max power |
Melting steel and stainless steel |
Melting brass copper silver gold |
Melting aluminium |
GYMF-15 |
15kw |
3kg |
10kg |
3kg |
GYMF-25 |
25kw |
5kg |
20kg |
3kg |
GYMF-35 |
35kw |
10kg |
30kg |
10kg |
GYMF-45 |
45kw |
18kg |
50kg |
18kg |
GYMF-70 |
70kw |
25kg |
100kg |
25kg |
GYMF-90 |
90kw |
40kg |
120kg |
40kg |
GYMF-110 |
110kw |
50kg |
150kg |
50kg |
GYMF-160 |
160kw |
100kg |
250kg |
100kg |
GYMF-240 |
240kw |
150kg |
400kg |
150kg |
GYMF-300 |
300kw |
200kg |
500kg |
200kg |
Processing flow
Detail Pictures
Packing & Delivery
Company Profile
FAQ
