Teflon coating service Teflon Lined pipe Manufacturer Teflon corrosion-resistant transport pipeline
Being the top supplier of Teflon linings in China , we provide excellence in quality, longevity, and service that is tuned to stringent industrial standards. Teflon lining is indeed a process to apply a layer of PTFE lining inside the equipment, pipes, and fittings for providing phenomenal resistance against extremely corrosive and aggressive chemicals. With non-reactive and non-stick properties, Teflon lining protects against damage and makes things safer, longer under the rugged conditions of industries. Chemical processing, pharmaceuticals, water treatment, oil & gas, and petrochemicals are some of the industries that extensively use Teflon-lined systems for treating acids, solvents, and other toxic media. Teflon is used for harsh media because of its superior chemical resistance, wide temperature tolerance, low friction and non-contaminating nature. It efficiently prevents corrosion, contamination, and material degradation with guaranteed performance at low maintenance. We provide Teflon lining solutions based on a range of base metals, Mild Steel (MS), Stainless Steel (SS), and Carbon Steel (CS)—design-engineered according to client specifications.
TFL Telfon Lined Pipe Manufacturer in Jiangsu, SS Telfon Lined Pipe Supplier in Kuala Lumpur, MS Telfon PTFE Lined Pipe Exporter in jiangsu, MS Telfon Lined Pipe Stockist in Kuala Lumpur, SS Telfon Lined Pipe Distributor in Malaysia, Mild Steel Telfon PTFE Lined Pipe Manufacturer in Malaysia, SS Polypropylene Telfon Lined Pipe Supplier in Kuala Lumpur, Stainless Steel Teflon Lined Pipe Exporter in Malaysia, Mild Steel Telfon Lined Pipe Stockist in Kuala Lumpur, SS Telfon Lined Pipe Distributor in Malaysia.
Table of Contents
What is Teflon Lined Pipe?
Teflon Lined Pipe Specification
Largest Teflon Lined Pipe Supplier jiangsu china
Why Choose Kali PTFE Lining for PTFE Teflon Lined Pipe?
Types of Teflon Lined Pipe We Offer
Dimension Chart of Teflon Lined Pipe
Quality Control Facilities at Kali PTFE Lining
Benefits of Teflon Lined Pipe
Applications of Teflon Lined Pipe
Frequently Asked Questions (FAQ)
Visit Our Other Products

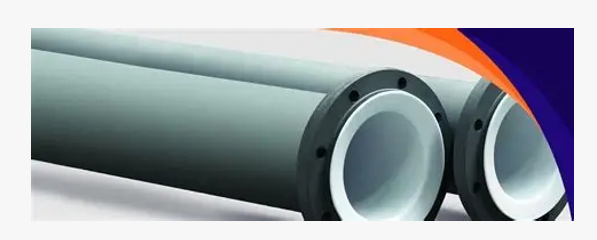

What is Teflon Lined Pipe?
A Teflon lined pipe is a pipe made of metal lined on the inside with PTFE or Polyteatriafluorethylene more commonly known by the trade name Teflon to provide ultimate chemical resistance as well as resistance to corrosion. The lining produces a non-reactive barrier in between the internal metal surface of the pipe and hostile media such as acids, solvents, or corrosive gases. Teflon lined pipes are extensively used in chemical processing, pharma, oil & gas, and water treatment plants where purity and durability are of most concern. Union of the non-stick and non-corrosive nature of Teflon with the strength of base metals like MS, SS, or CS guarantees safe, long-term fluid handling.
MS Telfon Lined Pipe Manufacturer in China, Mild Steel Telfon Lined Pipe Supplier in Kuala Lumpur, MS Telfon Lined Pipe Exporter in China, SS PTFE Telfon Lined Pipe Distributor in Kuala Lumpur, High-Quality SS Telfon PTFE Lined Pipe Stockist in China, Teflon MS Lined Pipe Manufacturer in China, MS Telfon PTFE Pipe Supplier in Kuala Lumpur, Teflon PTFE Lined Pipe Fittings Exporter in China, Stainless Steel Telfon Lined Pipe Dimensions Distributor in Kuala Lumpur, SS PTFE Telfon Lining Process Stockist in China.
Teflon Lined Pipe Specification
ALL DIMENSIONS ARE IN MM
PIPE
ANSI B 36.1D, ASTM A 10B GR B SCH 40 Upto 150 nb, 200 nb to 600 nb mn sch 20* & 700 nb onwards std sch*
450 & Above Sch pipe as above or welded construction from IS 2062 Plates with Spot X-Ray
FLANGE: ANSI B. 16.5 ASA 150# IS 2022 GR A.
LINER: ASTM D 1457 TYPE -II PTFE / 700 NE ONWARDS PTFE WELDED LINER
STANDARD MAX. LENGTH OF PIPE 3000 MM
THE TOLERANCES OF LENGTH OF PIPE +/- 3.2
LINING AND OTHER DIMENSIONAL TOLERANCES AS PER ASTM A 1545 9B / ASTM D 1457 TYPE III
OTHER SPECIFICATIONS / DIMENSIONS / VACCUM / SERVICE AVAILABLE ON REQUEST
P* G-2MM: J* 0.88 G
Largest Teflon Lined Pipe Supplier in Jiangsu, China
Kali PTFE Lining is a leading supplier of SS PTFE Telfon Lined Pipes in Jiangsu, China, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
SS Telfon PTFE Lined Pipes Exporter in China, Mild Steel PTFE Telfon Lined Pipes Supplier in Jiangsu, SS Telfon Lined Pipe Dealer in China, Telfon PTFE Lined Pipes Price in Jiangsu, Corrosion Resistant Telfon Lined Pipe Exporter in China, Chemical Resistant SS Telfon PTFE Pipe Manufacturer in China, Anti-Corrosive MS Telfon PTFE Lined Pipe Supplier in Jiangsu, Stainless Steel Telfon PTFE Lined Pipe Exporter in China, CS Teflon PTFE Lined Pipe Distributor in Jiangsu, CS Telfon PTFE Lined Piping System Supplier in China.
Why Choose TFL Lining for PTFE Teflon Lined Pipe?
Cost-Effective Strength
Corrosion Protection with PTFE
Custom Fabrication Flexibility
Ideal for Low to Moderate Pressure Systems

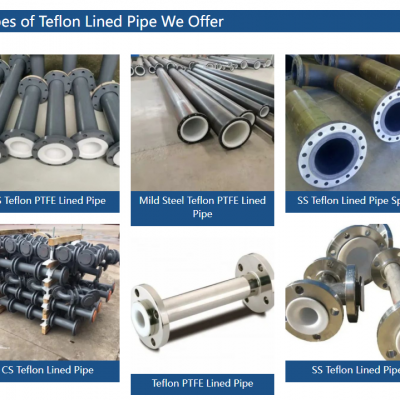

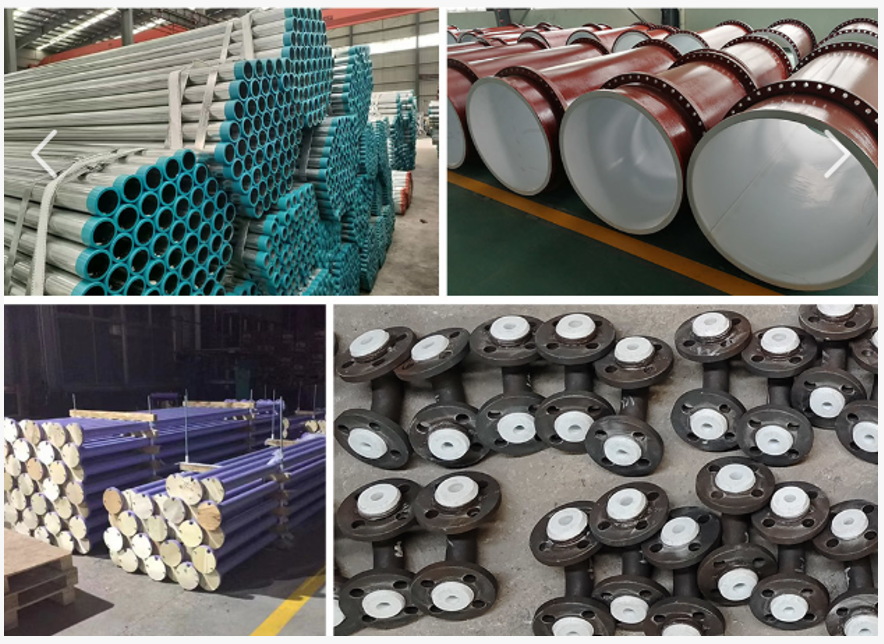

Types of Teflon Lined Pipe We Offer

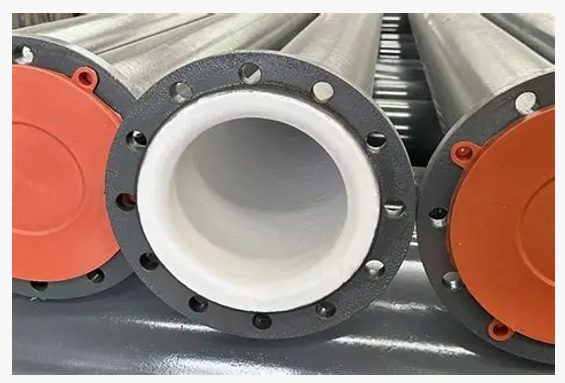

CS Teflon PTFE Lined Pipe
CS Teflon Lined Pipe
Mild Steel Teflon PTFE Lined Pipe
Teflon PTFE Lined Pipe
SS Teflon Lined Pipe Spool

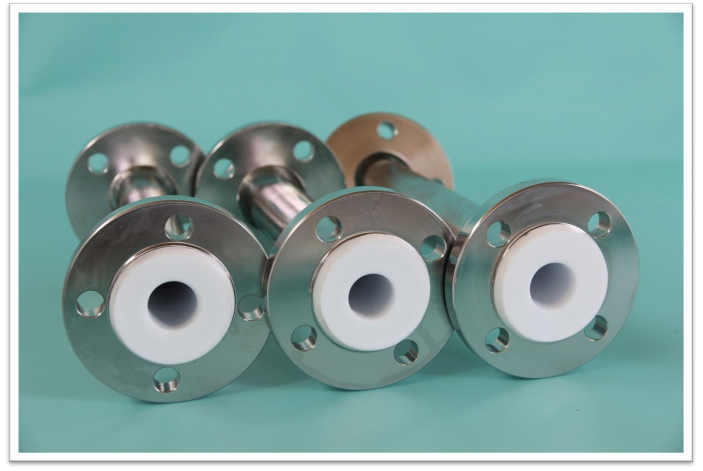

SS Teflon Lined Pipe
Dimension Chart of Teflon Lined Pipe
| Size (NB) | øA±1 | øB | øC | PCD | øE | G | No. of Holes | Holes Dia | Pipe THK. K | Liner THK. S | Face THK. H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 MM | 14 | 21 | 34.9 | 60.3 | 88.9 | 11.1 | 4 | 15.9 | 2.9 | 4 | 2.4 |
| 20 MM | 19.6 | 26.6 | 42.7 | 69.8 | 98.4 | 12.7 | 4 | 15.9 | 3.4 | 4 | 2.4 |
| 25 MM | 19.6 | 26.6 | 50.8 | 79.4 | 108 | 14.2 | 4 | 15.9 | 3.4 | 4 | 2.4 |
| 32 MM | 28.1 | 35.1 | 63.5 | 88.9 | 117.5 | 15.8 | 4 | 15.9 | 3.6 | 4 | 2.4 |
| 40 MM | 33.9 | 40.9 | 73 | 98.4 | 127 | 17.5 | 4 | 15.9 | 3.7 | 4 | 2.4 |
| 50 MM | 45.5 | 52.5 | 92.1 | 120.7 | 152.4 | 19.1 | 4 | 19 | 3.9 | 4 | 2.4 |
| 65 MM | 55.7 | 62.7 | 104.8 | 139.7 | 177.8 | 22.2 | 4 | 19 | 5.2 | 4 | 2.4 |
| 80 MM | 70.9 | 77.9 | 127 | 152.4 | 190.5 | 23.8 | 4 | 19 | 5.5 | 4 | 2.4 |
| 100 MM | 95.3 | 102.3 | 157.2 | 190.5 | 228.6 | 23.8 | 8 | 19 | 6 | 4 | 2.4 |
| 125 MM | 119.2 | 128.2 | 185.7 | 215.9 | 254 | 23.8 | 8 | 22.2 | 6.6 | 5 | 3.8 |
| 150 MM | 145.1 | 154.1 | 215.9 | 241.3 | 279.4 | 25.4 | 8 | 22.2 | 7.1 | 5 | 3.8 |
| 200 MM* | 197.4 | 206.4 | 269.9 | 298.5 | 342.9 | 28.6 | 8 | 22.2 | 6.35 | 5 | 3.8 |
| 250 MM* | 249.3 | 260.3 | 323.9 | 362 | 406.4 | 30.2 | 12 | 25.4 | 6.35 | 6 | 4 |
| 300 MM* | 300.1 | 311.1 | 381 | 431.8 | 482.6 | 31.8 | 12 | 25.4 | 6.35 | 6 | 4 |
| 350 MM* | 328.7 | 339.7 | 412.8 | 476.3 | 533.4 | 34.9 | 12 | 28.6 | 7.92 | 6 | 4 |
| 400 MM* | 379.5 | 390.5 | 469.9 | 539.8 | 596.9 | 36.5 | 16 | 28.6 | 7.92 | 6 | 4 |
| 450 MM* | 429.3 | 441.3 | 533.4 | 577.9 | 635 | 39.7 | 16 | 31.8 | 7.92 | 6.5 | 4.4 |
| 500 MM* | 475.9 | 488.9 | 584.2 | 635 | 698.5 | 42.9 | 20 | 32 | 9.52 | 7 | 4.8 |
| 600 MM* | 575.9 | 590.5 | 692.2 | 749.3 | 812.6 | 47.6 | 20 | 35 | 9.52 | 8 | 5.6 |
| 700 MM | 685.1 | 692.1 | 801.6 | 863.6 | 827.1 | 50 | 28 | 35 | 9.52 | 4 | 2.4 |
| 800 MM | 786.7 | 793.7 | 916.2 | 977.9 | 1060.4 | 50 | 28 | 41.3 | 9.52 | 4 | 2.4 |
Contact Us for a Quick Quote and Updated Price List
Contact Now
Quality Control Facilities at Kali PTFE Lining
Hydro-Testing facility at 20-28 kg/cm2.
Spark Testing facility at 10KV -15 KV DC after lining
Hardness Tester for Moldings.
Tensile Strength Testing Machine.
Specific Gravity Testing Machine.
Benefits of Teflon Lined Pipe
-
Exceptional Chemical Resistance
Teflon (PTFE) resists a wide range of corrosive chemicals, acids, and solvents, making it ideal for harsh industrial environments.
-
Non-Stick & Low Friction Surface
The smooth, non-stick inner surface reduces flow resistance, prevents buildup, and improves fluid efficiency.
-
Thermal Stability
Teflon performs reliably across a wide temperature range (typically -20°C to +200°C), maintaining integrity under thermal stress.
-
Contamination-Free Transport
PTFE lining is non-reactive and inert, ensuring purity of media—critical for pharmaceuticals, food, and high-purity chemical applications.
CS Telfon PTFE Coated Pipe Manufacturer in China, MS Telfon PTFE Lined Pipe with Flanges Exporter in Jiangsu, Mild Steel Telfon PTFE Lined Pipes Dimensions Stockist in China, CS Telfon Industrial PTFE Pipes Supplier in Jiangsu, CS Telfon PTFE Pipe Fittings Dealer in China, SS Teflon Lined SS 316 Pipe Exporter in China, CS Telfon Lined Carbon Steel Pipe Distributor in Jiangsu, Chemical Application SS Telfon PTFE Pipes Supplier in China, MS Telfon PTFE Lined Pipe Price in Jiangsu, Heavy-Duty MS Telfon PTFE Lined Pipes Stockist in China.
Applications of Teflon Lined Pipe
Chemical Processing Industry
Food Industry
Pulp and Paper Industry
Oil and Gas Industry
Water Treatment Plant
Pharma industry
