Shanghai Popular Automatic Sandwich Dorayaki Pancake Making Machine Production Line With Best Price
US$ 10600.00
≥1 Set
Key Specifications
Get Latest Price
brand name:
Genyond
place of origin:
Shanghai, China
Max. Capacity:
2000pcs/h
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Genyond High Quality Dorayaki Cake Forming Machine for Hot SaleUS$ 9220.00MOQ: 1 Set -
Shanghai Wholesale Gas Heating Dorayaki Pancake Souffle Machine Souffle Pancake Making MachineUS$ 10950.00MOQ: 1 Set
-
Hot Sale Sandwich Pancake Making Machine/ Dorayaki Automatic Pancake Machine/ Sandwich Pancake LineUS$ 10900.00MOQ: 1 Set
-
Shanghai Genyond Factory Best Price Dorayaki Pancake Making MachineUS$ 9100.00MOQ: 1 Set
-
Genyond Automatic Industrial Automatic Dorayaki Making Machine Pancake Making Machine Factory PriceUS$ 15500.00MOQ: 1 Set
brand name
Genyond
place of origin
Shanghai, China
Max. Capacity
2000pcs/h
condition
New
Control Type
Touch Control
Cooking Pan Size
10-11 in
Depth
15-16.9 in
dimension(l*w*h)
3980*1200*2280mm
Heat source
Electric, Gas
Height
13.0-14.9 in
Item width
16.0-17.9 in
Key Selling Points
Long Service Life
Material
304 Stainless Steel, SS304
Special Feature
Adjustable Thermostat
voltage
220V/380V
warranty
1 Year
weight
1000
Product name
Dorayaki pancake
Application
Bread Bakery Machine
Capacity
900pcs~6000pcs per hour
Name
Dorayaki pancake production line
Usage
Sancks
Key words
Baking Oven, Mixer, cake making machine
After-sales Service Provided
Online Service
Advantage
Cost-effective
Suitable for
Snacks Food Making
Product Description
Working flow:
Mixing -- Forming -- Barking -- Flipping cake -- Filling -- Stamping -- Cake combine -- Cooling -- Pack

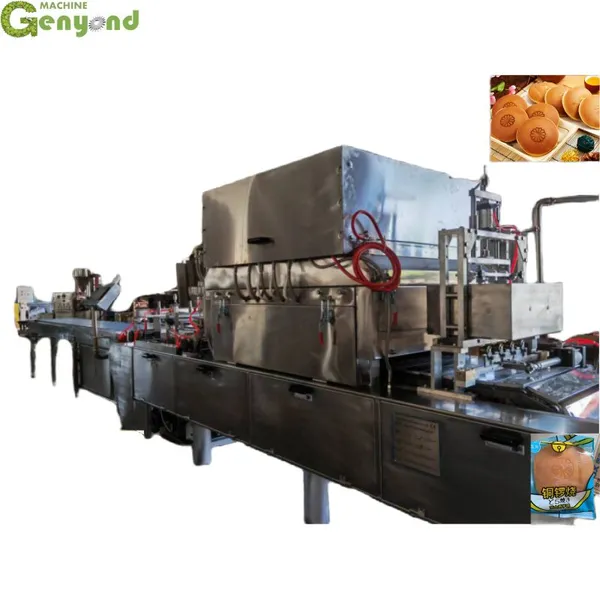

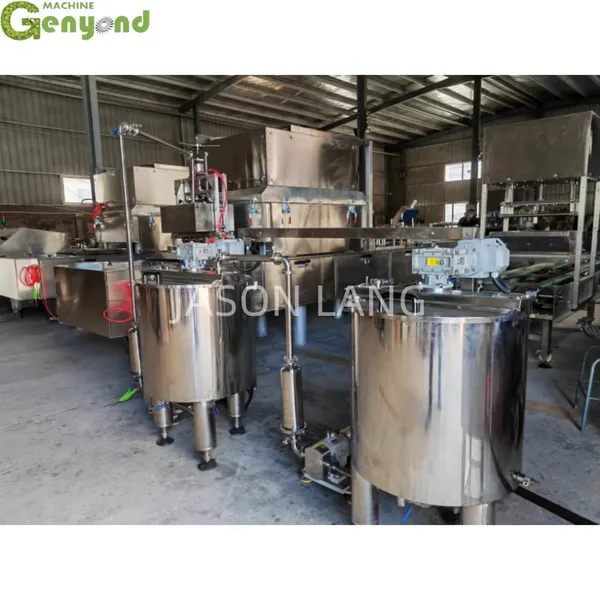

The automatic pancake production line stands on our own research and development. It is composed of mixer, automatic batter feeding machine, automatic baking machine (automatic depositing and filling), cooling conveyor. The whole line requires about 5-6 staff and it is known for stable design, strict producing processes and excellent technique.
The pancake produced by this machine is with high quality and good taste, it is a very popular leisure food all over the world. This machine can produce various pancakes with different flavor through filling jam, cream or bean paste.
Industrial pancake production
Sandwich pancake systems are composed of two connected machines. The pancake griddle and sandwiching machine run independently but are fully synchronized.

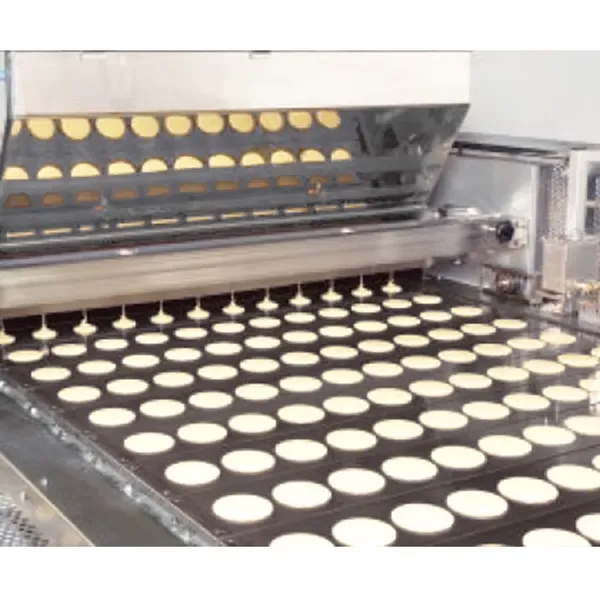

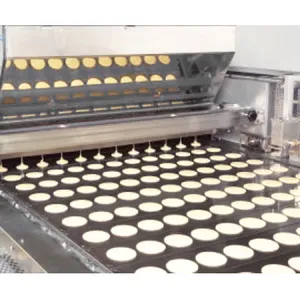

For baking, we use a reinforced copper plate. The extraordinary heat retention capacity produces a very smooth pancake surface.Both gas and electricity can be used as a heat source to bake the products. By changing the speed of the griddle and the position of the depositor the baking time can be adjusted. A top-mounted heater on the pancake production system cooks the pancake from the top before flipping.The positions of both the top-mounted heater and flipper can also be fine-tuned to suit different recipes. Below the dorayaki production machine, debris is removed from the griddle plates and oil is applied to ensure the pancakes are released properly.
The sandwiching machine first aligns the products arriving from the pancake machine and then turns half of the pancake rows over to apply the filling. The other row of pancakes is not turned, they remain face up to allow printing. Finally, the pancake is ready for sandwiching and will be sealed to keep the filling in. The sealing unit can either close the pancake keeping the filling inside or just sandwich it, leaving the edges open.
Specification
Model |
GYDP-100 |
GYDP-200 |
GYDP-300 |
GYDP-400 |
Production Capacity |
100kg/h |
200kg/h
|
300kg/h |
400kg/h |
Oven Length |
8m |
12m |
14m |
16m |
Gas Consumption |
10kg/h |
15kg/h |
20kg/h |
25kg/h |
Product Paramenters
Machine name |
Automatic dorayaki cake production line |
||||||
Machine model |
GYDP-100~GYDP-500 |
||||||
Capacity |
900pcs-6000pcs/h |
||||||
Processing step |
mixing -forming -baking-moving-dropping -cooling- fast & slow speed turn-filling -stacking -combining-UVconvery-packing |
||||||
Main raw material |
sugar ,flour ,Glucose,water,egg,chocolate,milk powder ,flavor ,color |
||||||
Required workshop space |
≥ 200m² |
||||||
Final product workshop space |
≥ 100m² |
||||||
Raw material workshop space |
≥ 100m² |
||||||
Worker for each shift |
3-10 people |
||||||
