Genyond Egg Washing Grading Packing Equipment Good Price
US$ 20000.00
≥1 Set
Key Specifications
Get Latest Price
weight (kg):
1000
video outgoing-inspection:
Provided
machinery test report:
Provided
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chicken Egg Automatic Weight Sorter Classify Size Small Scale Grader Sort Egg Grade Machine by WeightUS$ 27000.00MOQ: 1 Set -
Factory Eggs Washing Boiling Peeling Machine Whole Line/ Complete Set of Egg Processing EquipmentUS$ 33000.00MOQ: 1 Set
-
Double Reamer Knives Meat Mincer for Chopping Meat Grinder MachineUS$ 5100.00MOQ: 1 Set
-
Heavy Duty Commercial Meat Processing GrinderUS$ 3200.00MOQ: 1 Set
-
Frozen Fresh Sausage Making Machine Meat Mincer Grinder MachineUS$ 4320.00MOQ: 1 Set
weight (kg)
1000
video outgoing-inspection
Provided
machinery test report
Provided
core components
Motor, PLC, Gearbox
place of origin
Shanghai, China
brand name
Genyond
type
egg Processing Machinery
warranty
1 Year
application fields
egg food factory
machinery capacity
10000-60000pcs/h
machinery function
Automatic
Name
Eggs cleaning production line
Product name
Eggs washing grading packing machine
Usage
Food Industry Equipment
Material
304 Stainless Steel
Keywords
eggs washing grading packing production line
Raw material
eggs
Capacity
10000~60000pcs per hour
Voltage
220V/380V
After-sales Service Provided
Online Support
Certification
CE ISO
Product Description

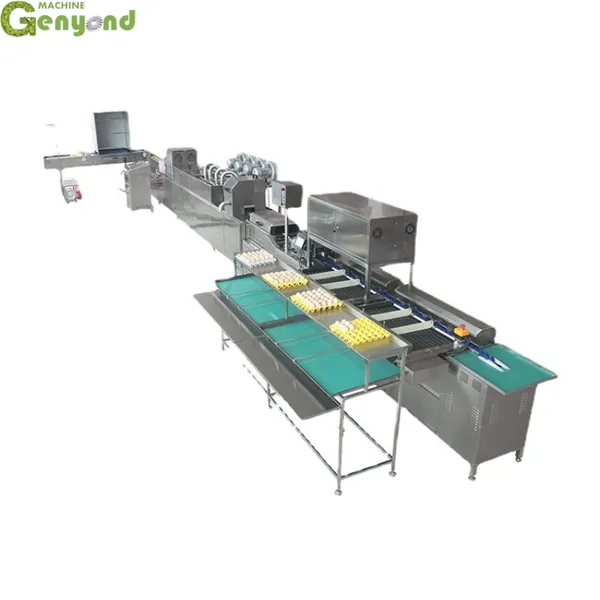

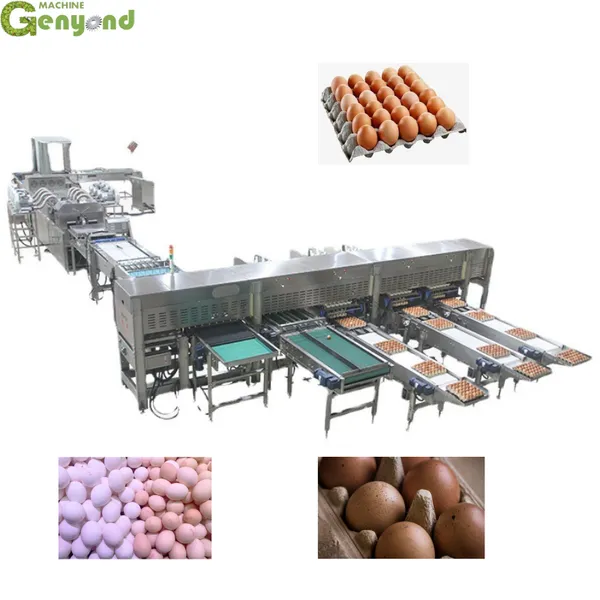

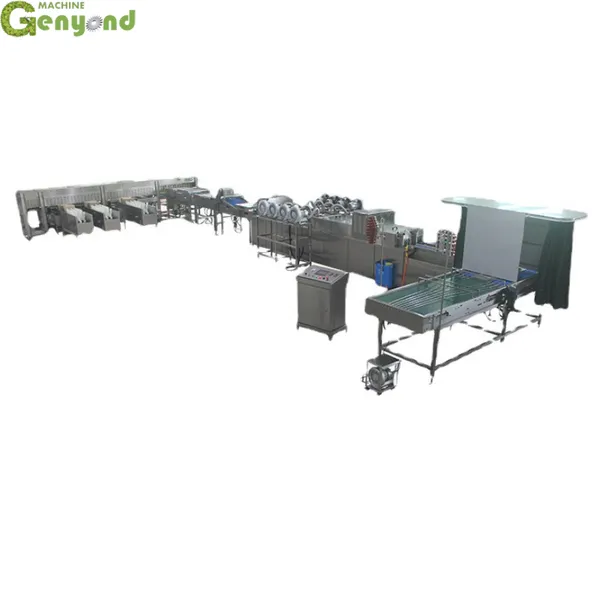

Eggs cleaning & grading & packing production line
The clean egg production line is a large-scale clean egg processing equipment. The maximum processing capacity of the equipment can reach 60,000 eggs/hour. It has functions such as disinfection spraying, cleaning, air drying, oil spraying, automatic turning, weight grading, and automatic packaging. It can be directly connected to the central egg collection belt. It can also be equipped with automatic egg loading machine with manipulator, online coding, AI visual inspection and other functions. Different configurations can be selected for different application scenarios.
The clean egg production line can load 5*6 egg trays, and can also meet the automatic loading of egg trays (boxes) such as blister boxes and pulp boxes of specifications such as 2*5/2*6/3*5/3*6. It is suitable for large and medium-sized laying hen farms or egg processing companies.
Main function:
*Handle egg: adopts negative sucker feeding egg. Hand don’t touch egg to minimize infection;
*Disinfection: Use disinfectant spray eggs, kill pathogenic bacteria and microorganisms;
*Cleaning: Use hot water and secondary four brush scrub eggs, to ensure that the egg surface clean;
*Drying: USES the high pressure air blower, quickly remove moisture on the surface of the egg;
*Printing: Eggshell label production date, batch and trademark, etc;
*oil injection: In eggshell spraying a layer of protective film, covering the wool stoma, prevent bacteria to enter and prevent
moisture loss, the purpose of keeping fresh;
*sterilization: The c-band ultraviolet disinfection again on egg surface, sterilization equipment belt, at the same time reduce the secondary pollution;
*Light check: Using LED light source illuminate, detect unqualified eggs to the naked eye;
*Grading: Determined by weight egg big, medium, and small level (at most) can be divided into 5 levels, tooling box packaging;
Processing Flow
Automatic egg cleaning grading packing line Process flow:
1, Egg in the water: pour the whole basket of eggs into the sink, and the eggs will be transported up the slope automatically through the conveyor chain.
2, High pressure spray: in the process of conveying by high pressure spray water, can spray on the temperature, spray on the surface of the egg disinfectant.
3, Brush cleaning: after the water spray into the brush cleaning, the egg in the process of transmission to ensure rotation, and use the brush to brush the egg in all directions.
4, Light inspection: use special light source and mechanical structure, transmission of eggs, can be checked not fresh eggs, impurities, bubble eggs and other defective eggs.
5, Drying system: mechanical brushing and low-temperature drying are adopted to remove water attached to the surface of the egg.
6, Electronic grading (also with mechanical grading) : using an electronic control system, eggs can be divided into 5 or 7 grades according to different weights, from large to small.
7, Egg receiving in water: egg receiving baskets can be configured after grading and eggs receiving in water to save labor and reduce production costs.
The eggs cleaning line adopts the modular design, which can be selected according to the customer's production process for the transition on the egg + grading equipment, optical inspection system and drying system.
Product Paramenters
Model |
GY-E |
Capacity |
10000~60000eggs/h |
Sorting accuracy |
±1g |
Level |
Up to 6 levels can be sorted |
Power |
50kw |
Voltage |
380V, 3PH, 50Hz |
Size |
16000*12000*2000mm |
Function |
Connect to the egg collection conveyor belt of the breeding farm, spray disinfectant, clean, air dry, spray oil, automatically turn around, perform optical inspection, electronic grading, manually send out egg trays, and automatically load egg trays. |
