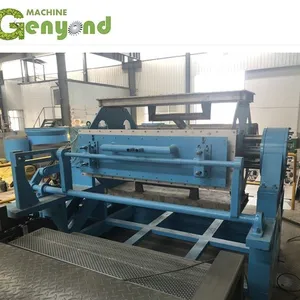

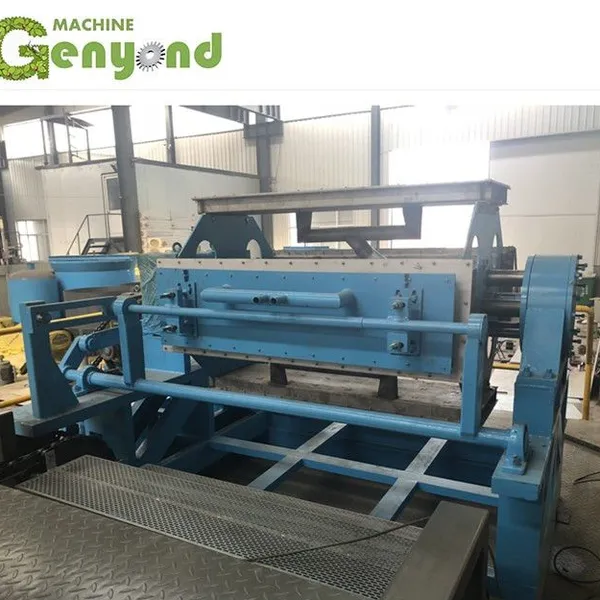

Full Automatic Paper Egg Tray Machine
US$ 40000.00
≥1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Plate Machine
processing type:
FORMING
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Egg Shell and Liquid Separating Machine|Chicken Egg Breaking MachineUS$ 80000.00 - 90000.00MOQ: 1 Set -
Fully Automatic Paper Pulp Egg Carton Tray Making MachineUS$ 40000.00MOQ: 1 Set
-
Fish Skin Scaler Machine/ Fish Scale Removing Machine/ Fish Descaler MachineUS$ 28000.00 - 30000.00MOQ: 1 Set
-
Fish Scale Removing Machine / Fish Descaler /Fast Fish Descaling MillUS$ 5000.00MOQ: 1 Set
-
Sausage Automatic Machine Production LineUS$ 19000 - 99999MOQ: 1 Set
Condition
New
Product Type
Paper Plate Machine
processing type
FORMING
place of origin
Shanghai, China
brand name
GENYOND
voltage
220V/380V
power(w)
15KW
dimension(l*w*h)
2800X1400X1700MM
warranty
12 months
production capacity
Other
machinery test report
Provided
video outgoing-inspection
Provided
core components
Motor, Pump
After-sales Service Provided
Engineers available to service machinery overseas
Raw material
Waste Paper
Applicable Industries
Manufacturing Plant
Showroom Location
None
Marketing Type
Other
Warranty of core components
1 Year
Weight
1600 kg

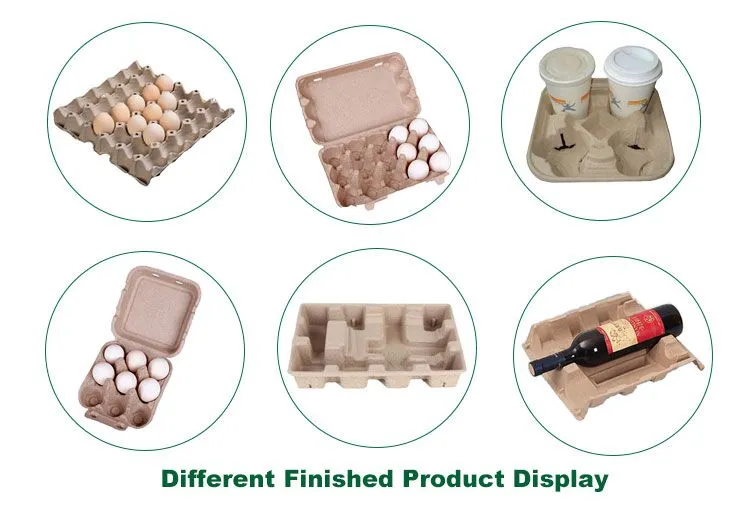

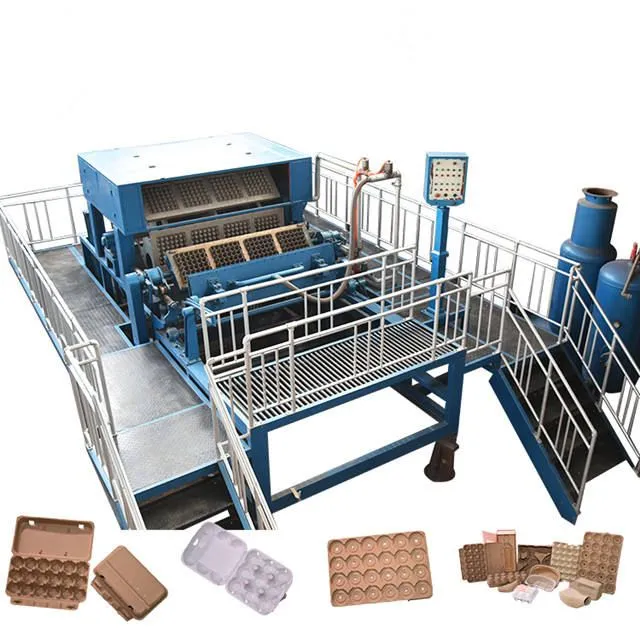

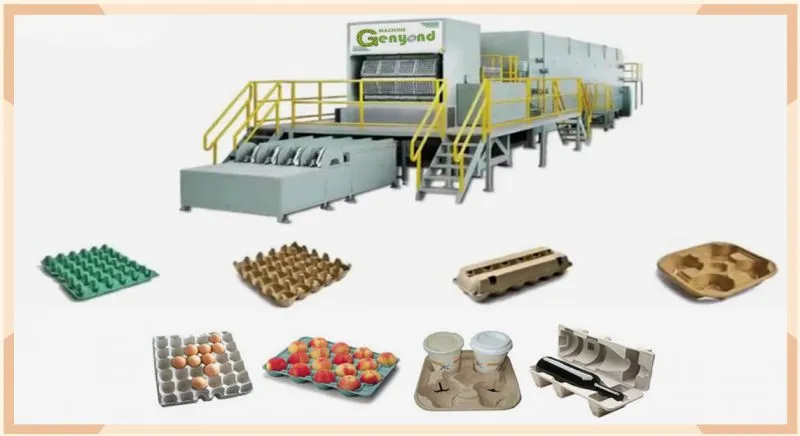

This automatic egg tray machine is suitable for every kind of scale production plants. It can produce egg tray, egg boxes and other shapes of tray. Its output is 1000 - 6000pcs/h for 30 cavity trays, so it can allow workers to work three shifts per day. The product can be recycled, is a new green packaging, which is not only the development of environment-friendly enterprise, also long get rich choice.

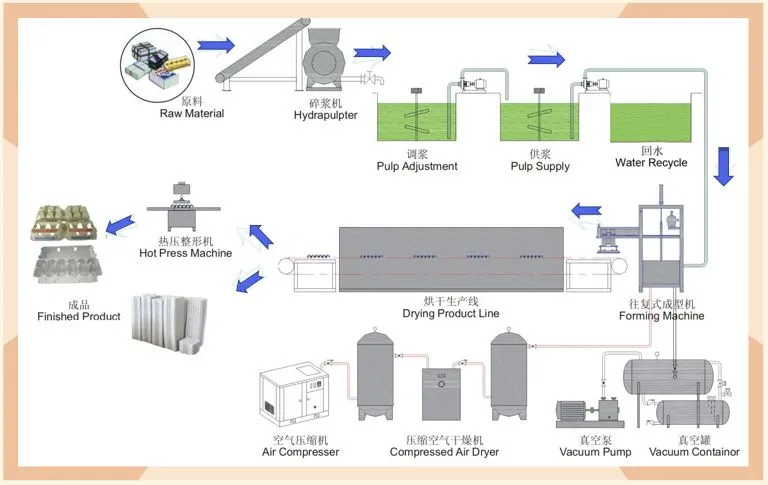

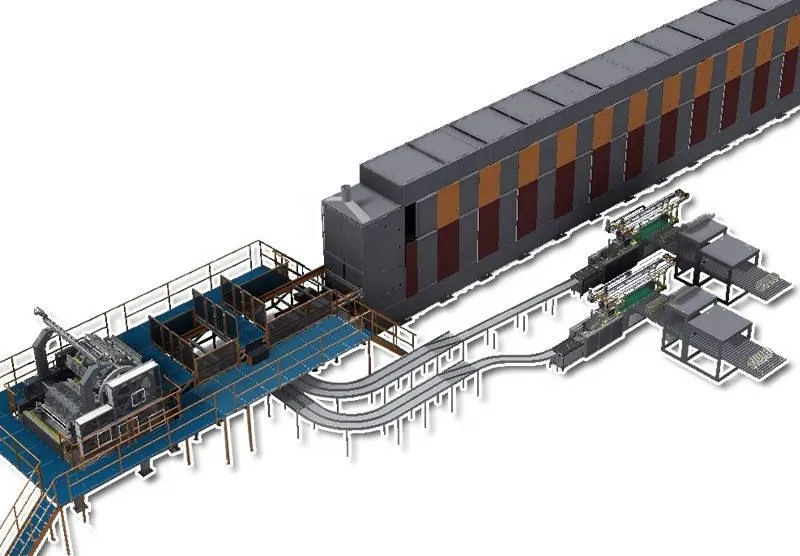

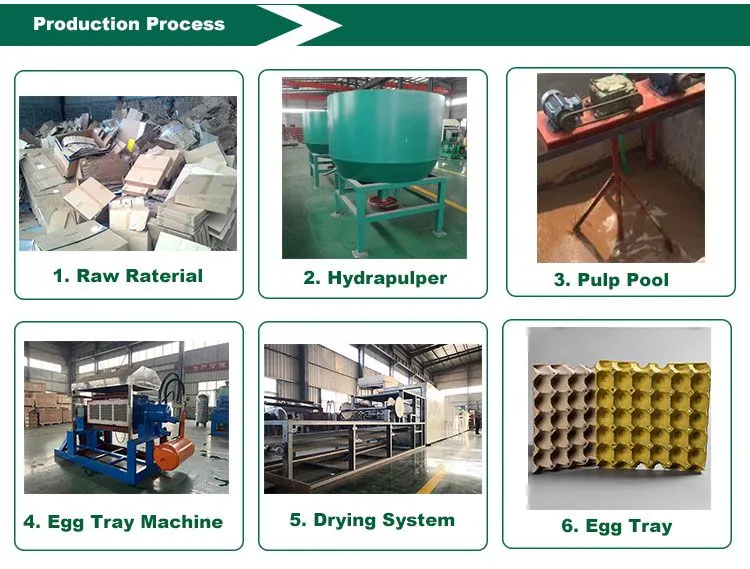

Our used paper Egg Tray Machine price product line has four parts paper Pulping system,forming system,drying line and automatic counting.
1. pulping system :
Put the waster paper in to the hydrapulper, the paper and water will mix in hydrapulper ,then go to the refiner machine, refiner machine make the pulp more small egg tray moulding machine/egg tray production line
and uniform, then the pulp pump absorb the pulp to the pulp pool. after the second mix in the pulp pool, the pulp will go to the form machine pulp tank.
1. pulping system :
Put the waster paper in to the hydrapulper, the paper and water will mix in hydrapulper ,then go to the refiner machine, refiner machine make the pulp more small egg tray moulding machine/egg tray production line
and uniform, then the pulp pump absorb the pulp to the pulp pool. after the second mix in the pulp pool, the pulp will go to the form machine pulp tank.

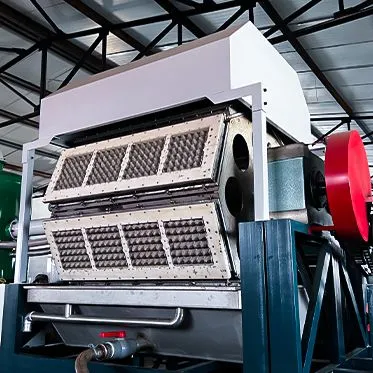

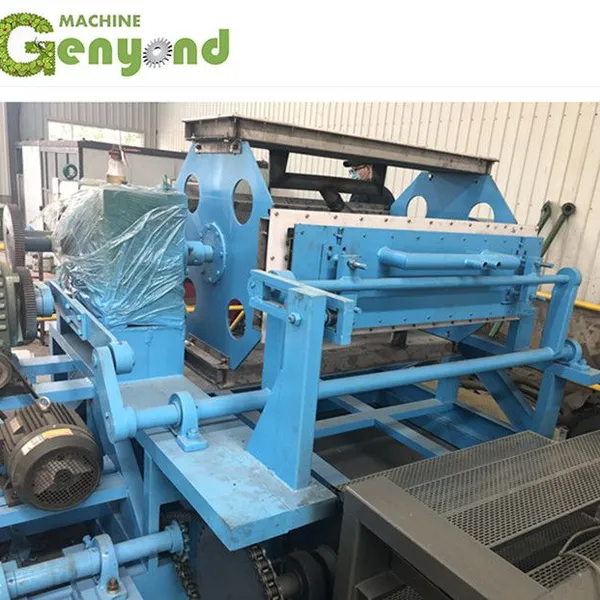

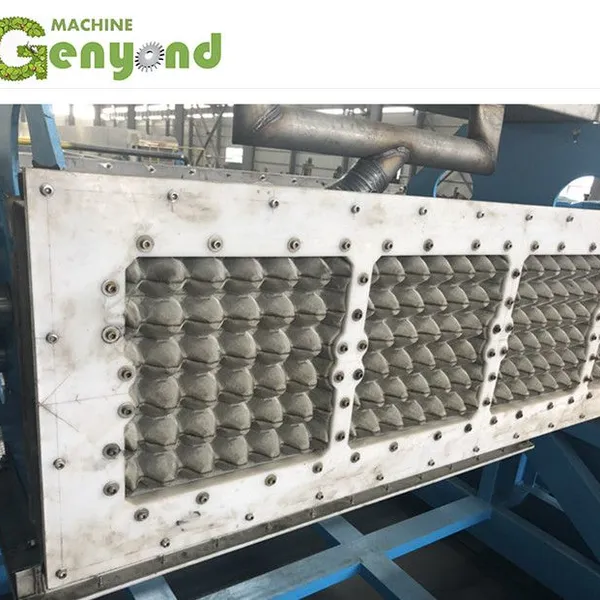

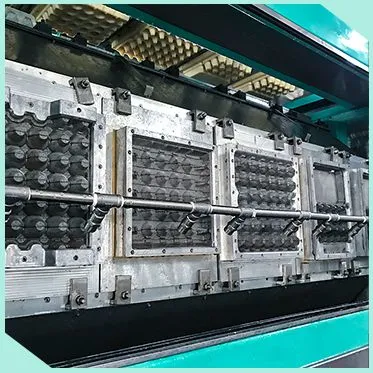

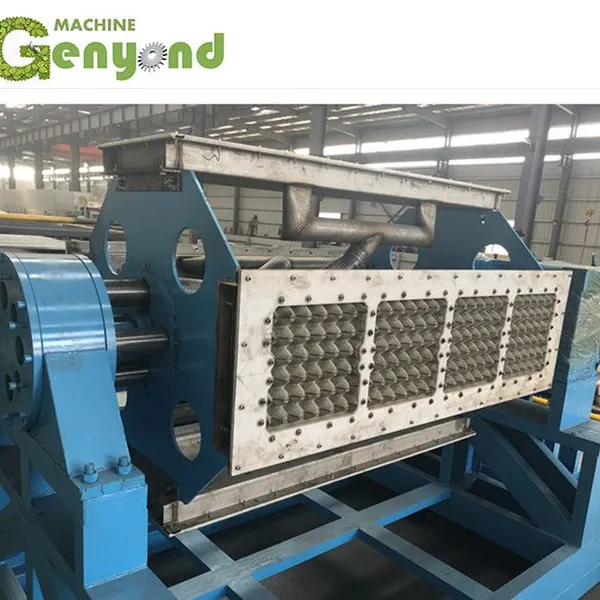

2. forming system
The vacuum pump will give the vacuum to make the forming mould absorb the pulp from the pulp tank.there is a PLC control the pulp absorb time,the finished egg tray moulding machine/egg tray production line
product will be shaped on the forming mould, then the transfer mould transfer the products to the drying line, the air compressor will give the air to blow the products, then egg tray moulding machine/egg tray production line
the products will be fall from the mould. the products delivery to the drying line automatic. the water will be go back to the
water pool. will be recycle
The vacuum pump will give the vacuum to make the forming mould absorb the pulp from the pulp tank.there is a PLC control the pulp absorb time,the finished egg tray moulding machine/egg tray production line
product will be shaped on the forming mould, then the transfer mould transfer the products to the drying line, the air compressor will give the air to blow the products, then egg tray moulding machine/egg tray production line
the products will be fall from the mould. the products delivery to the drying line automatic. the water will be go back to the
water pool. will be recycle

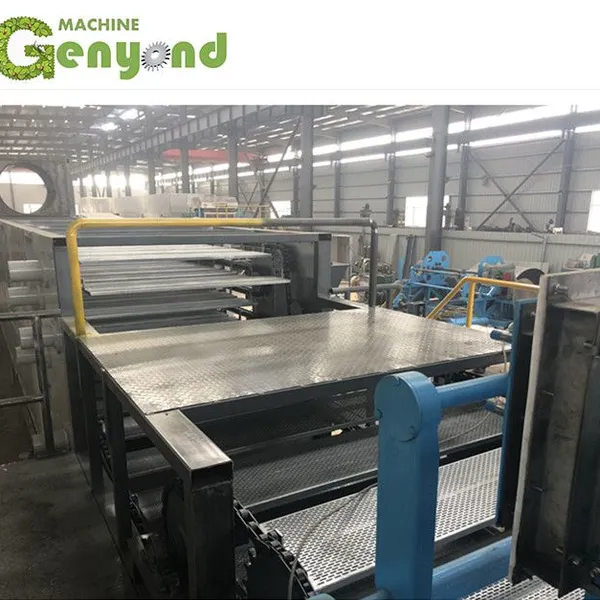

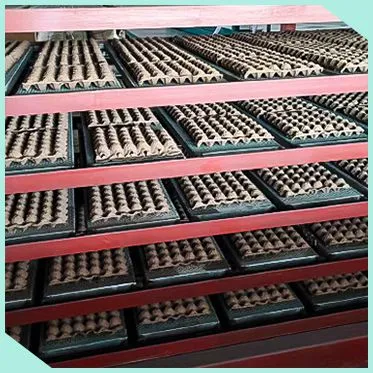

.3. drying system (can use gas,dissel,coal on the drying line)
There are burners and blowers on the drying line. burner give the hot power and the blower increase it, there will be hot air
mouth in the drying line also blow the hot air. the drying line is protect by the insulation board. the degree can reach 200 degree.
There are burners and blowers on the drying line. burner give the hot power and the blower increase it, there will be hot air
mouth in the drying line also blow the hot air. the drying line is protect by the insulation board. the degree can reach 200 degree.
4. automatic counting:
After drying line, the egg trays go to the automatic counting and stacking system, you can preset the quantity of one pile, such as 100pcs or 200pcs.egg tray moulding machine/egg tray production line when the quantity ok, will be alarm. the products stacked at the same time. you can packaged them directly.
After drying line, the egg trays go to the automatic counting and stacking system, you can preset the quantity of one pile, such as 100pcs or 200pcs.egg tray moulding machine/egg tray production line when the quantity ok, will be alarm. the products stacked at the same time. you can packaged them directly.
