Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine

Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine thumbnail-1
Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine thumbnail-2
Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine thumbnail-3
Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine thumbnail-4
Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine thumbnail-5
Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine thumbnail-6
Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine photo-1
Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine photo-2
Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine photo-3
Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine photo-4
Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine photo-5
Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine photo-6
US$ 5000.00 1 - 9 Set
US$ 4000.00 ≥10 Set
Key Specifications
Get Latest Price
type:
Meat Ball
application:
Meat Processing
automatic grade:
Semi-Automatic
Contact Supplier Request Quote Chat Now
Zhangjiagang Genyond Machine Co Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
type Meat Ball
application Meat Processing
automatic grade Semi-Automatic
production capacity 200-500kg/h
place of origin Shanghai, China
brand name GY
voltage 220v/380v
power(w) 1.5kw
dimension(l*w*h) 1100*1500*2100mm
weight 7000 KG
warranty 1 Year
machinery test report Provided
video outgoing-inspection Provided
core components Bearing, Motor, Gear, Gearbox
key selling points Automatic
After-sales Service Provided Engineers available to service machinery overseas
Material 304 Stainless Steel
Product name Automatic Meatball Making Machine
Function Multifunction
Capacity 100~500kg/h
Usage Automatic Meat Processing
Feature Low Energy High Speed
MOQ 1 Set
Raw material Pig Meat
After Warranty Service Field maintenance and repair service
Applicable Industries Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops
Showroom Location None
Condition New
Marketing Type Ordinary Product
Warranty of core components 1.5 year

Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine

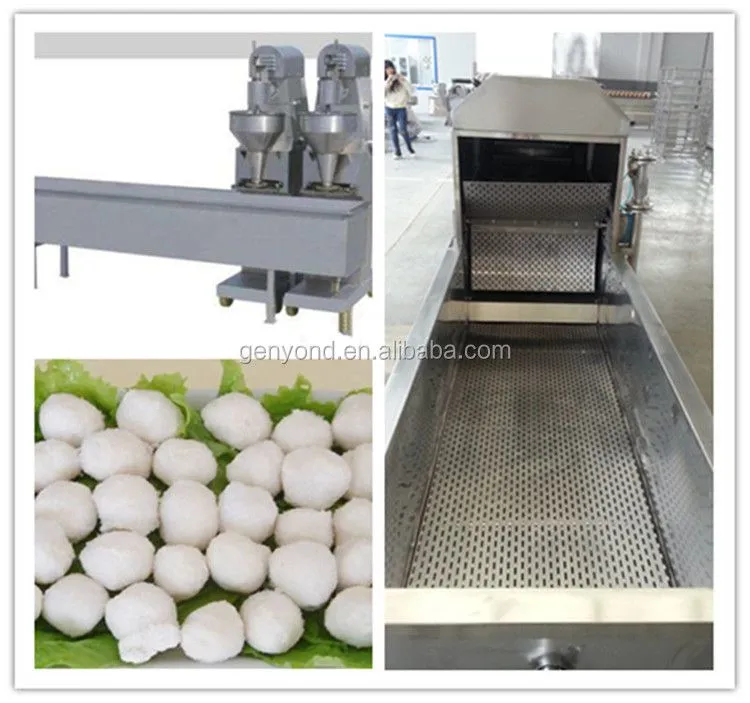

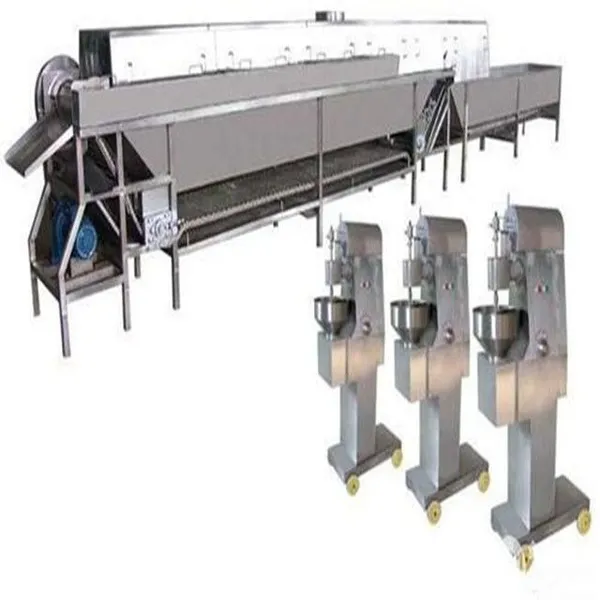

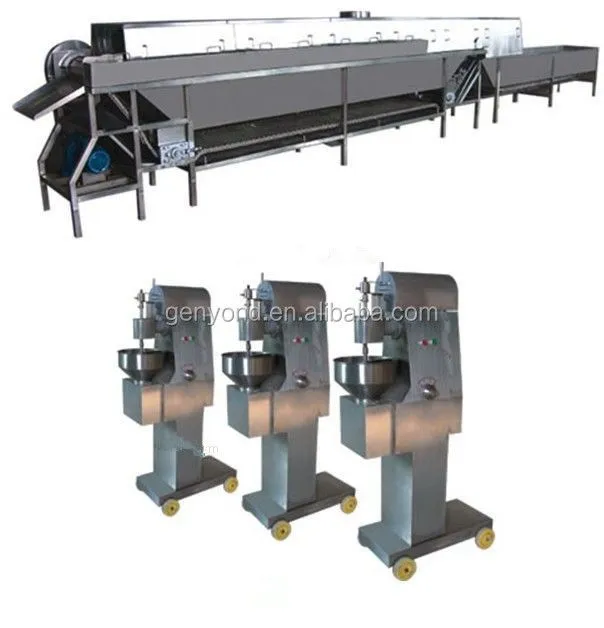

This good quality meatball production line for sale is especially designed for large  meatball manufacturers. It can boil and cool various meatballs including pork balls, fish balls, vegetable balls etc.



Molding groove and cooking tank of water heated by the steam pipe between the two tank water temperature control by regulating the steam converter with high temperatureand pressure valve, forming tank water temperature about 75 degrees, cooking trough the water temperature is

90 degrees. Forming tank of water formed by the hot water circulation pump flow, flow out of the meatballs from the Meatball Machine into the water after the end of the molding groove, meatballs flow speed to control this flow process through the control valve controlling water flow rate purpose of technology to make the meatballs to achieve the desired forming.



Formed fish ball need the digester tank for further cooking, then move to the end of the cooking groove by dial plate.

Different kinds ofporkball will need to be cooked for different time , and controlled by the regulating the speed of the dial plate.



Through the chain of transmission to the cooling tank pork balls to be rapidly cooled in the cooling tank, cooling water tank is open,that is, into the cold water and the overflow of hot water cooling tank water temperature

is always 20 degrees -25 degrees.

Frozen workshop hanging ice frozen meatballs directly into the cooling tank cooling.



Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making MachineFactory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making MachineFactory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine

Features:

1. The whole line is made of SUS 304 stainless steel.

2. The convey is drive by chain.

3. Sectional type automatic temperature control.

4. Second time screening function.

5. Adjustable boiling speed and water speed.

6. High safety and easy operation



Equipment list:

1. Meatballs molding groove

2. Cooking groove

3. Colding groove

4. The steam piping and water circulation system

5. Electrical control system

6. Tank insulation solutions

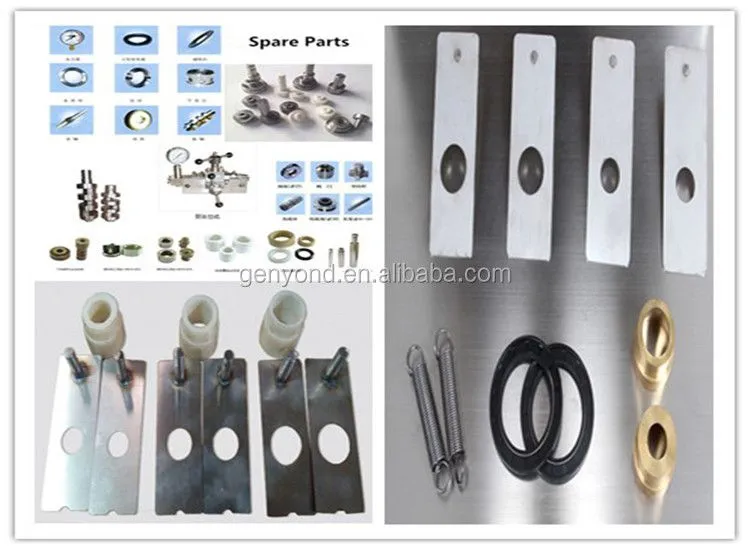

7. Other accessories

  (1) Screen cover

  (2) Water drain valve

  (3) Cooling tank



 Main parameter:

Model

RW-2

RW-4

RW-6

RW-8

Power(kw)

1.65

2.05

3.3

3.3

Meatball machine

2

4

6

8

Material

Stainless stell

Capacity(ton)

2-4

4-6

6-10

14-16

Voltage

380V / 50HZ

Frequency

Variable frequency infinitely adjustable-speed / PLC control

External size(mm)

5500*560*1000

9500*560*1200

135000*760*1250

17500*760*1250



 Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine

Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine

About US

GENYOND MACHINERY INDUSTRIAL GROUP

It has 6 factories in China for food machine and packing machine.

Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd

Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd

Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery



Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.

Genyond machine has more than 100 engineers for the installation of oversea projects.



You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.

A satisfying project will be given; A long-term cooperation will come.

Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine



Factory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making MachineFactory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making MachineFactory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making MachineFactory Genyond High Speed Fish Meatball Forming Cooking Processing Equipment Making Machine
