Working principle:

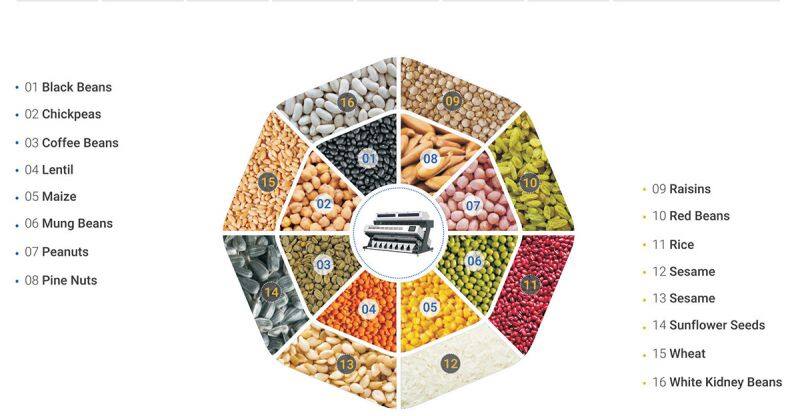

Color sorter can separate bad material of rice, grain, beans and nuts by slightly color difference, color of moldy food is different, so color sorter can remove them and safeguard the food security, it can also used to remove small stone, impurity of food, recently shape sorting is also used for food classification.

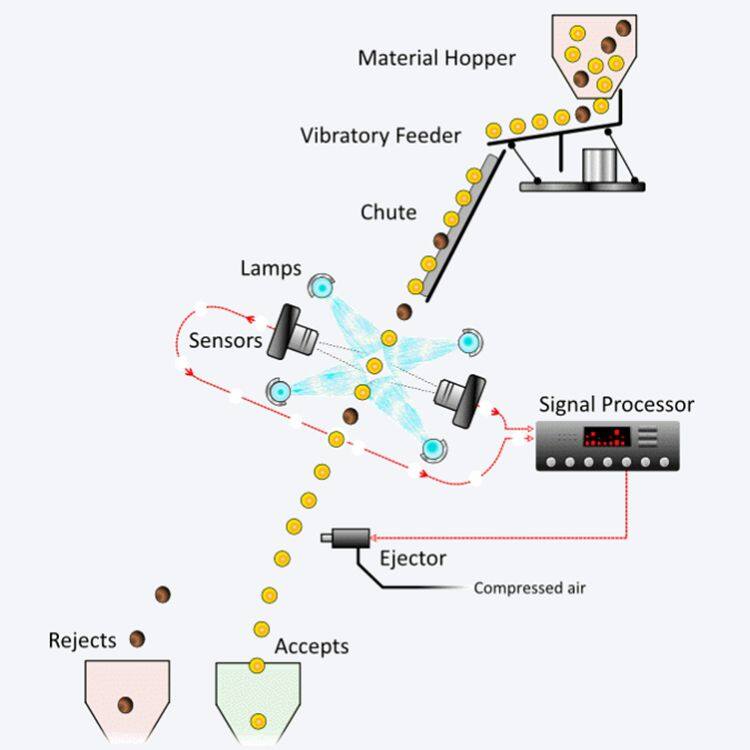

High speed CCD camera scans objects that fall from vibrating chutes, ejectors will blow away the material with different color through compressed air, optimized algorithm is the core technology of color sorter, our machine can also reject material by only the photo, it is so efficient for changeover.
to the difference of material size, weight or contour. This machine USES the positive pressure way, USES the airflow and the vibration friction to produce the material the synthesis action, the material which the proportion is large settles to the bottom layer, through the screen surface vibration friction to move upward, the material which the proportion is small by the airflow action is suspended in the material layer the surface to flow downward, in order to achieve the separation according to the proportion. It can effectively remove the impurities in materials, such as mildew and spoilage grains, worm-eaten grains, black powdery meal grains, chaff grains, large and small chaff, dust, etc.
2. The feeding hopper is located under the machine, which is more convenient for feeding with the elevator; Simple operation of inlet and outlet baffle.
3. Air separation, screening, specific gravity selection, multiple screening, higher precision.
4. suitable for a variety of materials, agriculture, animal husbandry, forest animal husbandry, seed industry and so on.
5. the whole machine has the characteristics of simple structure, flexible operation, low power consumption, smooth operation, strong applicability, etc., the user can choose to replace the screen and weight screening screen to screen different materials, so as to achieve simple classification and achieve a multi-purpose machine.

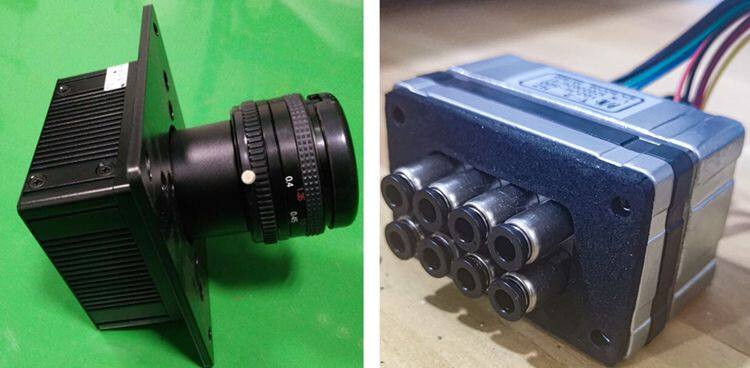

Nikon colorful CCD camera Heavy duty rejector with long lifetime

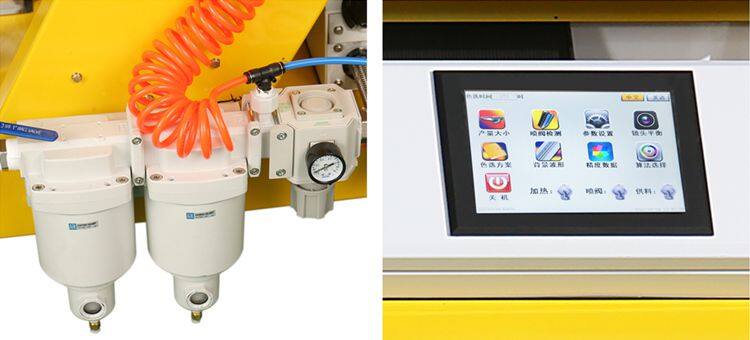

ARK filter Touch screen with synchronization system for easy adjust

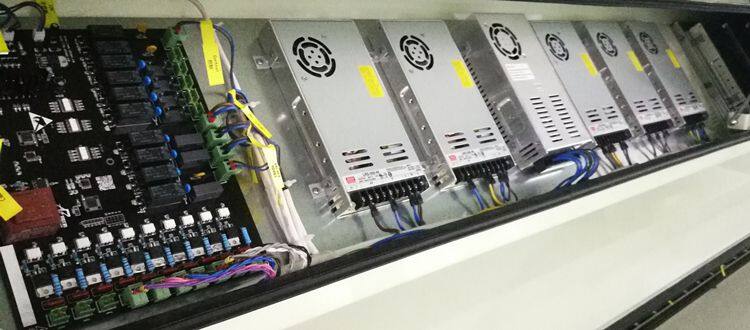

MeanWell power supply

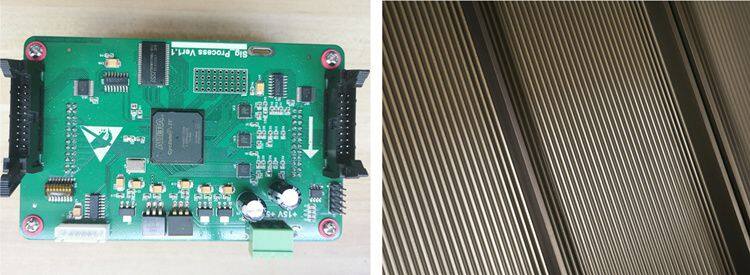

USA chip 332MM wide chute

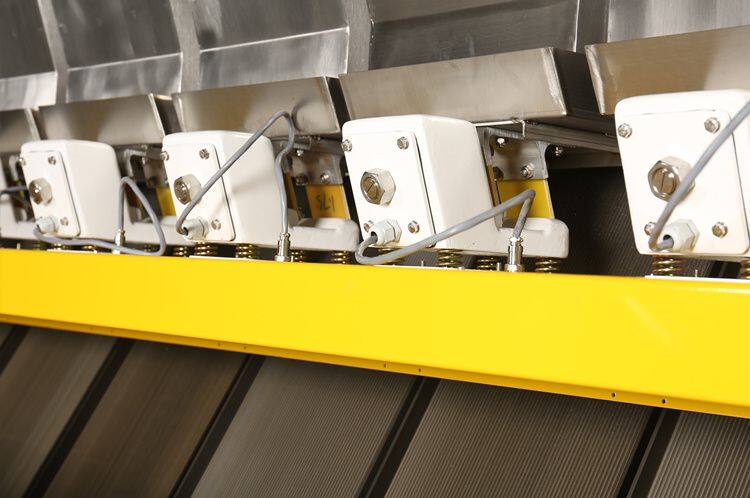

Stable vibrator
| Model | RC3-64X | RC4-64X | RC5-64X | RC6-64X | RC7-64X | RC10-64X |
| Throughput(T/H) | 1.5-9 | 12-Feb | 2.5-15 | 18-Mar | 3.5-21 | 30-May |
| Accuracy(%) | ≥99.9 | ≥99.9 | ≥99.9 | ≥99.9 | ≥99.9 | ≥99.9 |
| Optimal Reject Rate | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 |
| Weight(KG) | 800 | 1000 | 1100 | 1350 | 1450 | 1750 |
| Power(KW) | 0.6-0.9 | 0.7-1.0 | 0.8-1.1 | 1.1-1.4 | 1.2-1.9 | 1.4-2.3 |
| Dimension | 1510*1876*1850 | 1510*2192*1850 | 1510*2558*1850 | 1510*2905*1850 | 1510*3245*1850 | 1500*4320*1850 |
| (L×W×H)(MM) | ||||||
| Air Pressure(MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Air Consumption(m³/min) | 1.8 | 2.4 | 3 | 4 | 5.5 | 9 |
| Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
