Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler

Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler thumbnail-1
Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler thumbnail-2
Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler thumbnail-3
Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler thumbnail-4
Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler thumbnail-5
Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler thumbnail-6
Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler photo-1

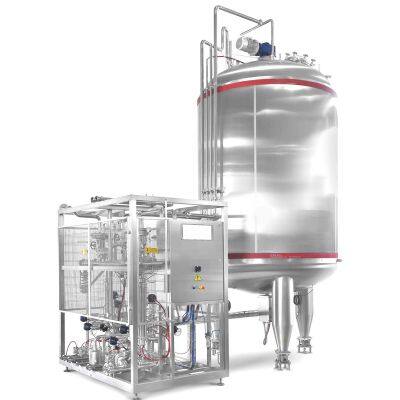

Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler photo-2

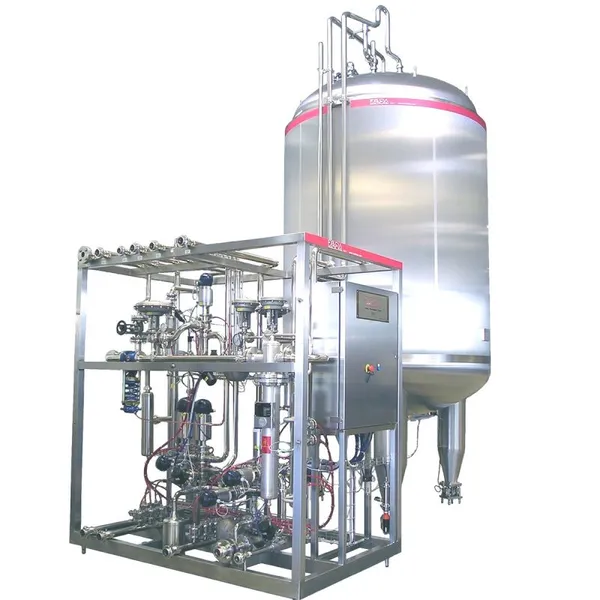

Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler photo-3

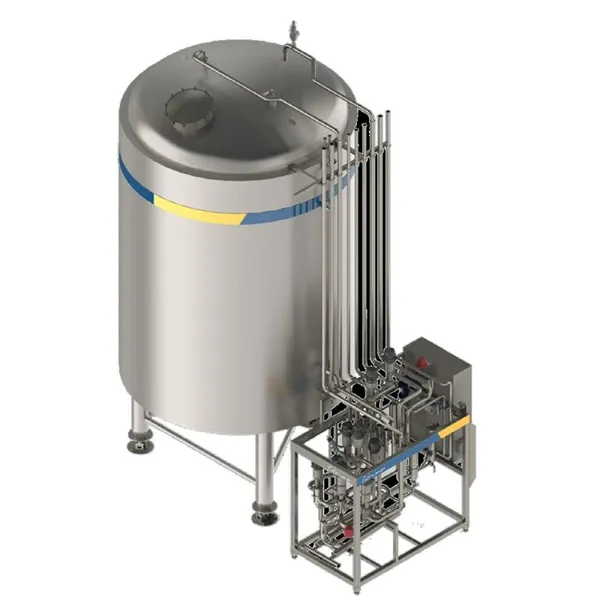

Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler photo-4

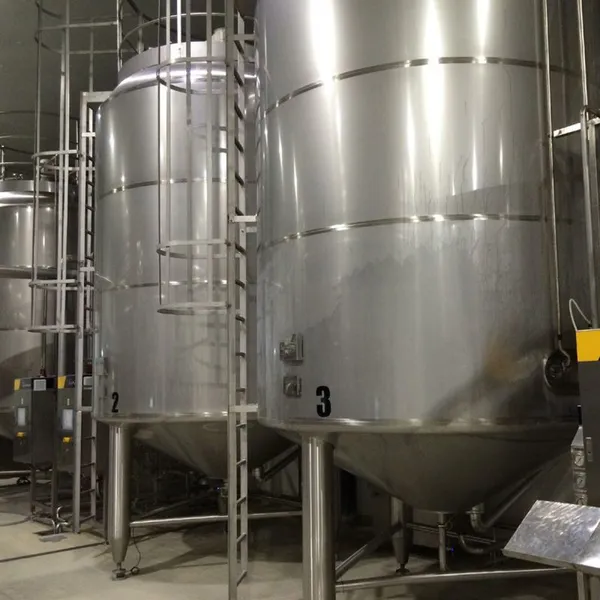

Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler photo-5

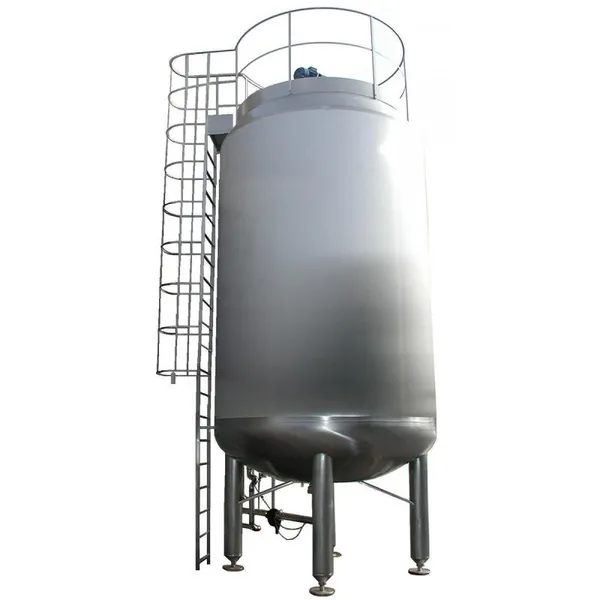

Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler photo-6
US$ 39900.00 ≥1 Set
Key Specifications
Get Latest Price
Condition:
New
processing:
Storage Tank
video outgoing-inspection:
Provided
Contact Supplier Request Quote Chat Now
Zhangjiagang Genyond Machine Co Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
processing Storage Tank
video outgoing-inspection Provided
machinery test report Provided
core components PLC, Motor, Pressure Vessel
place of origin China
processing types Milk
weight 500 KG
warranty 2 Years
Application aseptic buffer tank
Material SS316
advantages Aseptic
Capacity 2500-10000L
Applicable Industries Food & Beverage Factory
Showroom Location None
Marketing Type Ordinary Product
Warranty of core components 1 Year
Application
The aseptic buffer tanks are mainly used for storage and buffering liquid food and beverage(milk and dairy, plant-based drinks, NFC juice, prepared food) to maintain the sterilized products under condition of total sterility, waiting for the aseptic filling. The tanks system can be integrated into a full aseptic line or used in a separate unit for receiving all ultra-high temperature sterilized liquid aseptic products to keep the product of high quality and reduce the loss of nutrients.

The tank is suitable for storing the products with high or low viscosity, with or without fibers, with smaller or bigger particles, and it can also be equipped with a special agitator(with aseptic barriers) to make sure the material is in homogeneity after a long time storage.
The aseptic tank system is composed of tank body, electronic control cabinet, sterile air pipeline system, clean steam pipeline system, tank instrumentation(angle seat valves, mix proof valves, sensors), agitators, etc.
Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler
Aseptic tank figure 11
Aseptic Storage Buffer Tank for Uht Milk With Aseptic Fiiler

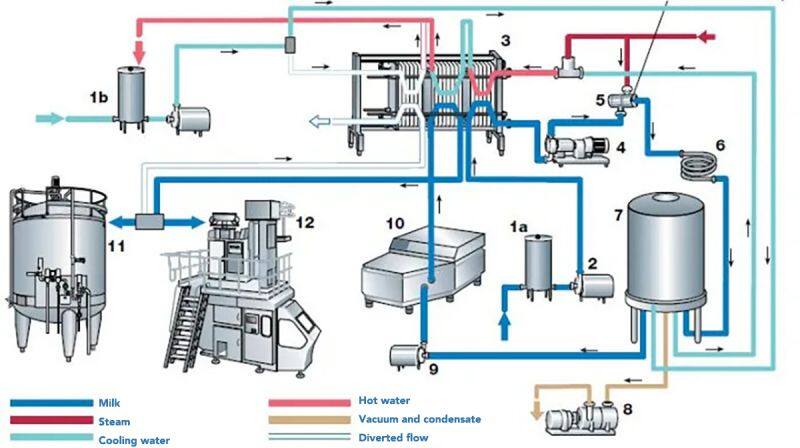

  Balance tank milk 5 Steam injection head 10 Aseptic homogeniser
1b Balance tank watera  6 Halding tube 11 Aseptic tank
2 Feed pump  7 Expansion chamber 12 Aseptic filling
3 Plate heat exchanger 8 Vacuum pump
4 Positive pump 9 Centrifugal pump
Specification



Model Volume Size Power Steam(SIP) Cooling Water(SIP) Compressed Air(SIP) CIP Water Flowrate
TKL-5 5000L φ3800*3000mm 2.1KW 200KG/H 2500L/H 20M^3/H 20,000L/H
TKL-8 8000L φ3900*3800mm 3.2KW 270KG/H 3000L/H 27M^3/H 20,000L/H
TKL-10 10000L φ3900*4400mm 3.2KW 340KG/H 4000L/H 34M^3/H 20,000L/H
TKL-15 15000L φ4200*4900mm 4KW 525KG/H 5500L/H 50M^3/H 20,000L/H
TKL-20 20000L φ4300*5800mm 5KW 670KG/H 6500L/H 67M^3/H 20,000L/H
TKL-25 25000L φ4600*6100mm 6.5KW 850KG/H 8500L/H 85M^3/H 20,000L/H
TKL-30 30000L φ4700*6900mm 8.5KW 1000KG/H 10000L/H 100M^3/H 20,000L/H

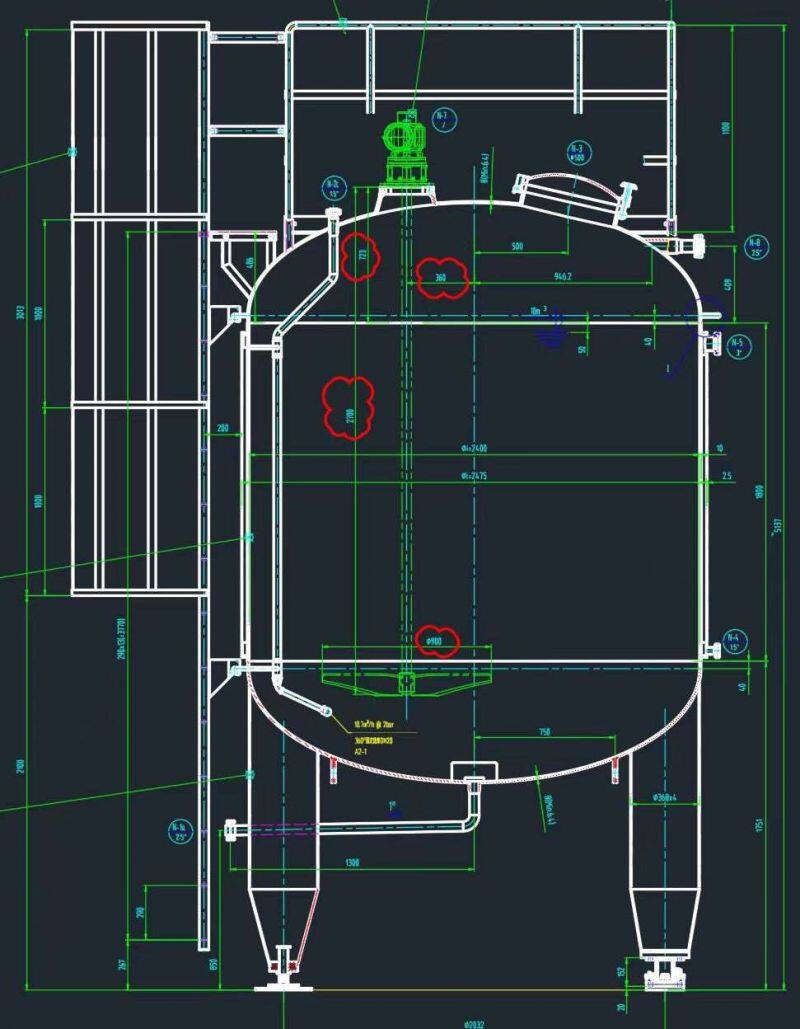

Dimension drawing

1.1 18.5 M3 aseptic tank

1.2. Tank design parameters:
Design pressure: -0.1~0.35MPa
Design temperature: 148℃
Jacket design temperature: Room temperature℃

Medium in the tank: milky white
1.3. Tank parameters:
• 2.7m3 sterile tank
Full volume: 21700 liters (effective volume 18500 liters)

Total height: about 5491mm
Liner diameter: 2900mm Outer diameter: 3000mm
Inner cylinder of the tank: thickness 10mm 316L;

inner surface, the weld is pickled and polished to 0.6um.
Jacket: thickness 2.5mm, 2B board, domestic SUS304; the weld is pickled and polished to 0.8um. Upper and lower butterfly head: thickness 14 mm 316L; inner surface, the weld is pickled and polished to 0.4um. The cylinder body is laser welded corrugated jacket, the bottom head is half-pipe jacket, and the cylinder body and the top and bottom heads are insulated with rock wool.
Stirring: two-blade impeller, two-layer blades, cleaning nozzle at the blades, without bottom auxiliary support, sterile machine sealed with steam barrier, solid stirring shaft, central stirring (stirring inverter), stirring full polishing surface finish 0.4um.
For cream stirring, if a rotor pump, cooling water buffer tank, etc. are required, Party A shall provide it; Party B shall be responsible for controlling the system operation.
• Other materials:
Domestic 304 materials such as outriggers
Top manhole DN400.Material: 304L each interface, 3 lugs.Material: 304 stainless steel maintenance platform, ladder.Material: 304
• Other accessories:
3 adjustable feet (one of the feet is equipped with a sensor, supplier: Mettler Toledo)
1.5. Energy consumption
Steam (pre-sterilization): 2.7 kg, 380kg, main circuit design 2,000 kg/h steam (steam barrier) 1.0 kg, 25 kg/h
Cooling water: room temperature, 1~3 kg, 4.0m3, main circuit design 10 m3/h
Sanitary air: 6 kg 190 Nm3/h (cooling) instrument air: 6 kg 50 liters/min
Control electric cabinet: 4.0kW
1.6. Cleaning station requirements
Outlet pressure: 4.5kg
Flow rate: 18000 liters/hour
1.7. Control system:
The central control system uses Siemens TP1200 touch screen and Siemens 300PLC to reserve 10% of the I/O points.Integrated valve island.
