Mini Laboratory Spray Dryer Machine
US$ 50000.00
≥1 Set
Key Specifications
Get Latest Price
type:
Spray Drying Equipment
application:
Food Processing
place of origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Scale Mini 2L Lab Spray Dryer MachineUS$ 4500.00MOQ: 1 Set -
Food Tunnel Dryer for Drying Fruit and VegetableUS$ 45000.00 - 46000.00MOQ: 1 Set
-
Freeze Dryer Machine Vacuum Freeze Drying MachineUS$ 27500.00MOQ: 1 Set
-
Instant Coffee Powder Making Machine Sell to AfricaUS$ 100000.00MOQ: 1 Box
-
Shanghai Factory High Quality Electric Instant Coffee Powder Production LineUS$ 30000.00MOQ: 1 Set
type
Spray Drying Equipment
application
Food Processing
place of origin
Shanghai, China
brand name
genyond
voltage
220V
power(w)
1.5
dimension(l*w*h)
1380*1200*2000
warranty
one year
weight (kg)
5000
After-sales Service Provided
Engineers available to service machinery overseas
Product descriptions from the supplier
Product Overview
Product OverviewThe small spray dryer is suitable for the production of micro-particle powder in universities, research institutes and food and pharmaceutical chemical enterprises. It has wide applicability to all solutions such as emulsions and suspensions. It is suitable for the drying of heat sensitive materials such as biological products. Biological pesticides, enzyme preparations, etc. Since the ejected material is subjected to high temperature and is instantaneously heated only when sprayed into a mist, these active materials maintain their active ingredients after drying.
Specifically used in the following areas: beverages and pigments, milk and egg products, plant and vegetable extracts,
pharmaceutical synthesis, heat sensitive materials, plastic polymers and resin fragrances, blood products, ceramics and
superconducting biochemicals, dyes, soaps and detergents, food additives, oxide bone powder. And tooth powder and so on.
Specifically used in the following areas: beverages and pigments, milk and egg products, plant and vegetable extracts,
pharmaceutical synthesis, heat sensitive materials, plastic polymers and resin fragrances, blood products, ceramics and
superconducting biochemicals, dyes, soaps and detergents, food additives, oxide bone powder. And tooth powder and so on.
Features:
Original imported nozzles with high efficiency.
Color large touch screen operation, automatic control and manual control, Chinese and English panel, parameter LCD display.
Real-time regulation of PID constant temperature control technology, accurate temperature control, heating temperature control accuracy ± 1 ° C.
The spray, drying and collecting device is made of transparent high-quality high-temperature borosilicate glass, and the whole process of spray drying can be seen.
The atomization structure of the two-fluid spray is made of high-precision 316 stainless steel material. The diameter of the
powder spray is normally distributed and the fluidity is good.
The jet is automatically unblocked (through the needle) and the frequency is adjustable. When the nozzle is blocked, it will be automatically cleared to ensure the continuity of the experiment.
The feed amount can be adjusted by the feed peristaltic pump.
Special protection function, the fan does not start, the heater can not start.
Built-in imported oil-free air compressor, the noise is less than 50db.
Equipped with air inlet filter to ensure the sample is pure.
After drying, the granularity is uniform, and more than 95% of the dry powder is in the same granularity.
Color large touch screen operation, automatic control and manual control, Chinese and English panel, parameter LCD display.
Real-time regulation of PID constant temperature control technology, accurate temperature control, heating temperature control accuracy ± 1 ° C.
The spray, drying and collecting device is made of transparent high-quality high-temperature borosilicate glass, and the whole process of spray drying can be seen.
The atomization structure of the two-fluid spray is made of high-precision 316 stainless steel material. The diameter of the
powder spray is normally distributed and the fluidity is good.
The jet is automatically unblocked (through the needle) and the frequency is adjustable. When the nozzle is blocked, it will be automatically cleared to ensure the continuity of the experiment.
The feed amount can be adjusted by the feed peristaltic pump.
Special protection function, the fan does not start, the heater can not start.
Built-in imported oil-free air compressor, the noise is less than 50db.
Equipped with air inlet filter to ensure the sample is pure.
After drying, the granularity is uniform, and more than 95% of the dry powder is in the same granularity.
Technical Parameters:
1 Inlet air temperature control: 30 ~ 300 ° C
2. Outlet temperature control: 30 ~ 150 ° C
3. Evaporation water volume: 1500mL / H ~ 2000ml / h
4. Maximum feed amount: 2000mL/H
5. Minimum feed: 50mL
6. Feeding mode: peristaltic pump adjustment
7. Average drying time: 1.0~1.5S
8. Electric heater power: 3KW AC220V single phase grounding
9. Fan: 0.2KW Maximum air volume 5.6m3/min Maximum wind pressure 1020Pa
10. Air compressor: 0.2KW maximum gas production 4.2 m3/h
11. Compressed air working pressure: 2 ~ 3Bar
12. Equipment dimensions: 1200mm (height) × 650mm (length) × 500mm (width)
13. Nozzle diameter: 1.00mm
14. Equipment weight: 125KG
2. Outlet temperature control: 30 ~ 150 ° C
3. Evaporation water volume: 1500mL / H ~ 2000ml / h
4. Maximum feed amount: 2000mL/H
5. Minimum feed: 50mL
6. Feeding mode: peristaltic pump adjustment
7. Average drying time: 1.0~1.5S
8. Electric heater power: 3KW AC220V single phase grounding
9. Fan: 0.2KW Maximum air volume 5.6m3/min Maximum wind pressure 1020Pa
10. Air compressor: 0.2KW maximum gas production 4.2 m3/h
11. Compressed air working pressure: 2 ~ 3Bar
12. Equipment dimensions: 1200mm (height) × 650mm (length) × 500mm (width)
13. Nozzle diameter: 1.00mm
14. Equipment weight: 125KG

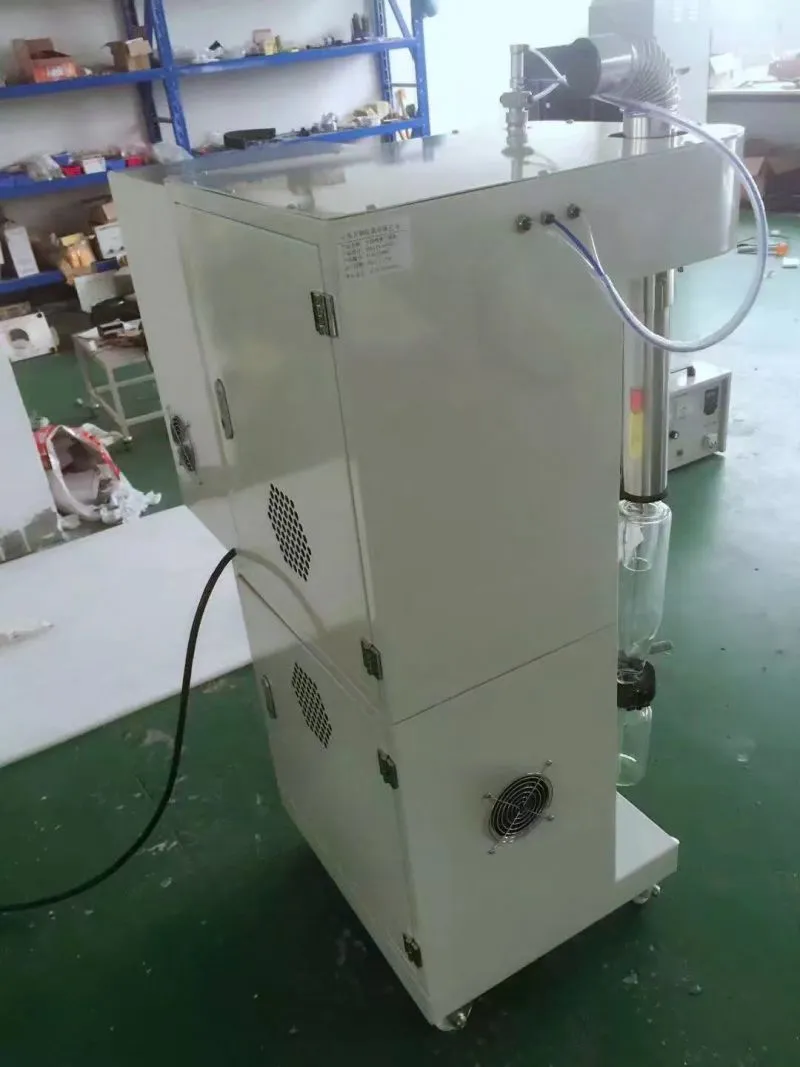

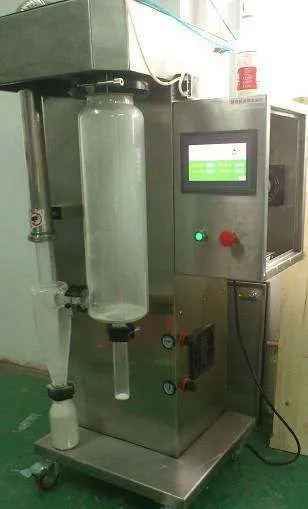

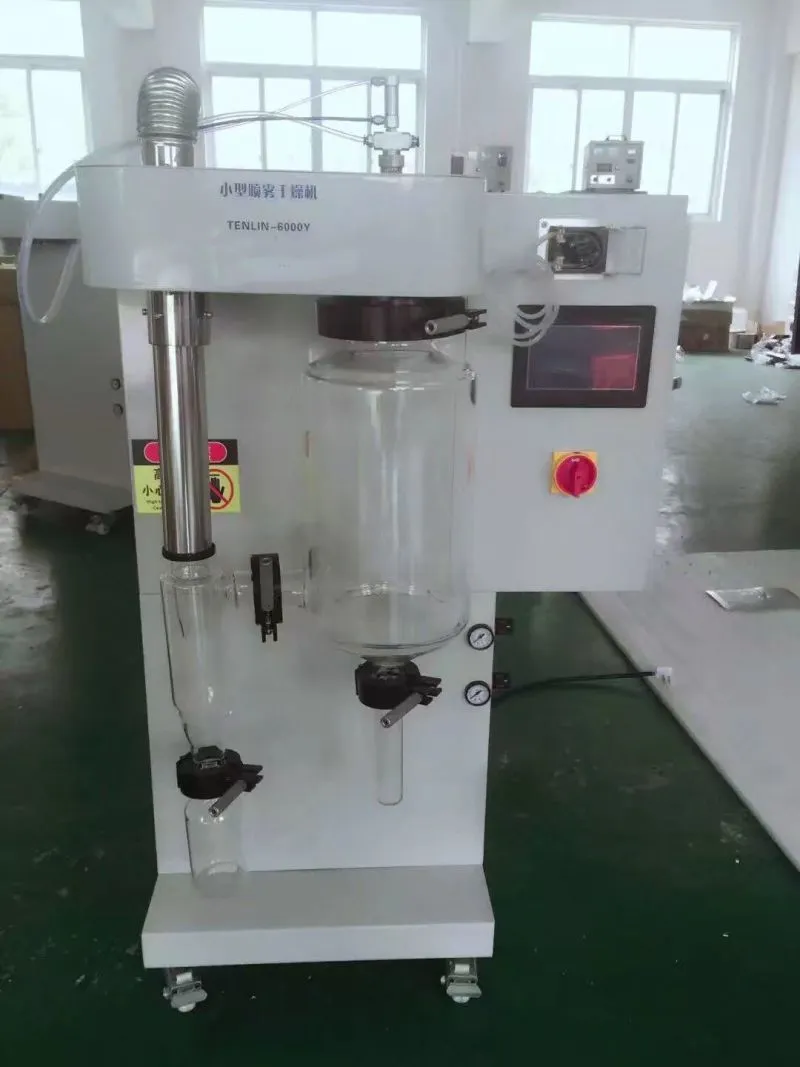

Small spray dryer configuration
1, atomizer; 2, large clamp; 3, tail gas pipe; 4, lock nut; 5, cyclone separator; 6, 1 clamp; 7, collection bottle;
8, large clamp; 9, peristaltic pump; 10, drying room; 11, touch screen; 12, 2 clamp; 13, power switch;
14, feeding tube; 15, 3 clamp; 16, collecting tube
8, large clamp; 9, peristaltic pump; 10, drying room; 11, touch screen; 12, 2 clamp; 13, power switch;
14, feeding tube; 15, 3 clamp; 16, collecting tube
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
