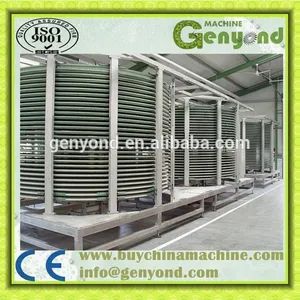

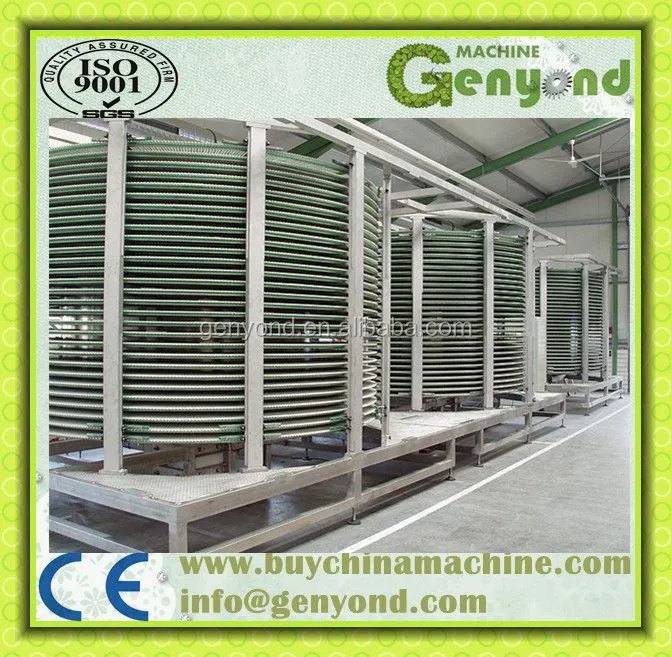

Help CenterFactory IQF Quick Freezing Tunnel Frozen Fruit Vegetable Food Maker Flash Spiral Freezer Equipment Machine in China
Related Products
-
Quick Freeze Machine IQF Spiral Freezer ManufacturesUS$ 65000.00MOQ: 1 Set -
Freezing Machine for Sea Buckthorn Fruit Processing for Branches Vegetable & Fruit MachinesUS$ 70000.00MOQ: 1 Set
-
Quick Freezing Machine for Frozen FoodUS$ 15000.00MOQ: 1 Set
-
Energy-Efficient Low-Cost Cold Storage Room New Solar Powered Copeland Compressor 100mm Panel Engine Motor Bearing for SaleUS$ 7600.00 - 8000.00MOQ: 1 Set
-
Instant Freezer of Fast Freezing Machine for Fish/meat/Seafood/chicken/pastaUS$ 1000 - 50000MOQ: 1 Set
Stainless Steel Refregeration Spiral Freezer for Pizza
Brief Introduction:

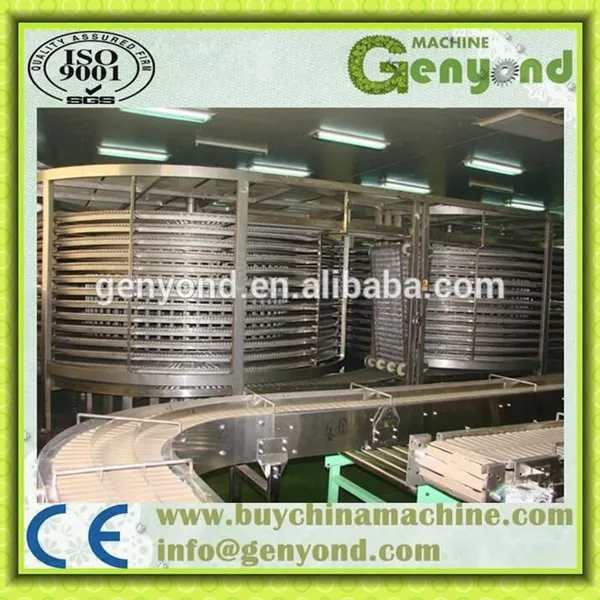

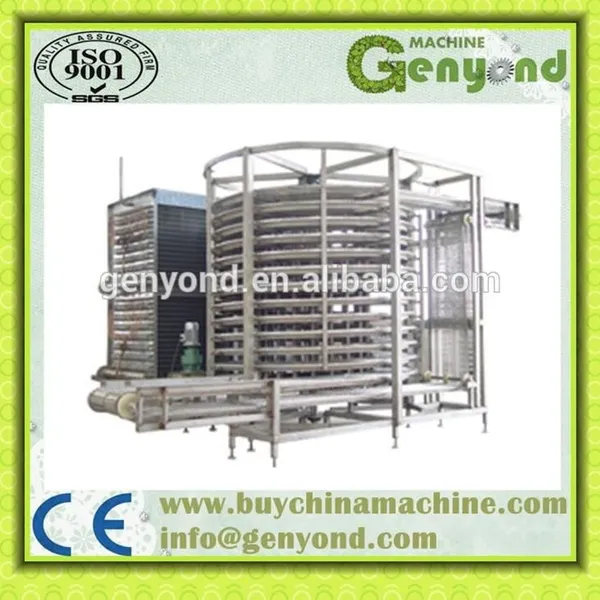

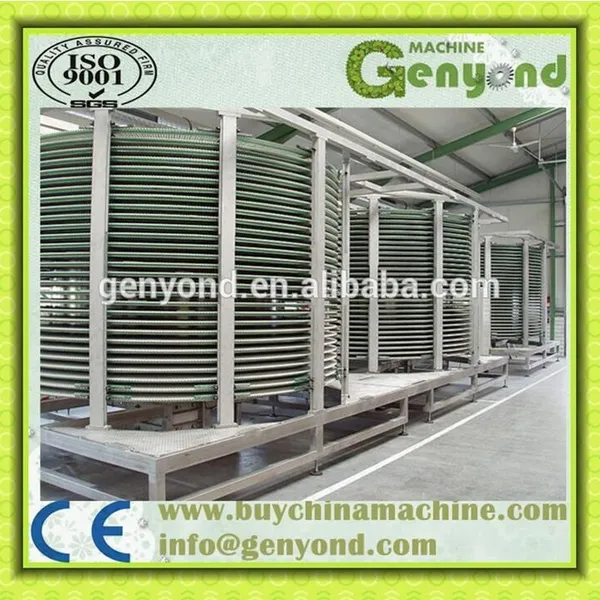

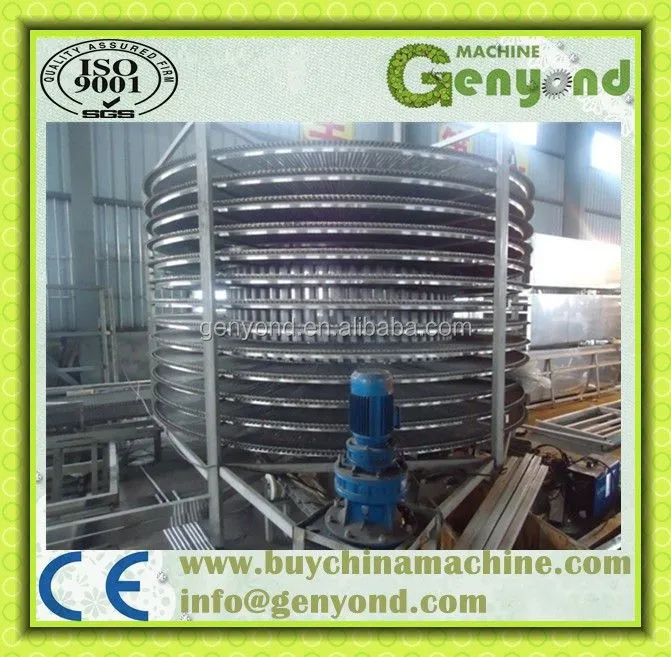

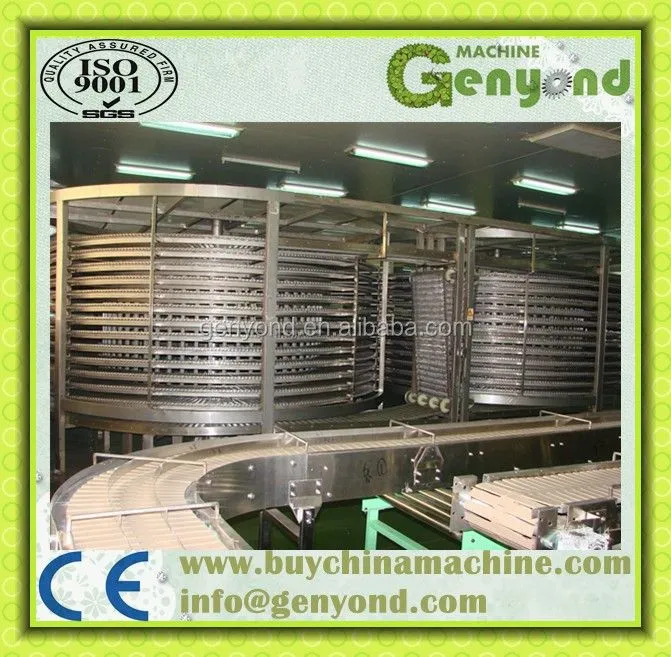

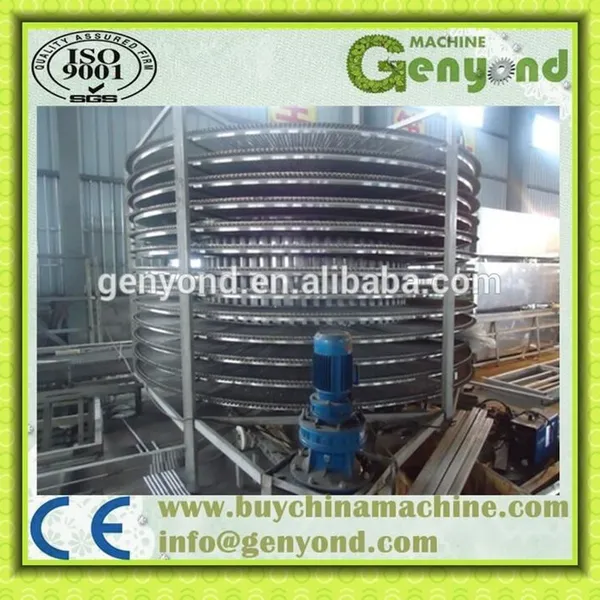

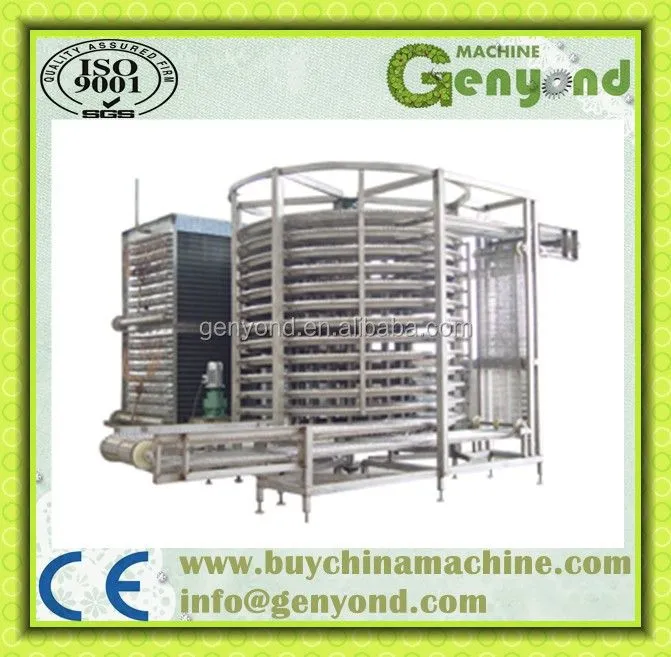

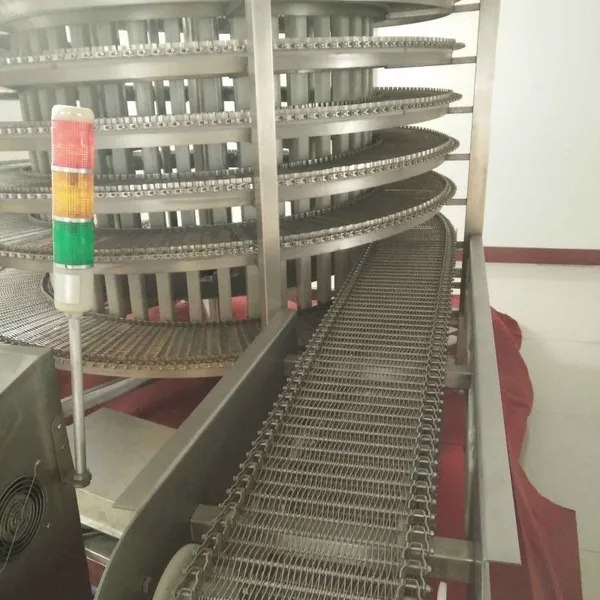

This spiral quick freezing machine is designed and manufactured in accordance with HACCP’s hygienic requirements for food processing equipments. It is suitable for fast freezing granular, diced, sliced food, including scallop, squid, de-shelled shrimp, fillet, etc. The food contact part is of solid stainless steel belt, which allows fast and efficient freezing.
Main Technical Parameter:
|
Item
Model |
Freezing capacity KG/H |
Freezing time min |
Refrigeration consumption kw |
Installed power kw |
Width of Belt m |
Overall dimension L×W×H m |
Circulating temperature in storehouse °C |
|
Single Layer Type |
|||||||
|
GY-100 |
100 |
3-60 |
35 |
10 |
1 |
7×1.5×2.1 |
-36±2 |
|
GY-500 |
300 |
3-60 |
70 |
17 |
1.3 |
10.4×3.0×2.5 |
-36±2 |
|
GY-500 |
500 |
3-60 |
130 |
18 |
1.3 |
12.4×3.6×2.5 |
-36±2 |
|
GY-1000 |
1000 |
3-60 |
186 |
22 |
1.8 |
14.9×3.6×2.5 |
-36±2 |
|
GY-1500 |
1500 |
6-80 |
256 |
25 |
2.5 |
16.9×3.6×2.5 |
-36±2 |
|
Double Layer Type |
|||||||
|
GY-600 |
600 |
3-60 |
91 |
13 |
1.8 |
11.2×4.4×2.3 |
-36±2 |
|
GY-1200 |
1200 |
3-60 |
175 |
20.6 |
2.2 |
16.9×3.6×2.5 |
-36±2 |
|
GY-1500 |
1500 |
3-60 |
225 |
28.4 |
2.2 |
16.9×3.6×2.5 |
-36±2 |
|
GY-2000 |
2000 |
6-80 |
296 |
39.6 |
2.2 |
16.9×3.6×2.5 |
-36±2 |
|
GY-3000 |
3000 |
6-80 |
440 |
40.4 |
3 |
19.9×3.6×2.5 |
-36±2 |
Other Details:
1.Package: wooden cases for sea transportation
2.Delivery time: 30 working days after receiving the deposit
3.Installation : engineers available for installation and training overseas
4.Guarantee : 12 months after it is sent out
Plz feel free to contact me for any further information.
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
